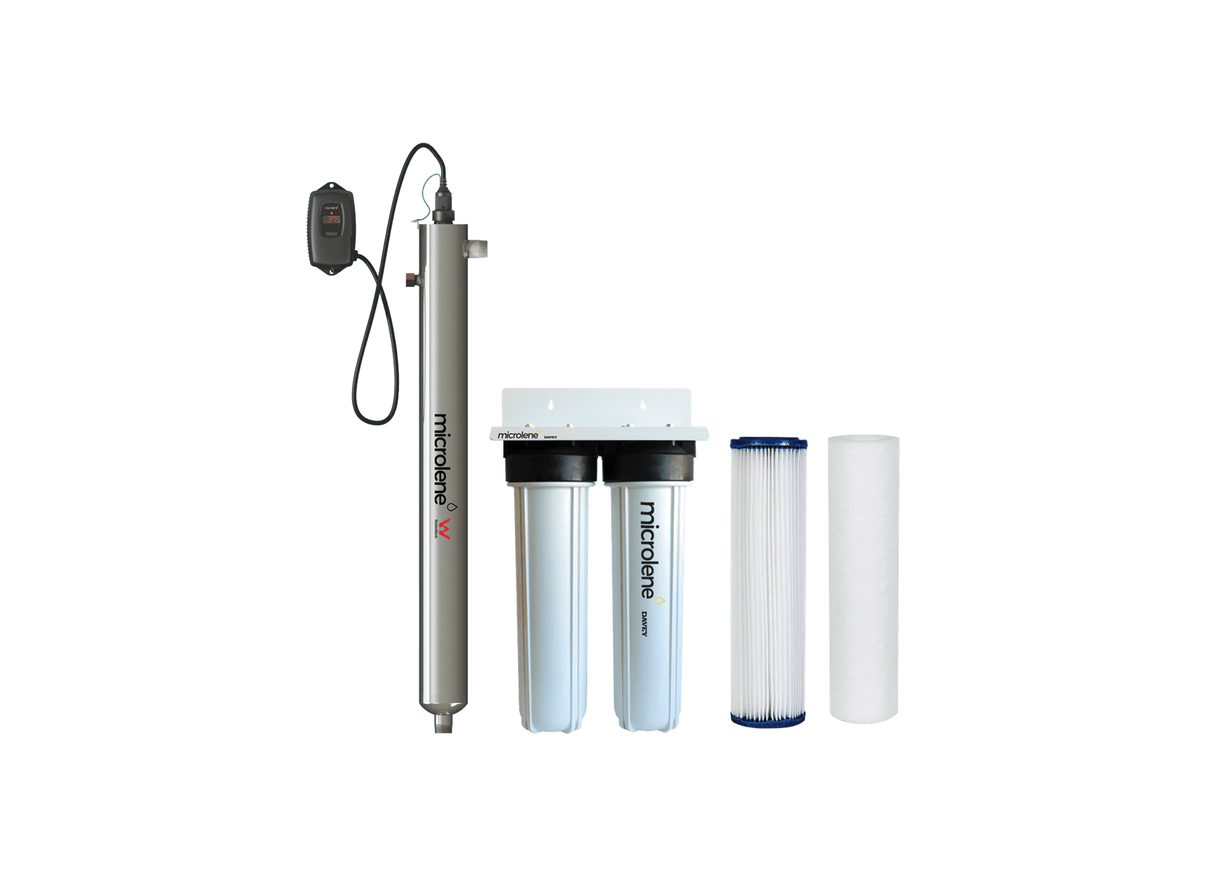

Davey KUV80A Steriflo 20 Inch Jumbo Filter UV Water Filtration System

High-flow water disinfection for large residential properties is the primary role of the KUV80A Davey Steriflo 79 lpm UV Disinfection and Filtration Kit. This system provides a physical treatment process that works without chemicals to neutralize bacteria and viruses. It is used for treating harvested rainwater, groundwater, or municipal water in high-demand environments. The kit includes a large jumbo pre-filtration stage to ensure that particles do not shield micro-organisms from the ultraviolet light. This process maintains the natural taste and odor of the water supply while providing a continuous barrier for the occupants.

The system features a 304 Stainless Steel UV reactor and one 20 inch jumbo filter housing (AS20J). The pre-filtration stage includes one 20 micron pleated filter and one 1 micron polyspun filter. The UV chamber has a diameter of 89 mm and a length of 917 mm. The unit is designed to operate in water temperatures ranging from 0 to 40 degrees Celsius. The system allows for installation in either vertical or horizontal orientations. The total shipping weight for the kit components is approximately 15 kg.

This system operates on a 90-265V 50/60Hz power supply and has a total power consumption of 51W. The internal ultraviolet lamp is rated at 42W. It operates with a maximum current of 1 Amps. It achieves a flow rate of 79 L/Min at a 30mJ/cm2 dosage and 150 L/Min at a 16mJ/cm2 dosage. Filter connections are 25 mm and the UV chamber connection is also 25 mm. The unit is rated for a maximum operating pressure of 860 kPa and requires a minimum operating pressure of 69 kPa.

Electrical components are housed in a splash-proof case with a fully potted ballast. It features an integrated lamp change reminder and a lamp out indicator for operational status monitoring. The internal lamp is specified for a 9,000 hour rated service life. The system includes mounting brackets for installation. High-intensity low-pressure high-output lamp technology is used to generate the 254nm ultraviolet light. The controller dimensions are 172 x 92 x 102 mm. Maintenance is performed through a tool-free design that allows for lamp changes with a quarter-turn.

FEATURES

• 20 inch jumbo filter housing for high-capacity pre-filtration
• 304 Stainless Steel UV reactor chamber for durable service
• Includes 20 micron pleated and 1 micron polyspun filter cartridges
• Integrated lamp change reminder for scheduled maintenance alerts
• Visual lamp out indicator for immediate operational status checks
• Ballast operation indicator allows for easy electrical monitoring
• High-intensity low-pressure high-output ultraviolet lamp technology

Warranty: 10 year chamber warranty, 3 years on electronics, 1 year on lamps and sleeves, and 1 year on filter housings.
