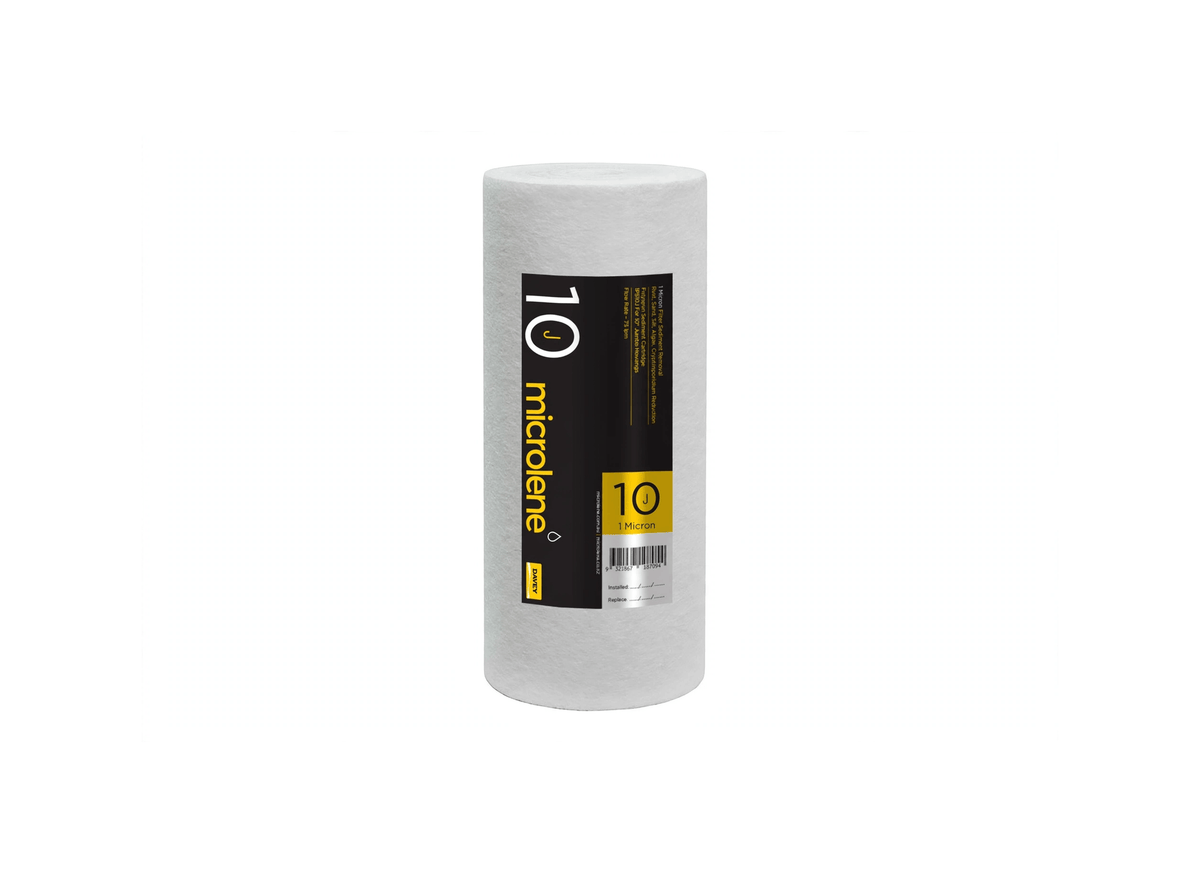

Davey Microlene 1PS10J Jumbo 1 Micron 10" Replacement Water Filter Cartridge

Environmental demands in high-flow jumbo configurations are managed by the Davey Microlene 1PS10J ultra-fine sediment cartridge. This unit is designed for high-flow drinking water systems, mineral water bottling, and industrial prefiltration. It is designed for compatible 10 inch Jumbo housings with approximately 114 mm diameter. The 1 micron rating is frequently utilized ahead of Reverse Osmosis systems to capture fine particles that cause premature membrane blinding and manage the total load of suspended solids.

Manufactured from 100 percent pure food grade polypropylene, the housing consists of thousands of interlocked thermally bonded fibers. The construction includes no center cores, gaskets, surfactants, or chemical binders that could leach into the water. This fiber matrix is designed to inhibit media migration when the system experiences surges in water pressure. For biological protection, this model provides a Cryptosporidium cyst removal rating of greater than 99 percent for mechanical capture. It meets purity standards.

Operational performance is specified for a flow rate of 75 L/Min within jumbo housing configurations. The physical configuration utilizes a 1 micron nominal rating for the capture of microscopic rust, silt, sand, and algae. This unit is a passive mechanical filter that operates without a motor or electrical supply. It is rated for liquid temperatures up to 63 degrees Celsius and is intended for compatible cold water filtration applications. It is suitable for applications requiring fine sediment prefiltration in jumbo water treatment systems.

Hygienic safety is supported by the polypropylene media which provides chemical resistance and is suitable for applications requiring high-purity mechanical filtration. The jumbo depth filtration design achieves a high dirt holding capacity, with a recommended replacement interval of every 12 months. The construction results in a clean filter that does not impart taste, colour or odour to the liquid. It fits compatible 10 inch Jumbo housings and is designed for cartridge replacement with no end caps used in the assembly.

• Micron rating is specified at 1 micron nominal for fine particles
• Cryptosporidium cyst removal is rated at greater than 99 percent
• Manufactured from 100 percent pure food grade polypropylene fibers
• Sized for 10 inch Jumbo housings measuring 254 mm by 114 mm
• Flow rate is specified at 75 L/Min for jumbo systems
• Suitable for liquid temperatures reaching 63 degrees Celsius maximum
• Designed for 10 inch Jumbo housings with approximately 114 mm diameter
