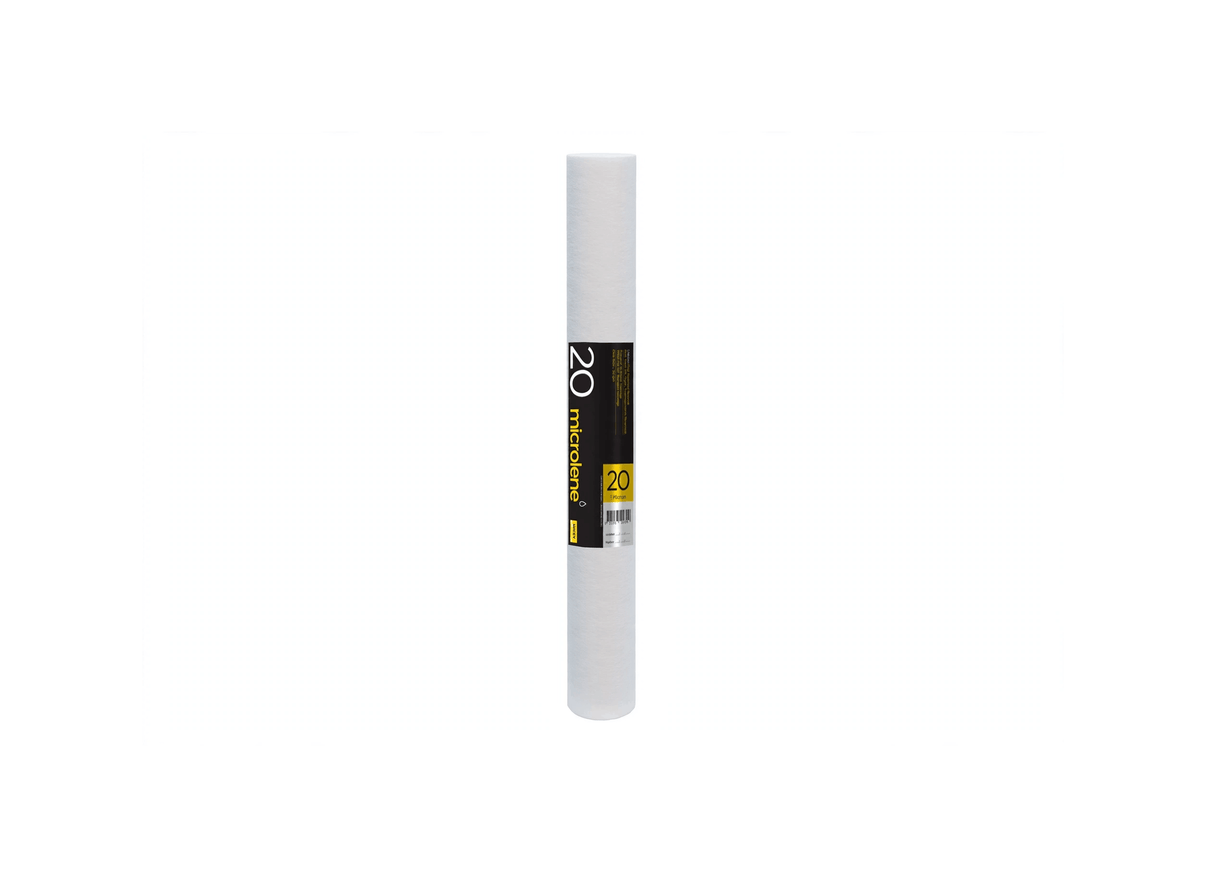

Davey Microlene 5PS20 Polyspun 5 Micron 20" Replacement Water Filter Cartridge

Environmental demands in high-volume commercial drinking water systems are addressed by the Davey Microlene 5PS20 filtration unit. This model is designed for the beverage industry, mineral water bottling, and laboratory environments. It is suitable for installation in compatible standard 20 inch filter housings measuring approximately 508 mm by 64 mm. The unit provides fine prefiltration ahead of Reverse Osmosis systems or sub-micron filters in large-scale food processing facilities to manage suspended solids.

Constructed from 100 percent pure food grade polypropylene, the filter utilizes a thermally bonded fiber matrix. The manufacturing process excludes the use of gaskets, binders, surfactants, or center cores to maintain water purity. This architecture is designed to inhibit the release of loose fibers into the downstream flow when water pressure shifts. The unit meets regulatory guidelines for use in potable water and is clean with no extractables. The fibers are interlocked to create a rigid structure with no fillers.

Operational metrics include a flow rate of 56 L/Min through the 20 inch cartridge body. The fluid path is rated for 5 micron nominal sediment removal, capturing sand, rust, silt, and algae from the water stream. This is a passive mechanical filter that functions without an electrical motor or drive configuration. It is rated for liquid temperatures reaching 63 degrees Celsius and is intended for compatible cold water filtration applications. It fits standard 64 mm diameter housings measuring 508 mm in length.

Hygienic performance is managed through the polypropylene media which offers chemical resistance for diverse industrial needs. The depth filtration design allows for high dirt holding capacity, leading to a recommended replacement cycle of 12 months. The cartridge fits compatible 20 inch housings and is designed for simple maintenance. It does not impart taste, colour or odour to the water being processed for consumption. The construction involves no center core or chemical binders to ensure fluid passage.

• Micron rating is specified at 5 microns nominal for fine filtration
• Manufactured from 100 percent pure food grade polypropylene media
• Extended 20 inch nominal length (508 mm) for commercial applications
• Flow rate is specified at 56 L/Min for high volume use
• Suitable for liquid temperatures up to 63 degrees Celsius maximum
• Designed with thermally bonded fibers to inhibit media migration
• Fits compatible standard 20 inch housings with 64 mm diameter
