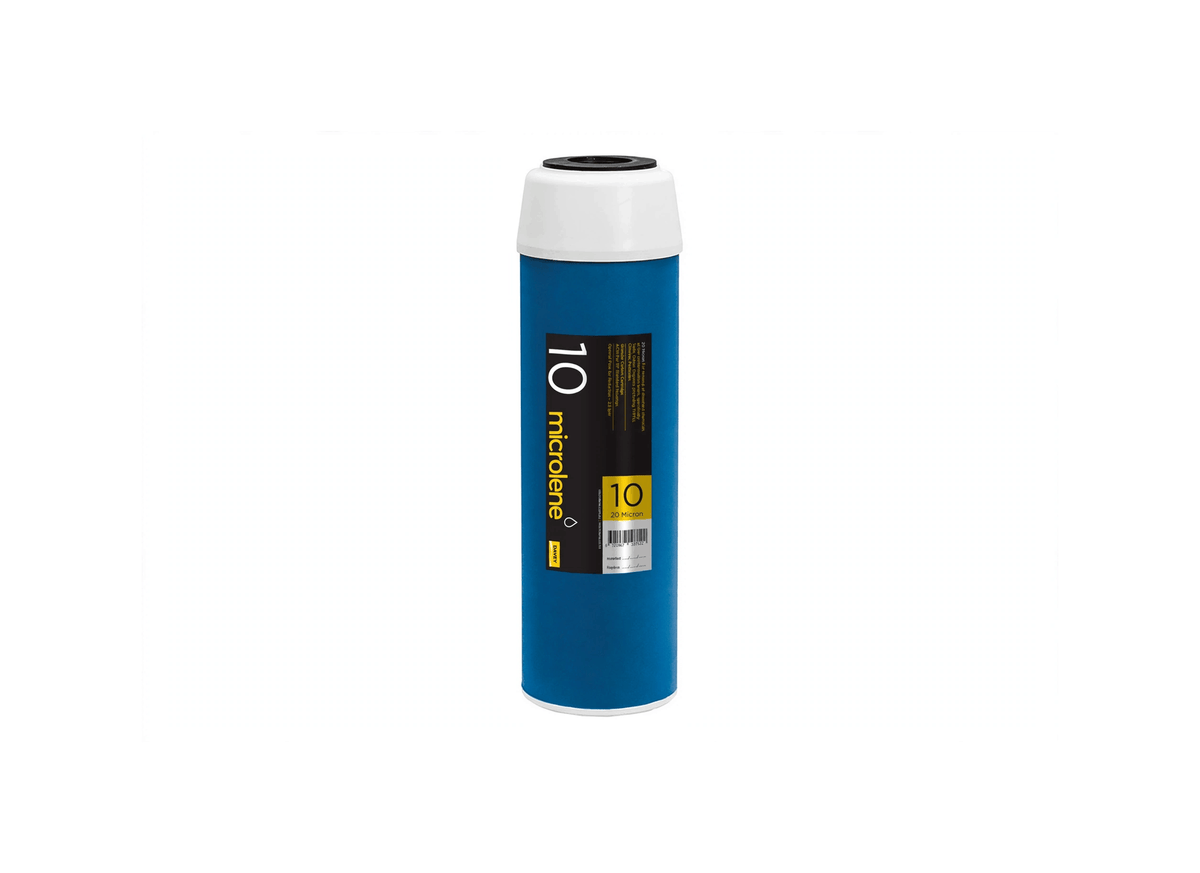

Davey Microlene AC10 Granular Carbon 20 Micron 10" Replacement Water Filter Cartridge

Operational demands for dissolved chemical reduction in drinking water are met by the Davey Microlene AC10 granular activated carbon cartridge. This model is designed for drinking water systems, beverage industries, and mineral water bottling. It is designed for compatible standard 10 inch housings with approximately 64 mm diameter. The cartridge is specified for facilities where removal of dissolved chemicals is needed for residential and commercial water treatment infrastructure to manage water quality.

Constructed totally from food grade materials, the housing contains GAC media designed for maximum contact time with the water stream. The internal architecture includes a permanent 20 micron nominal post filter fastened to the support basket. This design is intended to inhibit the bypass of carbon fines and silt into the filtered water. The unit is specified for the reduction of trihalomethanes, organic chemicals, and offensive tastes or odours through absorption. It features an innovative design without center cores for the carbon bed.

Technical performance metrics include an optimal flow rate of 3.8 L/Min for reduction and a total capacity of 18,900 litres. The internal mechanical rating is specified at 20 microns nominal via the post filter assembly for sediment capture. This is a passive purification device that operates without electrical supply or motor configurations. The unit is rated for liquid temperatures reaching 52 degrees Celsius and is intended for compatible cold water filtration applications. It features a blue body with white end caps for secure fitment.

The GAC media is designed to support taste, odour and organic contaminant reduction including THMs. The cartridge must be run for at least 5 minutes upon installation to remove carbon fines and flushed for 20 seconds before use. Replacement should be based on cartridge condition, water quality and reduced filtration performance. The blue body with white end caps fits compatible standard 10 inch housings and meets standards for food and beverage industry use. It is designed to ensure maximum absorption through increased contact time.

• Micron rating for the post filter is 20 microns nominal
• Constructed from high quality Granular Activated Carbon (GAC)
• Includes a permanent post filter to inhibit carbon fine bypass
• Total filtration capacity is specified at 18,900 litres
• Optimal flow rate for reduction is specified at 3.8 L/Min
• Suitable for liquid temperatures up to 52 degrees Celsius maximum
• Fits compatible standard 10 inch housings with 64 mm diameter
