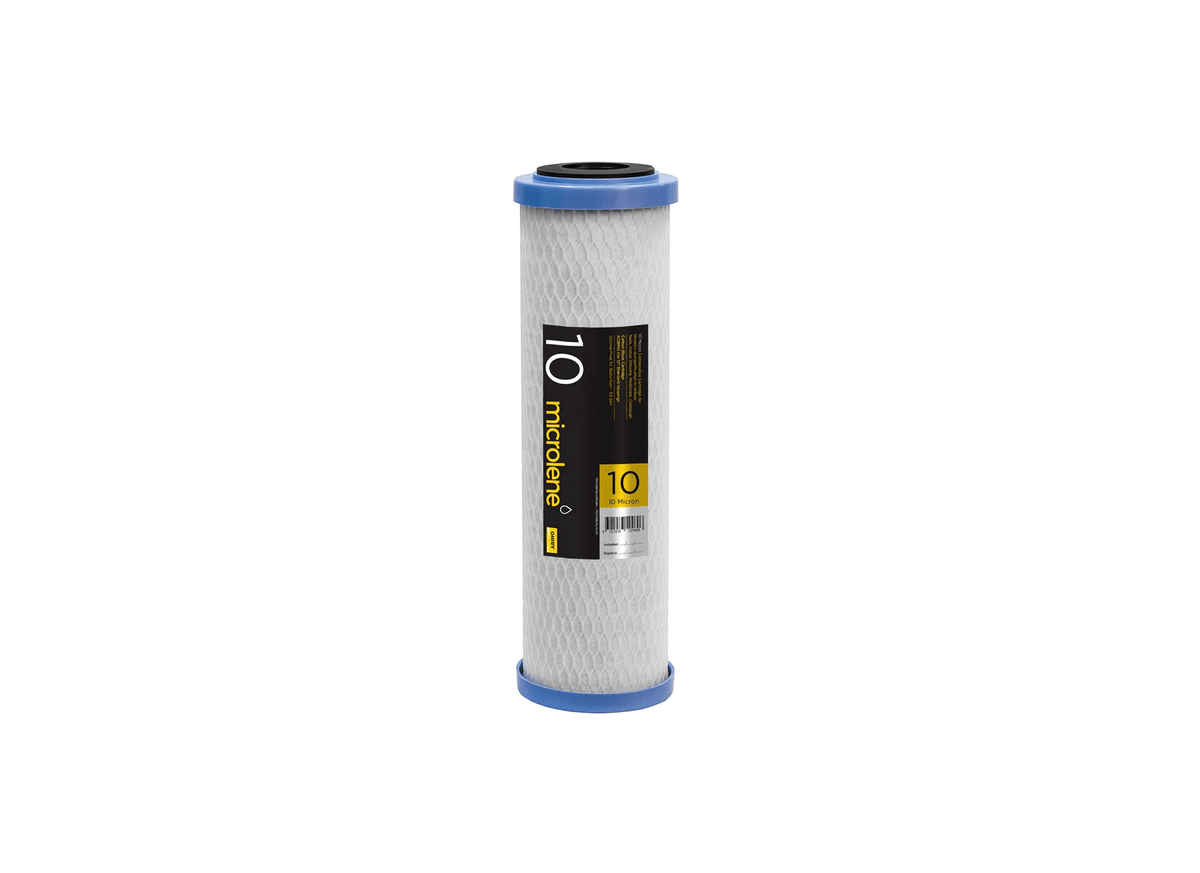

Davey Microlene ACBM10 Carbon 10 Micron 10" Replacement Water Filter Cartridge

A primary structural material choice for high-flow purification is the Davey Microlene ACBM10 bonded carbon block cartridge. This model is designed for drinking water systems, laboratory use, and food industry final filtration. It is suitable for installation in compatible standard 10 inch filter housings measuring 254 mm by 64 mm. The cartridge serves a dual role by providing both mechanical filtration and chemical purification in a single stage for diverse industrial facilities requiring chlorine reduction.

Constructed using the specified carbon block media and cartridge materials, the high-capacity carbon block offers high absorption for chlorine, taste, and odour. The media is specified for reducing chlorine, pesticides, taste, odour, and sediment. The high porosity of the block architecture allows for high flow rates and inhibits the plugging of pores with sediment. This construction contains no chemical binders or surfactants that could leach into the liquid stream and features a 10 micron nominal rating and white appearance.

Mechanical performance metrics include an optimal flow rate of 3.8 L/Min for reduction and a maximum flow rate of 17 L/Min. The internal fluid path utilizes a 10 micron nominal rating to trap suspended solids and sediment from the water line. As a passive purification component, the unit operates without electrical power or motor drive configurations. It is specified for both cold and hot water service up to 82 degrees Celsius, providing versatility for industrial applications. The unit features blue end caps for identification during maintenance.

Hygienic safety is managed through a long service life enabled by the high-porosity carbon media. A sediment prefilter is recommended as a low-cost precaution for high sediment loads to protect the internal active sites. The unit should be run for at least 5 minutes upon installation to remove carbon fines and flushed for 20 seconds before use. Replacement is recommended when offending chemicals or odours are detected in the final water. The cartridge fits compatible standard housings and has a specified capacity of 11,400 litres.

• Micron rating is specified at 10 microns nominal for sediment removal
• Constructed using high capacity Bonded Powdered Activated Carbon
• Suitable for hot and cold water service up to 82 degrees Celsius
• Designed for reducing chlorine, pesticides, taste, odour and sediment
• Optimal flow rate for reduction is specified at 3.8 L/Min
• Total capacity is specified at 11,400 litres for chemical removal
• Fits compatible standard 10 inch water filter housings (254 mm length)
