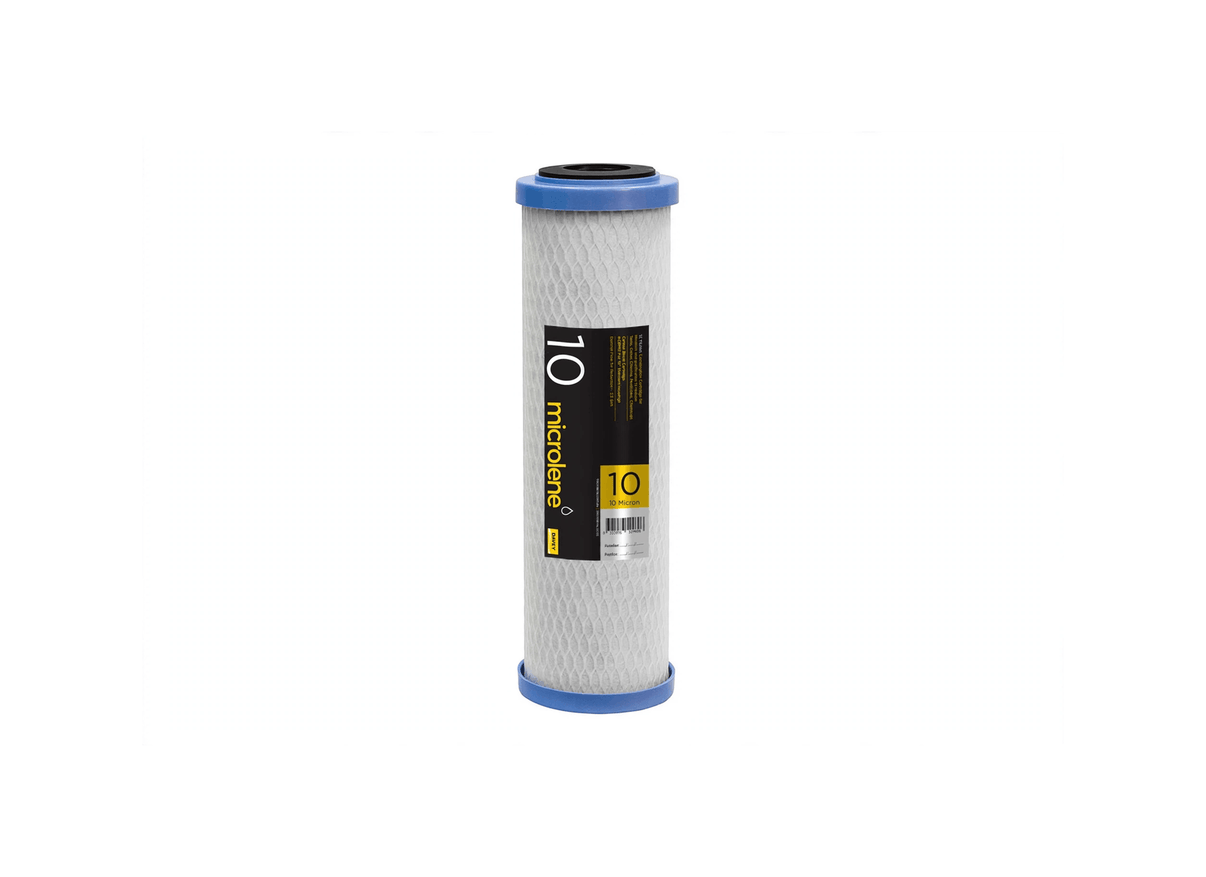

Davey Microlene BPAC10 Polishing 0.5 Micron 10" Replacement Water Filter Cartridge

A primary structural material choice for high-precision polishing is the 0.5 micron nominal rating of the Davey Microlene BPAC10 cartridge. This model is designed for drinking water purification, laboratory use, and final filtration in the food industry. It is suitable for installation in compatible standard 10 inch filter housings measuring 254 mm by 64 mm. The unit is frequently utilized as a point of use purifier where the removal of cysts and organic chemicals is a requirement for water treatment infrastructure.

Constructed using the specified carbon block media and cartridge materials, the unit utilizes high surface area Bonded Powdered Activated Carbon. This material has exceptional adsorption capability and is effective in reducing low levels of organic chemicals and THMs. The nominal 0.5 micron sediment removal rating is designed for the mechanical removal of Giardia and Cryptosporidium cysts. The unit complies with AS/NZ 4348 standards for greater than 99.9 percent cyst removal and features grey end caps for identification.

Fluid flow management is specified for an optimal flow rate of 7.6 L/Min for reduction performance and a maximum flow rate of 14 L/Min. The physical configuration achieves a 1 micron absolute rating for mechanical particle capture of sand, silt, and rust. As a passive purification device, it functions without electrical power or motor drives. The unit is rated for both cold and hot water service up to 82 degrees Celsius, making it suitable for diverse commercial plumbing applications. It features white media and no chemical surfactants.

Hygienic performance is managed through a 6-month service life recommended by the manufacturer to maintain purification standards. The unit should be flushed for 5 minutes upon installation to remove carbon fines from the internal bed. A sediment prefilter is recommended to inhibit premature clogging of the carbon active sites in high sediment environments. The construction does not impart taste, odour or colour to the drinking water while reducing chemical contaminants. It has a capacity of 75,000 litres and fits standard 10 inch housings.

• Micron rating is specified at 0.5 microns nominal for polishing
• Absolute micron rating is specified at 1 micron for particle capture
• Complies with AS/NZ 4348 for greater than 99.9 percent cyst removal
• Constructed from high surface area Bonded Powdered Activated Carbon
• Suitable for hot and cold water service up to 82 degrees Celsius
• Optimal flow rate for reduction is specified at 7.6 L/Min
• Total capacity is specified at 75,000 litres for treatment volume
