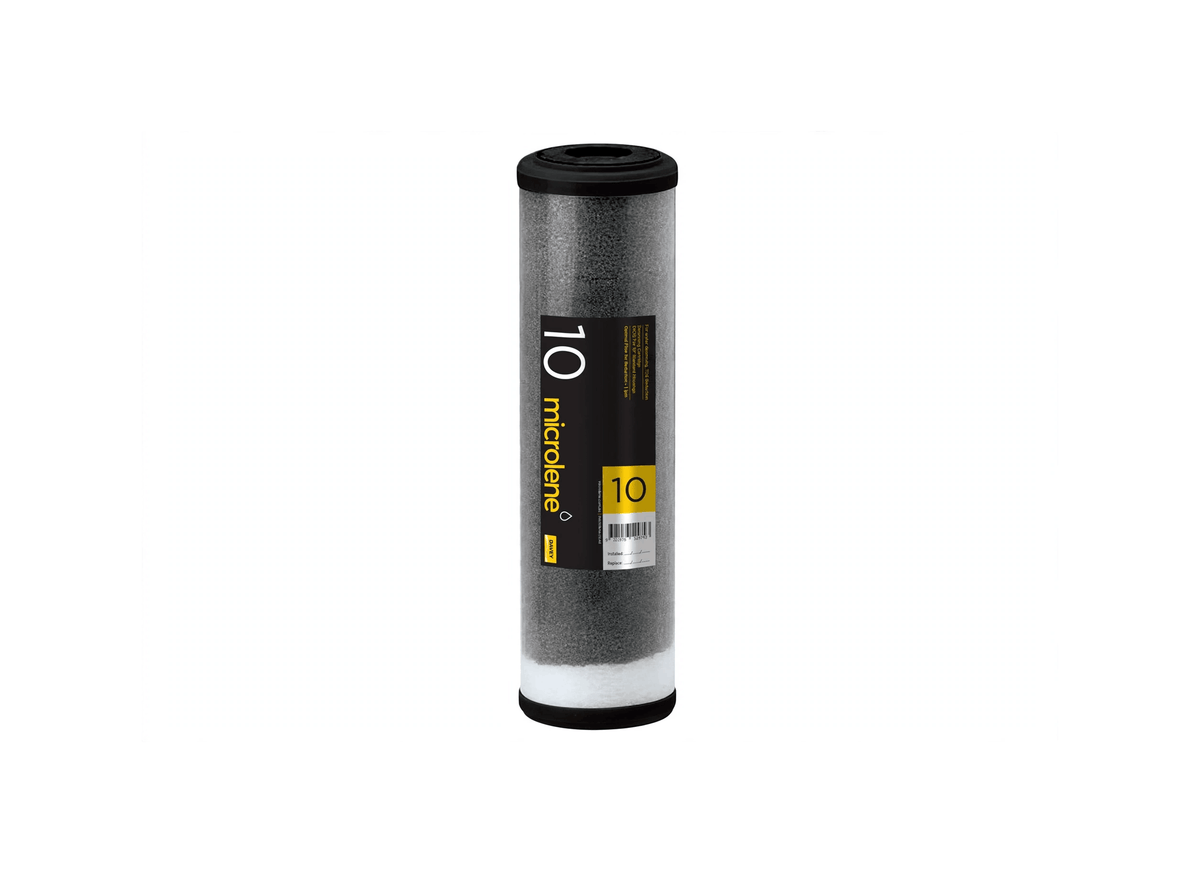

Davey Microlene DIC10 Deionising Mixed Bed 5 Micron 10" Replacement Water Filter Cartridge

Safety protection containment for applications requiring high-purity ion exchange is managed by the Davey Microlene DIC10 deionising cartridge. This unit is designed for producing deionised water for analytical or laboratory use and for filling autoclaves. It is designed for compatible standard 10 inch housings with approximately 64 mm diameter. The model serves as a non-regenerable industrial tool for applications requiring very low TDS water and minimal TOC background for pure fluid output in laboratory facilities.

Constructed using the specified deionisation mixed bed resin media and cartridge materials, the unit contains semiconductor grade mixed bed resin for purification. The internal configuration includes a 5 micron nominal post filter to inhibit the escape of resin beads into the purified water stream. This media allows for the delivery of chemically pure water when used in a recirculating mode or as a polisher for Reverse Osmosis product water. The unit is designed for downflow operation to prevent bed separation during intermittent use.

Mechanical performance metrics include an optimal flow rate of 1.0 L/Min to maintain conductivity levels for laboratory tasks. Operation above the specified optimal flow rate may result in increased conductivity and should be avoided where very low conductivity is required. This is a passive purification component that operates without an electrical motor or drive configuration. It is specified for liquid temperatures up to 50 degrees Celsius and is strictly intended for compatible cold water industrial and laboratory service. It features a black appearance.

Hygienic performance is managed by restricting the use of deionised water for drinking applications. The unit is designed to produce deionised water suitable for analytical equipment and general laboratory use. It fits compatible standard 10 inch housings and provides a source of pure water for industrial processes. The construction involves no chemical surfactants or binders to ensure fluid integrity. Divide 28,000 by the TDS of the feed in mg/l to get the approximate throughput in litres for managing the cartridge replacement cycle.

• Micron rating for the post filter is 5 micron nominal
• Constructed from semiconductor grade mixed bed ion exchange resin
• Designed for the production of low TDS water for laboratory use
• Capacity is determined by dividing 28,000 by the feedwater TDS
• Optimal flow rate for conductivity is specified at 1.0 L/Min
• Suitable for liquid temperatures up to 50 degrees Celsius maximum
• Fits compatible standard 10 inch housings with 64 mm diameter
