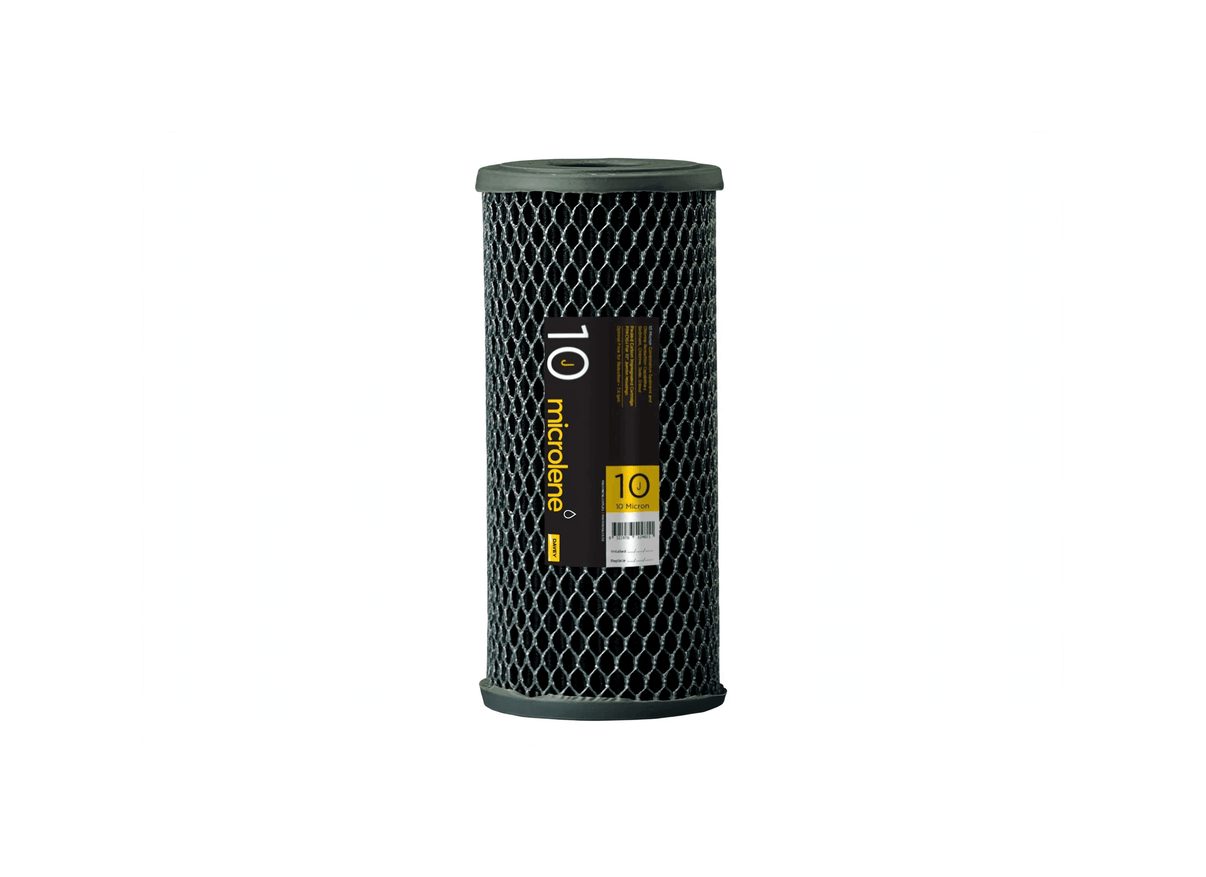

Davey Microlene PPAC10J Jumbo Pleated Carbon 10 Micron 10" Replacement Water Filter Cartridge

Internal fluid velocity paths for high-flow rainwater polishing are managed by the Davey Microlene PPAC10J jumbo pleated carbon cartridge. This model is designed for high-flow rainwater systems, closed loop industrial streams, and post Reverse Osmosis polishing. It is designed for compatible 10 inch Jumbo housings with approximately 114 mm diameter. The jumbo pleated construction allows for significant surface area, combining mechanical sediment removal with dissolved chemical reduction for high-volume commercial facilities.

Constructed using the specified carbon impregnated media and jumbo cartridge materials, the filter features Powdered Bonded Activated Carbon impregnated on a pleated polyester media. This architectural choice allows for higher flow rates than traditional carbon blocks while maintaining a rigid internal structure. The design is intended for the reduction of chlorine, taste, odour, and sediment from the water supply line. It features black media and grey end caps for secure seating within the jumbo housing bracket assembly.

Operational specifications include an optimal flow rate of 7.6 L/Min for reduction and a maximum flow rate of 70 L/Min for jumbo housing configurations. The internal fluid path utilizes a 10 micron nominal rating to trap suspended solids such as silt, sand, and rust. As a passive mechanical and chemical filter, it operates without an electrical motor or drive configuration. The unit is rated for liquid temperatures up to 52 degrees Celsius and is intended for compatible cold water filtration applications in residential and commercial settings.

Hygienic performance is managed through a 12-month replacement cycle, depending on the level of suspended solids in the incoming supply. The unit should be flushed upon installation to remove carbon fines from the impregnated polyester. For high sediment loads, a prefilter is recommended to inhibit the premature clogging of the pleated active sites. The cartridge fits compatible 10 inch Jumbo housings and is designed for straightforward replacement within compatible filter housings to maintain the integrity of the water supply.

• Micron rating is specified at 10 microns nominal for sediment capture
• Constructed from Powdered Bonded Activated Carbon on pleated polyester
• Designed with a large filtration area for higher flow rate capacity
• Maximum flow rate is specified at 70 L/Min for jumbo distribution
• Optimal flow rate for reduction is specified at 7.6 L/Min
• Suitable for liquid temperatures up to 52 degrees Celsius maximum
• Fits compatible 10 inch Jumbo housings with 114 mm diameter
