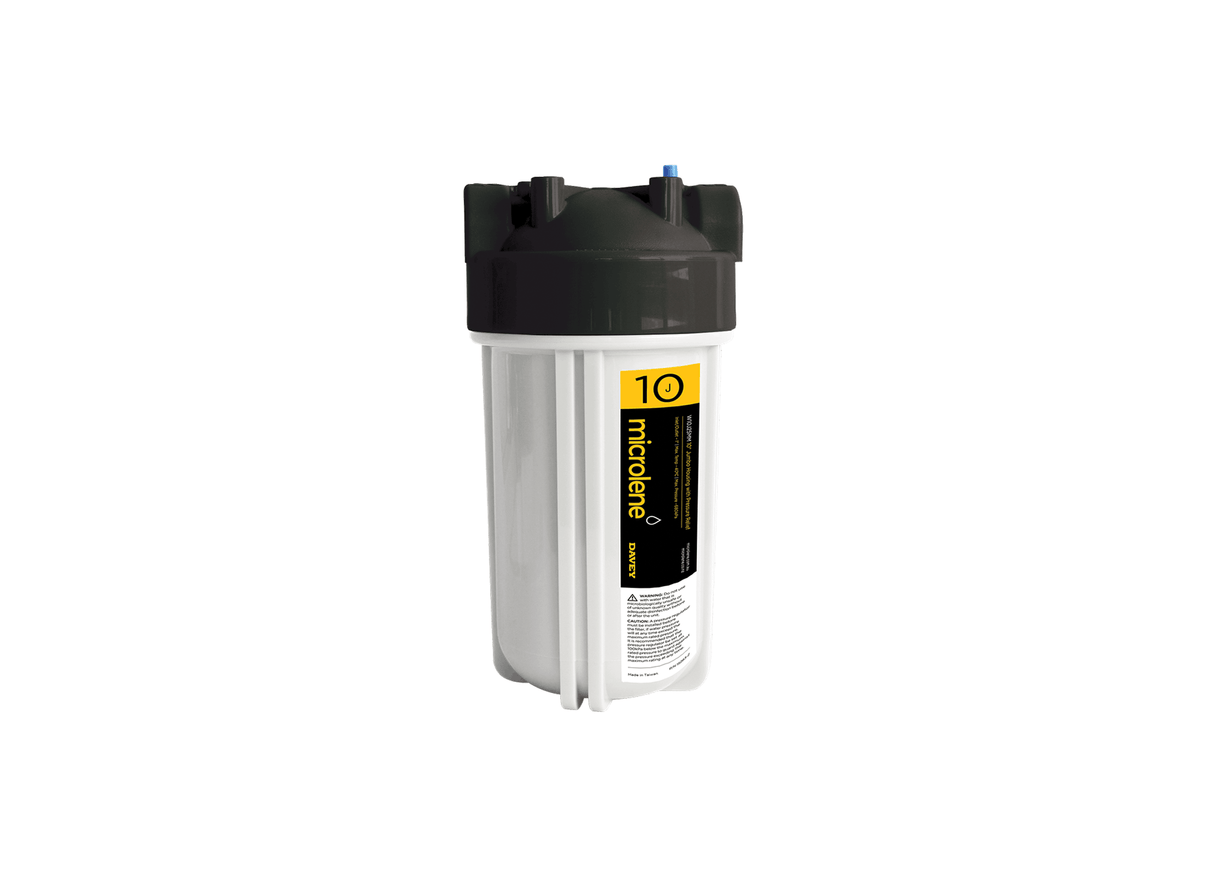

Davey Microlene W10J25MM 10" Jumbo Filter Housing with Pressure Relief and Spanner

Whole-of-house flow demands in small homes are met by the Davey Microlene W10J25MM 10 inch jumbo single filter housing. This unit is for applications where increased dirt-loading capacity is required compared to standard diameter housings. It is for installation in residential utility loops, allowing for site-specific jumbo-sized cartridge selection. The assembly features 25mm connections to integrate with larger diameter plumbing lines in modern house designs.

Constructed from reinforced polypropylene, the jumbo housing is durable and resistant to chemical corrosion in varying water conditions. It utilizes jumbo 10 inch cartridges with an outer diameter of 114mm, providing a larger filtration surface area for extended service life. The unit includes a built-in pressure relief valve on the cap to bleed off line pressure during manual filter changes. It measures 345mm in height and 185mm in width for secure installation.

The housing operates with 25mm 1 inch BSP female inlet and outlet connections and is rated for a maximum pressure of 880 kPa. As a passive filtration component, it depends on hydraulic pressure to deliver water through the selected jumbo cartridge. Its large internal volume accommodates high-capacity cartridges for whole-of-house filtration applications. It is specified for water temperatures ranging from 0 to 40 degrees Celsius and maintains integrity in ambient heat.

Operational safety is provided by WaterMark certification and compliance with WMTS-103 standards for domestic water appliances. The kit includes a dedicated jumbo housing spanner and a mounting bracket with hardware for manual installation. The internal volume provides a low pressure drop during flow, making it suitable for whole-of-house pre-filtration passes. This 10 inch jumbo housing offers a solution for residential systems prioritizing capacity.

• Manufactured with reinforced polypropylene for high structural integrity
• Features 25mm 1 inch BSP female inlet and outlet plumbing ports
• Rated for maximum system operating pressures up to 880 kPa or 128 psi
• Includes a built-in pressure relief valve for manual tool-less maintenance
• Designed for jumbo 10 inch cartridges with 114mm outer diameters
• Supplied with a dedicated jumbo housing spanner and mounting bracket
