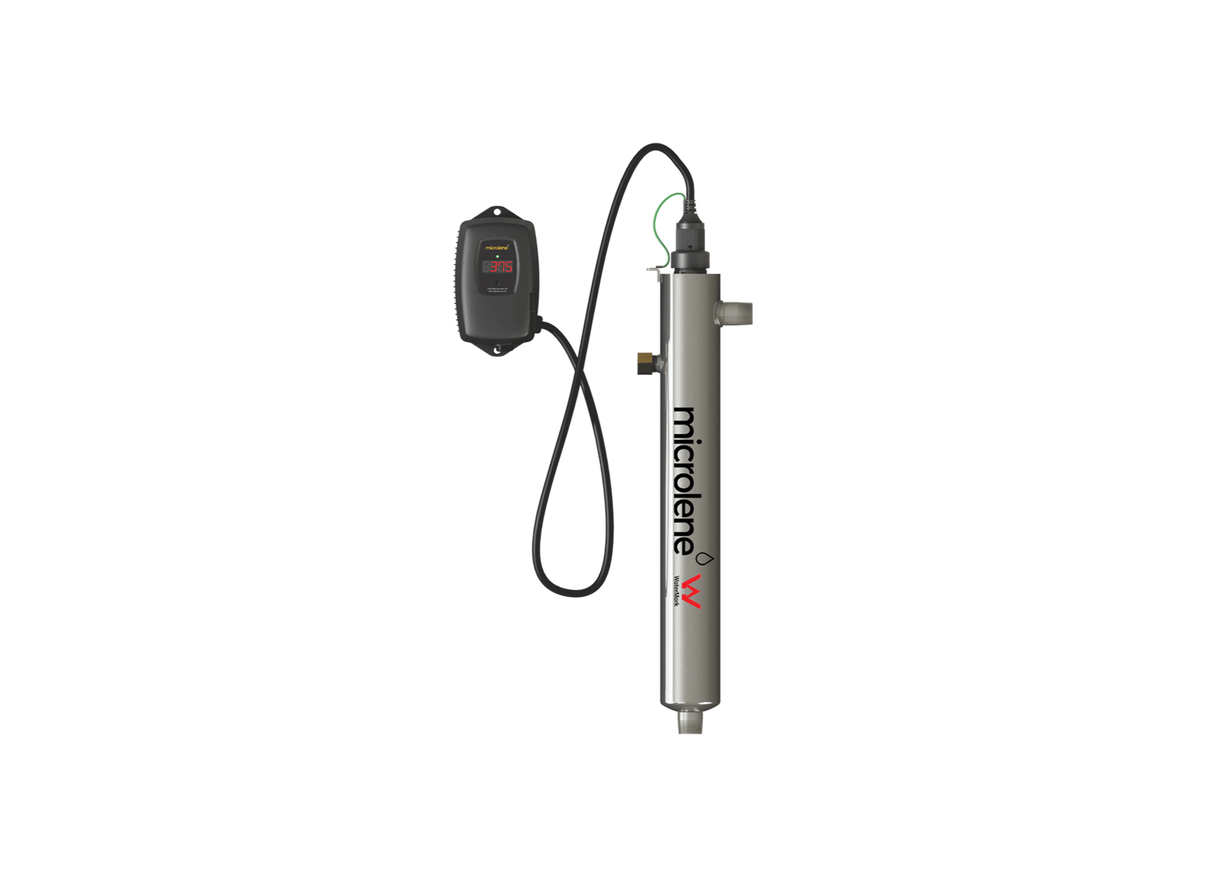

Davey UV24 Steriflo 41 L/Min UV Water Treatment System

Drinking water safety in small residential settings depends on effective treatment of sources such as rainwater, bore water, or mains supplies. The UV24 R Series provides a physical disinfection method that avoids chemical additives, ensuring the natural taste and odor of the water remain unaltered. This unit is suitable for point-of-entry installation, creating a continuous barrier against waterborne pathogens. Users can install the system in either vertical or horizontal orientations to fit existing plumbing layouts in pump sheds or utility areas.

The reactor vessel is constructed from 304 Stainless Steel using A249 pressure-rated tubing to maintain structural integrity. It houses a high-purity quartz sleeve that protects the internal lamp while allowing maximum UV-C transmission. With a shipping weight of 4.4 kg, the unit is manageable for various mounting scenarios. Operation is rated for water temperatures between 2 and 40 degrees Celsius. The internal chamber diameter is 64 mm with a total length of 542 mm.

This system operates on a 90-265V 50/60Hz supply with a total power consumption of 30 W. The internal ultraviolet lamp is rated at 22 W and the unit operates with a maximum current of 1 Amps. It achieves a peak flow rate of 23 L/Min at a 30mJ/cm2 dosage and up to 41 L/Min at 16mJ/cm2. Connections consist of 20 mm MNPT inlet and outlet ports. The system is designed for a maximum operating pressure of 860 kPa and a minimum of 69 kPa.

Electrical components are protected within a splash-proof case featuring a fully potted ballast. An integrated lamp change reminder provides maintenance alerts, while a lamp out indicator allows for status checks. The unit utilizes high-intensity low-pressure high-output lamp technology. Mounting brackets are included for installation. The controller measures 172 x 92 x 102 mm. Maintenance is performed through a tool-free design that allows for lamp changes with a quarter-turn. The system is designed to provide consistent performance over the life of the lamp.

FEATURES

• High-intensity low-pressure high-output ultraviolet lamp technology
• Polished 304 Stainless Steel reactor chamber for durable service
• Integrated lamp change reminder for scheduled maintenance alerts
• Visual lamp out indicator for immediate operational status checks
• Ballast operation indicator allows for easy electrical monitoring
• A249 pressure rated tubing construction for structural integrity
• Mounting brackets included for simplified installation procedures

Warranty: 10 year warranty on the chamber, 3 years on electronics, and 1 year on lamps and sleeves.
