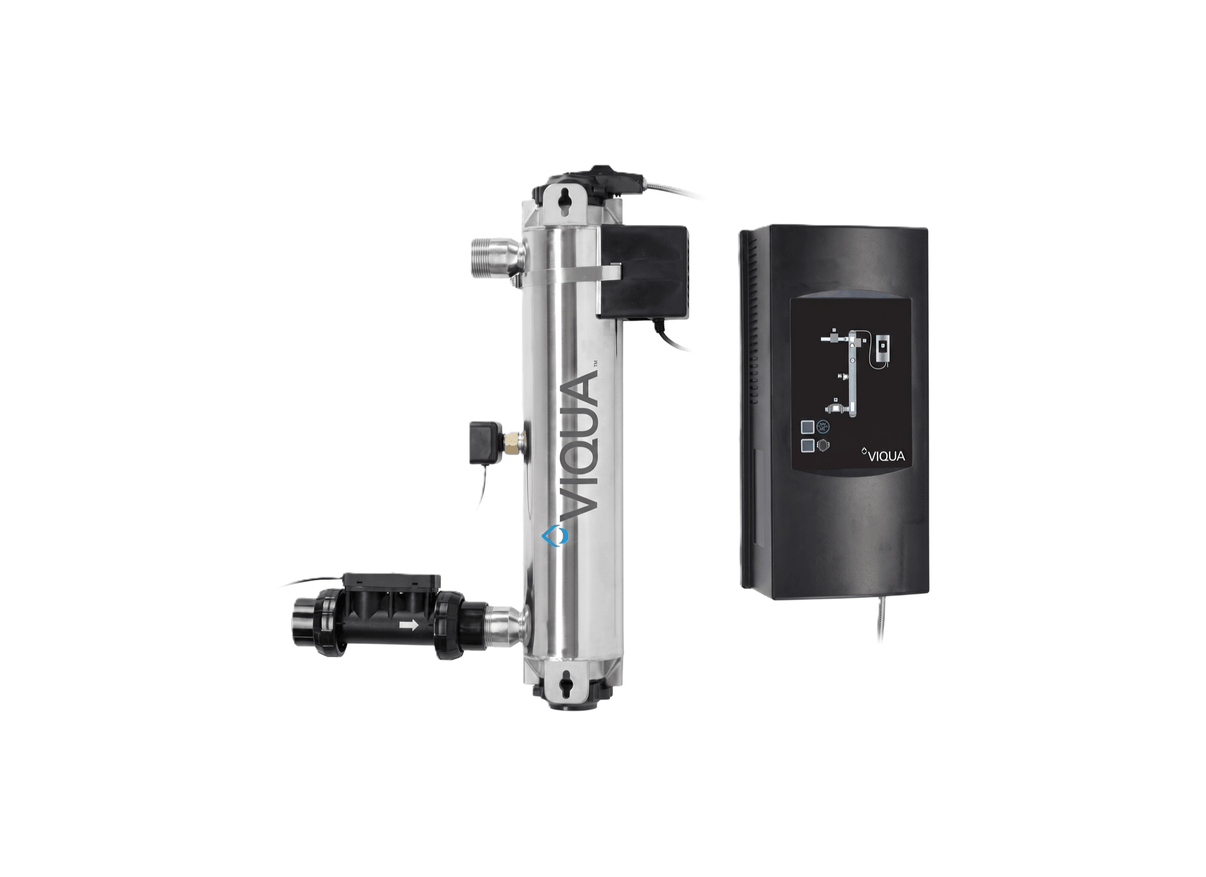

Davey Viqua PRO10 LightWise 38 L/Min UV Water Treatment System

Reliable and economical water treatment for residential or light commercial applications is provided by the ER650650 Viqua PRO10 UV Disinfection System. This professional unit utilizes high-intensity ultraviolet light to neutralize bacteria, viruses, and other waterborne pathogens. It is tested to NSF/ANSI Standard 55 Class A for disinfection performance. The process works without chemicals to maintain the natural taste and odor of the water supply. The system is designed to provide a continuous microbiological barrier for the occupants of the building.

Constructed from 316L Stainless Steel, the reactor chamber has a diameter of 10 cm and a length of 54 cm. The housing surrounds a high-purity quartz sleeve and a high-intensity amalgam lamp. The unit has a shipping weight of 11.3 kg. It is specified for influent water temperatures between 2 and 40 degrees Celsius. The internal chamber is designed for cleanliness and durability, providing a clean surface for the disinfection process to occur. The system includes a CoolTouch fan to reduce water temperature in no-flow conditions.

This system operates on a 100-240V 50/60Hz power supply and has a total power consumption of 120W. It operates with a maximum current of 1 Amps. It achieves a flow rate of 38 L/Min at a 40mJ/cm2 dosage. Inlet and outlet connections consist of a 1 1/4 inch MNPT and 1 inch FNPT combo port. The unit is rated for a maximum operating pressure of 8.62 bar. The system features LightWise technology which reduces lamp power during periods of no water flow, resulting in an estimated energy savings of 30 percent.

Monitoring is provided through a color user interface that displays diagnostics, status, and warnings. The system features an integrated UV sensor to ensure safe UV levels are maintained, and a flow meter to provide real-time UV dose. The high-output amalgam lamp is rated for up to 2 years of service life. Maintenance is simplified through a tool-free design where sleeve bolts require only a quarter-twist to the positive stop. The power supply enclosure has dimensions of 33 x 16.5 x 11.5 cm. The system includes plug-and-play color coded connections.

FEATURES

• LightWise technology reduces lamp power during periods of no water flow
• 316L Stainless Steel reactor chamber for durable service
• Integrated UV sensor ensures safe ultraviolet levels are maintained
• Flow meter provides real-time monitoring of the UV dose
• CoolTouch fan reduces water temperature in no-flow conditions
• Tool-free sleeve bolts with quarter-twist to positive stop
• Amalgam lamp technology rated for up to 2 years of service life

Warranty: 10 year warranty on the chamber, 3 years on electronics, and 1 year on lamps and sleeves.
