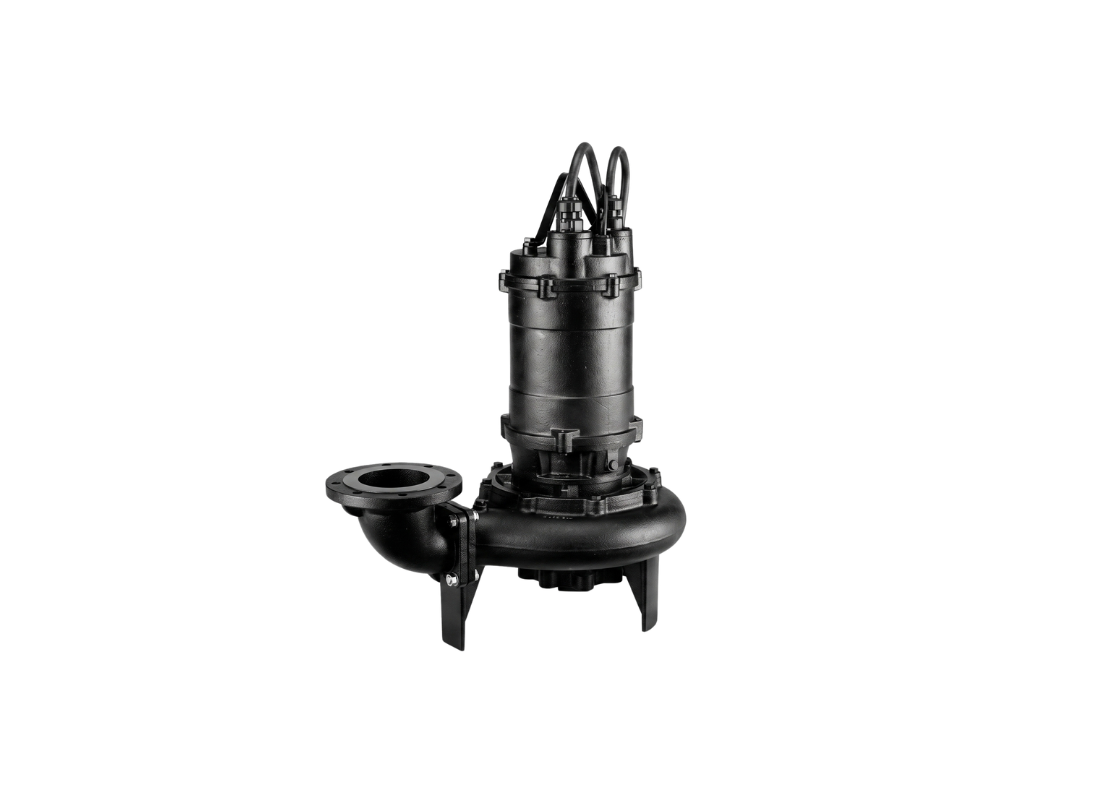

Performance for this 15 kW motor includes a maximum flow rate of 5000 L/Min and a total head of 29.6 m. Operating on a three-phase 415v supply, the unit draws a rated current of 30 Amps and includes a 10 m submersible power cable. The air-filled dry submersible 4-pole motor operates at 1500 rpm and is designed for Star-Delta starting.
The enclosed single-channel impeller is designed for non-clog operation when handling wastewater containing raw sewage or industrial effluents. This hydraulic system permits the passage of foreign matter up to 76 mm in diameter. Discharge is provided through an 80 mm vertical delivery port fitted with a discharge elbow with companion flange.
Materials include a cast iron casing, motor frame, and impeller secured by 304 stainless steel fasteners and an AISI 403 stainless steel shaft. Motor protection is provided by a double mechanical seal in an intermediate oil chamber featuring Silicon Carbide lower faces. The assembly is IP68 rated for submerged operation and features Class F insulation.
Designed for high capacity wastewater pumping and commercial sewage networks, this vertical pump handles liquids at temperatures up to 40°C. It is rated for maximum submergence depths of 8 meters during continuous duty. The pump is arranged for standing installation in wells where manual drainage control is necessary.
FEATURES
- Single-channel non-clog impeller configuration facilitates the passage of 76 mm solids.
- High-power motor reaches flow rates of 5000 L/Min with 29.6 m maximum head for lifting.
- Twin mechanical seals in an oil chamber with SiC lower faces isolate the motor from ingress.
- Cast iron pump frame and casing provide structural longevity in permanent submerged wells.
- Supplied with an 80 mm discharge elbow with companion flange, gaskets, and required bolts.
- Motor incorporates an automatic thermal protector.
- Double-row lower bearings provide axial stability for the 1500 rpm rotating assembly.
- Submersible 10 m power cable allows for secure integration into deep industrial pits.
