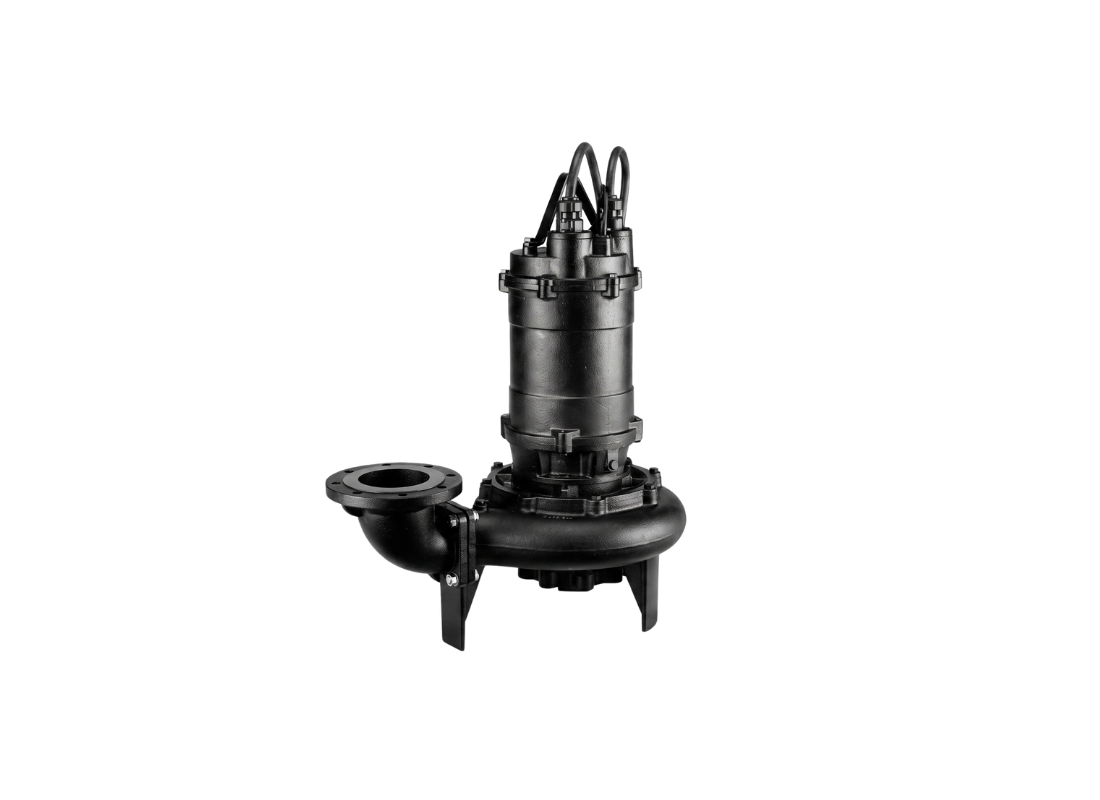

The enclosed single-channel impeller is designed for non-clog operation when handling wastewater containing raw sewage or storm water. This hydraulic system permits the passage of foreign matter up to 76 mm in diameter. An 80 mm vertical delivery port is provided, including a screwed discharge elbow with companion flange.
Construction materials feature a cast iron casing, motor frame, and impeller paired with an AISI 403 stainless steel shaft. Sealing is managed by a double mechanical seal in an oil chamber featuring Silicon Carbide lower faces and Carbon/Ceramic upper faces. Fasteners are 304 stainless steel and the assembly is IP68 rated for submerged operation.
Common applications for this manual unit include storm water drainage systems and industrial wastewater collection. It is designed for vertical installation in collection pits and handles liquids at temperatures up to 40°C. The pump is rated for continuous service at submergence depths up to 8 meters.
Performance for this 5.5 kW motor includes flow rates up to 3500 L/Min and a total head of 14 m. Operating on a three-phase 415v supply, the unit draws a rated current of 12.6 Amps and includes 10 m of submersible cable. The air-filled dry submersible 4-pole motor is designed for Star-Delta starting.
FEATURES
- Single-channel non-clog impeller enables handling of fluids with 76 mm suspended solids.
- Air-filled dry submersible 4-pole motor rated for continuous duty synchronous speeds of 1500 rpm.
- Double mechanical seal in an oil chamber with SiC faces isolates the motor from ingress.
- Cast iron casing and motor frame construction provides structural stability in submerged service.
- Supplied complete with an 80 mm discharge elbow with companion flange, gaskets, and fasteners.
- AISI 403 stainless steel shafting and 304 stainless fasteners provide resistance to corrosion.
- Double-row lower bearings provide axial support for the rotating assembly during operation.
- Internal oil chamber contains turbine oil (SAE 10W/20W) for lubrication of mechanical seals.
