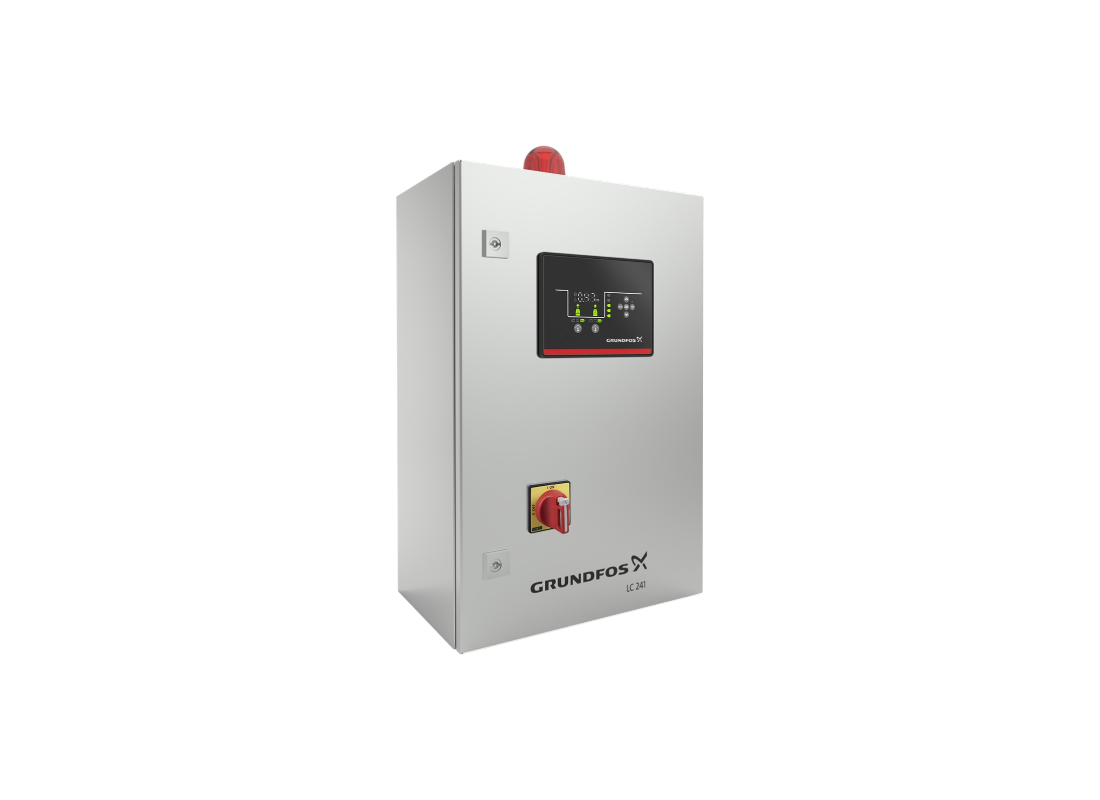

Grundfos LC 241 1 x 16-20 SST 415v MI Indoor Single Pump Wastewater Controller Panel for Industrial Drainage

Level control, monitoring, and protection of a single pump are performed by this modular control panel. The LC 241 1 x 16-20 SST 3X230/400 MI OPT is designed for sewage transport, groundwater drainage, and agricultural tank filling systems. Commissioning is completed via Bluetooth Smart using the step-by-step start-up wizard on the Grundfos GO app.

Constructed from painted metal, the cabinet enclosure provides housing for internal components and achieves an IP54 enclosure class. The wall-mounted panel operates within an ambient temperature window from -5 to 40 °C and has a net weight of 40 kg. Enclosure measurements are 550 mm width, 600 mm height, and 210 mm depth.

Operating on a three-phase 415v electrical supply, the controller features a rated current of 16-20 A. Utilizing a mains frequency of 50 or 60 Hz, the electrical system requires a 35 A back-up fuse. Starting and running capacitors are not applicable for this soft starter three-phase controller model.

Input and output terminals are configurable for connecting level sensors and float switches. An acoustic buzzer and two alarm relays report system statuses like high water levels or dry running conditions. Physical controls feature a manual mains switch along with an individual circuit breaker per pump.

• Method of start utilizes a soft starter for pump current control.
• Alarm history log registers the twenty most recent alerts for localized review.
• Water hammer mitigation blocks rapid restart cycles and delays concurrent starts.
• Gross package weight of the unit is 65 kg with a gross volume of 0 m³.
• CE and RCM standards are met for compliant product application.
• Custom tariff code is 8537109019 with China as country of origin.
• Designated sales region is Oceania with CN as manufacturing origin.

Warranty: This Grundfos LC 241 controller is backed by a comprehensive 1-year manufacturer's warranty.
