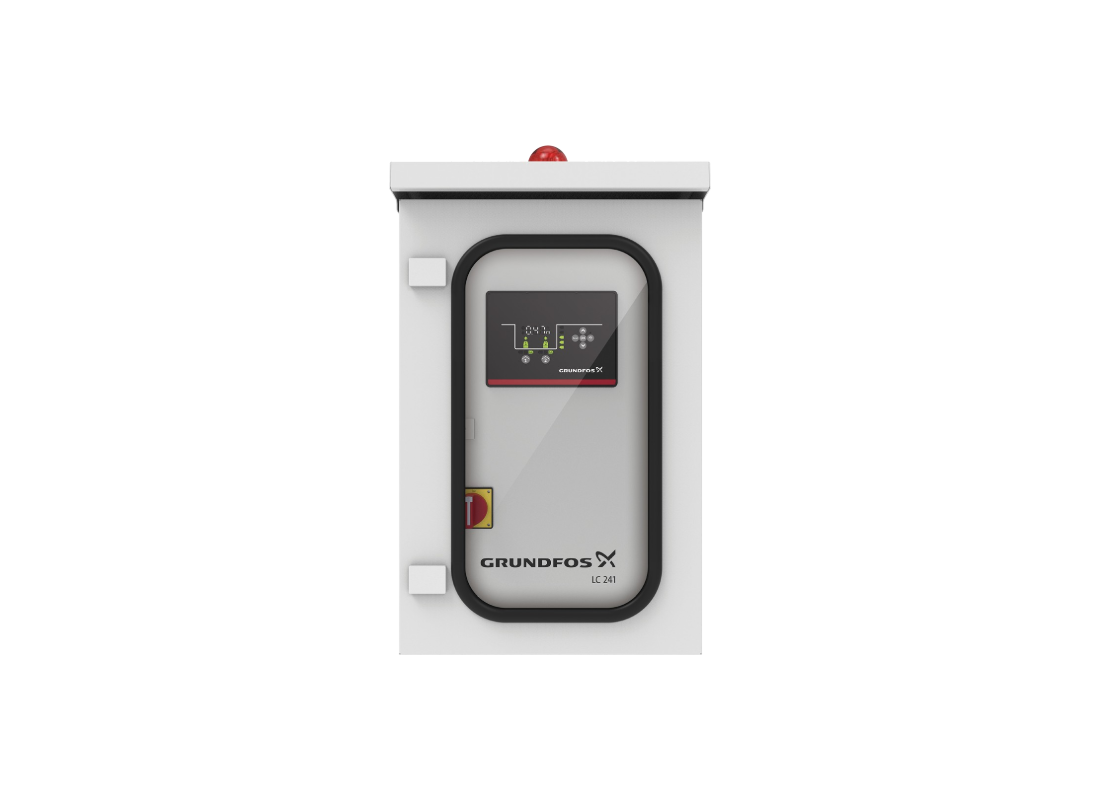

Grundfos LC 241 1 x 16-20 SST 415v MO Outdoor Single Pump Wastewater Controller Panel for Domestic Pumping

Wastewater transport, domestic drainage, and water supply tank-filling setups represent the primary uses of this modular controller. The LC 241 1 x 16-20 SST 3X230/400 MO OPT is suitable for outdoor (mo) setups. Setting up parameters is completed via Bluetooth Smart using the start-up wizard on the Grundfos GO app. This unit utilizes a soft starter starting method to coordinate pump starting cycles.

An IP65 enclosure rating is achieved by the painted metal cabinet housing, which protects the internal electrical assemblies. The wall-mounted panel operates within ambient temperatures from -5 to 40 °C. Net weight of the complete cabinet is 45 kg, and physical cabinet dimensions measure 600 mm width, 400 mm height, and 300 mm depth.

The three-phase controller is specified for a 415v supply voltage and operates at a mains frequency of 50 or 60 Hz. Rated for operational currents of 16-20 A, the electrical assembly requires a 35 A back-up fuse. Designated as a soft starter system, start and run capacitors are not applicable.

Configurable input/output terminals provide sensor connectivity for high flexibility in standard setups. An acoustic internal buzzer and two alarm relays report high water levels or dry running states. Physical interface layouts feature a manual mains switch along with an individual circuit breaker for the pump.

• Method of start utilizes an integrated soft starter.
• Alarm log records the last twenty alerts for diagnostic evaluations.
• Delayed concurrent starts and blocked quick restarts provide water hammer protection.
• Gross package weight is 64 kg for transport calculations.
• CE and RCM approvals indicate regional electrical compliance.
• Custom tariff number is 8537109019 with CN as country of origin.
• The model is manufactured in China for the Oceania sales market.

Warranty: This Grundfos LC 241 controller is backed by a comprehensive 1-year manufacturer's warranty.
