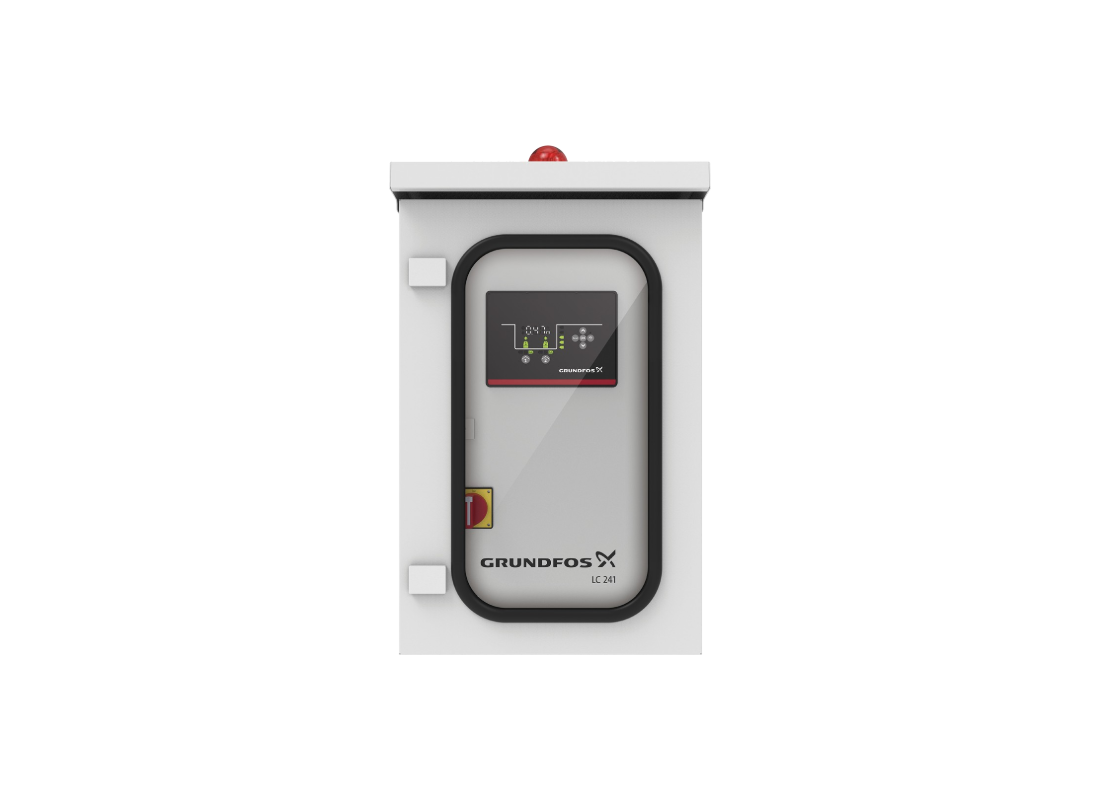

Grundfos LC 241 1 x 6-10 DOL 30 150 240v MO Outdoor Single Pump Wastewater Controller Panel for Commercial Pumping

Fluid level monitoring in water supply tank-filling setups is performed by this modular, single-pump controller. The LC 241 1 x 6-10 DOL 30 150 1X230 MO OPT is designed for outdoor (mo) installations and integrates customizable control features. Commissioning tasks are performed through Bluetooth Smart using the step-by-step start-up wizard in the Grundfos GO application.

The cabinet material consists of painted metal, housing the electrical elements to achieve an enclosure class of IP65. This wall-mounted enclosure operates within an ambient temperature range of -5 to 40 °C. Net weight of the assembly is 42 kg, with dimensions measuring 400 mm width, 600 mm height, and 300 mm depth.

Operating on a 1 x 220-240 V single-phase electrical supply, the unit is rated for current inputs of 6-10 A. The controller operates on a mains frequency of 50 or 60 Hz and requires a 16 A back-up fuse. Start-up is facilitated by an integrated 30 µF run capacitor and a 150 µF start capacitor.

The control panel features a manual mains switch and an individual circuit breaker per pump. Configurable input and output terminals allow connection to digital and analog level sensors. An acoustic buzzer and two alarm relays report dry running or high water states.

Features

• Diagnostic alarm log records the last twenty alerts for review.
• Water hammer prevention blocks quick restarts and delays simultaneous startups.
• Monitoring functions include phase sequence and missing phase detection.
• Sensor failure and sensor inconsistency identification are standard features.
• Custom tariff number is 8537109019 for regulatory classification.
• CE and RCM regulatory approvals are held by this controller.

Warranty: This Grundfos LC 241 controller is backed by a comprehensive 1-year manufacturer's warranty.
