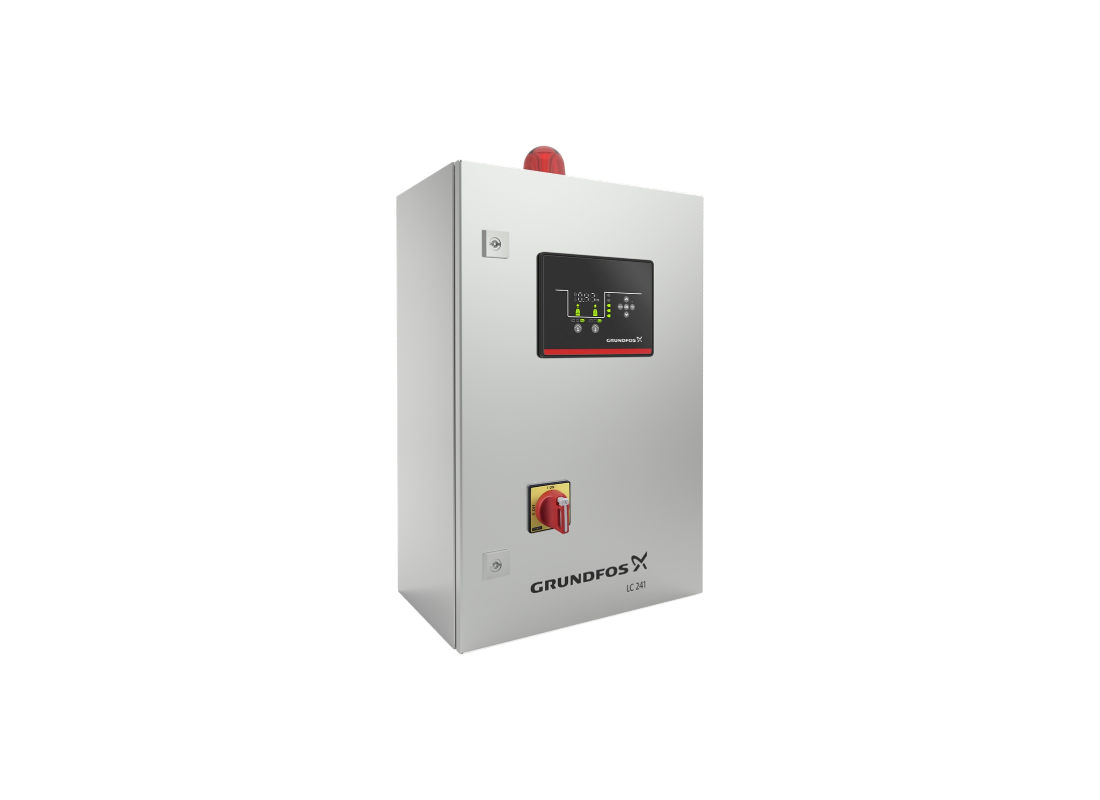

Grundfos LC 241 1 x 6-10 DOL 415v MI Indoor Single Pump Wastewater Controller Panel for Tank Filling

This level controller operates on single-pump systems to control liquid levels in wastewater, drainage, and water supply tank-filling systems. The LC 241 1 x 6-10 DOL 3X230/400 MI OPT model is suitable for indoor (mi) setups and offers a customizable control layout. Commissioning is completed using Bluetooth Smart technology via the start-up wizard in the Grundfos GO mobile app.

Constructed from painted metal, the cabinet enclosure achieves an enclosure class of IP54. The physical cabinet weighs 30 kg and is suitable for wall mounting in ambient temperatures from -5 to 40 °C. Enclosure measurements are 350 mm width, 600 mm height, and 210 mm depth.

Operating on a three-phase 415v electrical supply, the controller features a rated current of 6-10 A. Utilizing a mains frequency of 50 or 60 Hz, the electrical system requires a 16 A back-up fuse. Starting and running capacitors are not applicable for this model because it employs a direct-on-line start method.

Configurable input and output terminals are provided to allow flexible sensor connections for analog and digital inputs. Status notifications, including high water level and dry running alerts, are reported via the built-in buzzer and two output relays. Control elements include a manual mains switch and a dedicated circuit breaker for each pump.

• Thermal protection is provided by integrated pump overheating monitoring.
• Water hammer protection features include blocked quick restarts and delayed simultaneous starts.
• Alarm history log registers the twenty most recent warnings for diagnostic reference.
• Enclosure utilizes painted metal cabinet materials for physical component housing.
• CE and RCM standards are met for compliant product application.
• Custom tariff number is 8537109019 for global regulatory identification.
• Origin of manufacture is China with Oceania as the designated sales market.

Warranty: This Grundfos LC 241 controller is backed by a comprehensive 1-year manufacturer's warranty.
