This electrical panel is designed for the level control, monitoring, and protection of single direct-on-line pumps. The LC 241 1 x 9-14 DOL 3X230/400 MI OPT is suitable for indoor (mi) setups in sewage transport, municipal water supply, and industrial drainage systems. Local configuration is performed via Bluetooth Smart using the step-by-step start-up wizard in the Grundfos GO app.

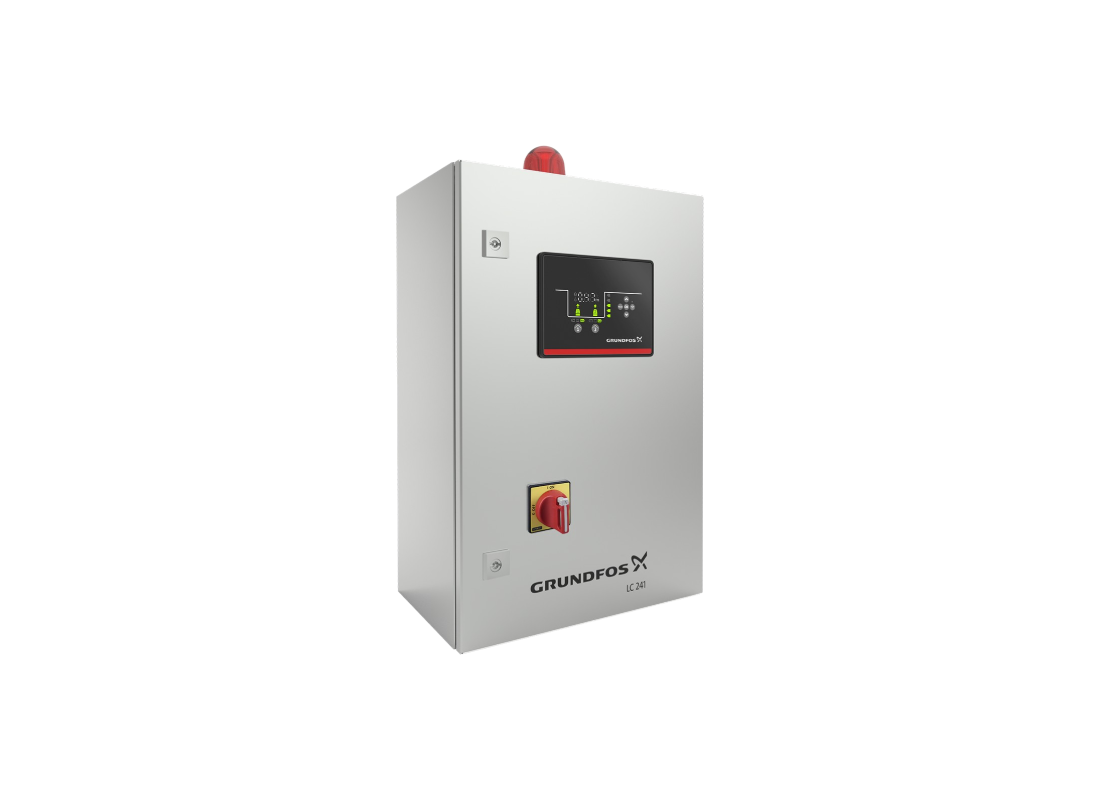

Built within a painted metal wall-mounted cabinet, this unit provides an IP54 enclosure rating for dust protection. The cabinet frame has a net weight of 30 kg and operates within an ambient temperature window spanning from -5 to 40 °C. Enclosure physical dimensions measure 350 mm width, 600 mm height, and 210 mm depth.
Operating on a single-phase 415v electrical supply is prohibited, as this controller requires a three-phase 415v supply voltage. Specified for rated currents of 9-14 A at 50 or 60 Hz mains frequency, it requires a 35 A back-up fuse. Starting and running capacitors are not applicable for this direct-on-line start model.
The layout integrates highly configurable input and output terminals to connect digital and analog level sensors. Alarms, such as dry running or high water states, trigger the integrated buzzer and two configurable output relays. Physical control is completed by a manual mains switch and an individual circuit breaker per pump.
Features- Alarm log stores the last twenty alerts for localized troubleshooting.
- Overheating monitoring provides thermal protection for pump units.
- Water hammer controls delay concurrent starts and block short restart intervals.
- Sensor failure and sensor inconsistency trigger the acoustic alert system.
- Custom tariff code is 8537109019 for global trade registration.
- CE and RCM standards are met for compliant product application.
- The model is manufactured in China for the Oceania sales region.
Warranty: This Grundfos LC 241 controller is backed by a comprehensive 1-year manufacturer's warranty.
