Grundfos LC 241 2 x 6-10 DOL 30 150 240v MI Indoor Dual Pump Wastewater Pump Controller for Tank Filling

Designed for accurate tank level control, this system manages dual pumps to maintain consistent liquid storage in indoor environments. It supervises filling tasks by monitoring analogue transmitters or float switches to ensure tanks remain replenished automatically. The unit supports water management systems requiring reliable level logic and automatic pump alternation for domestic or commercial use.

The Grundfos LC 241 2 x 6-10 DOL 30 150 1X230 MI OPT supports a 6-10 A current rating for dual 240v single-phase pumps. It incorporates 30 µF start and 150 µF run capacitors to provide the necessary torque for compatible single-phase motors. The system operates on 50/60 Hz mains frequency to ensure stable pump performance and motor protection.

Bluetooth commissioning simplifies setup via the Grundfos GO app, allowing for the wireless configuration of start and stop levels. The modular logic accepts signals from configurable level sensors and supports extra inputs for dry-running protection. Integrated alarm logging and BMS connectivity facilitate remote site monitoring and maintain a comprehensive history of system warnings and trip events.

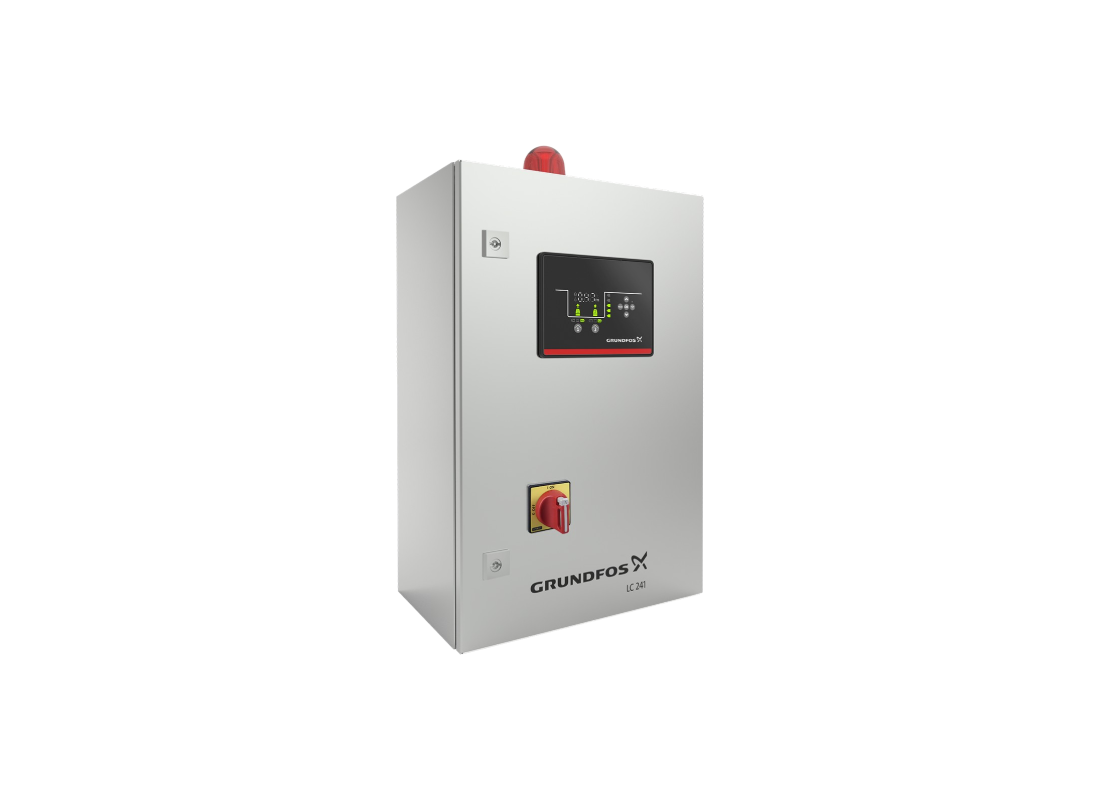

A painted metal cabinet protects the internal electronics with an IP54 enclosure class for indoor wall-mounted use. Suitable for Australian installations, this RCM compliant controller operates within an ambient temperature range of -5°C to +40°C. The construction includes a front control panel for manual resets and visibility of the wastewater system status and general operation.

Features

• Dual pump coordination logic regulates automatic alternation to balance service duty.
• Bluetooth commissioning simplifies setup for single-phase pump installations via Grundfos GO.
• Integrated 30/150 capacitors support the torque requirements of compatible motors.
• Configurable inputs allow for the integration of float switches or level probes.
• RCM compliant design ensures the electrical assembly meets Australian regulatory standards.
• BMS connectivity enables remote monitoring and integration with building automation systems.
• IP54 rated painted metal cabinet provides mechanical protection for indoor installations.
• Integrated motor protection includes dry-running sensing and alarm logging.

Warranty: This Grundfos LC 241 controller is backed by a comprehensive 1-year manufacturer's warranty.
