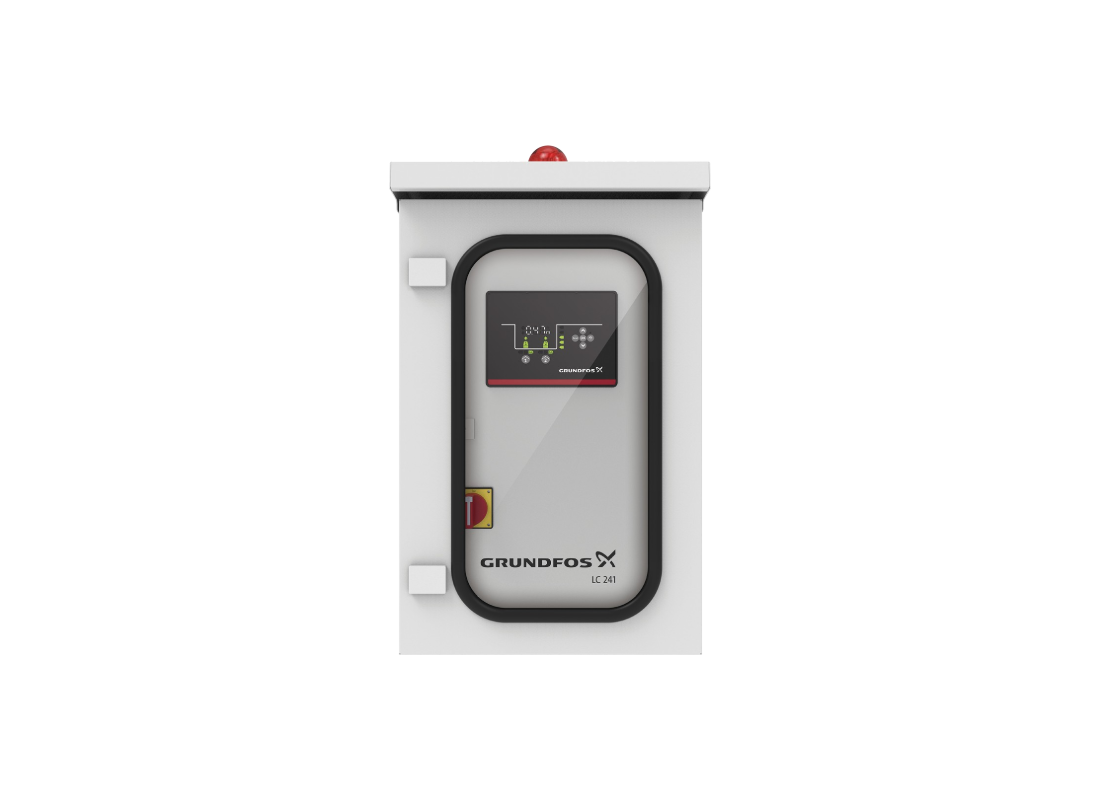

Grundfos LC 241 2 x 6-10 DOL 30 150 240v MO Outdoor Dual Pump Wastewater Pump Controller for Commercial Pumping

Intended for commercial wastewater installations, the Grundfos LC 241 2 x 6-10 DOL 30 150 1X230 MO OPT supervises control across dual-pump pits. It coordinates the management of inflow using analogue level transmitters to ensure efficient drainage in outdoor environments. The system is designed for high-demand sites where automatic alternation and precise level monitoring are required for stability.

Operating specifications support 240v single-phase Direct-on-Line (DOL) starting with a rated current of 6-10 A per pump. The unit features 30 µF and 150 µF capacitors making it suitable for compatible single-phase pump motors. It operates on 50/60 Hz mains frequency while monitoring current draw to prevent motor overload and ensure system reliability.

Bluetooth commissioning simplifies setup via the Grundfos GO app, providing wireless configuration of adjustable switching levels and motor protection. The controller accepts signals from a variety of sensors and includes logic for dry-running protection. Integrated BMS connectivity facilitates remote monitoring, helping maintain efficient pump sequencing and reducing manual intervention.

An IP65 metal enclosure protects the unit from environmental ingress in outdoor wall-mounted installations. This RCM compliant controller is designed for Australian installations and can withstand temperatures from -5°C to +40°C. The assembly includes a front-mounted operator interface for clear visual confirmation of system status and manual alarm and warning management.

Features

• IP65 rated metal cabinet provides high-level ingress protection for commercial sites.
• Dual pump sequencing coordinates alternation to balance wear for wastewater management.
• Bluetooth commissioning simplifies setup for single-phase pump installations via Grundfos GO.
• Integrated 30/150 capacitors provide required torque for compatible single-phase motors.
• RCM compliant design meets mandatory Australian safety and performance requirements.
• BMS connectivity enables remote monitoring and building management system integration.
• Configurable inputs allow for the use of float switches or analogue level transmitters.
• Front-mounted control panel offers visual confirmation of operation and levels.

Warranty: This Grundfos LC 241 controller is backed by a comprehensive 1-year manufacturer's warranty.
