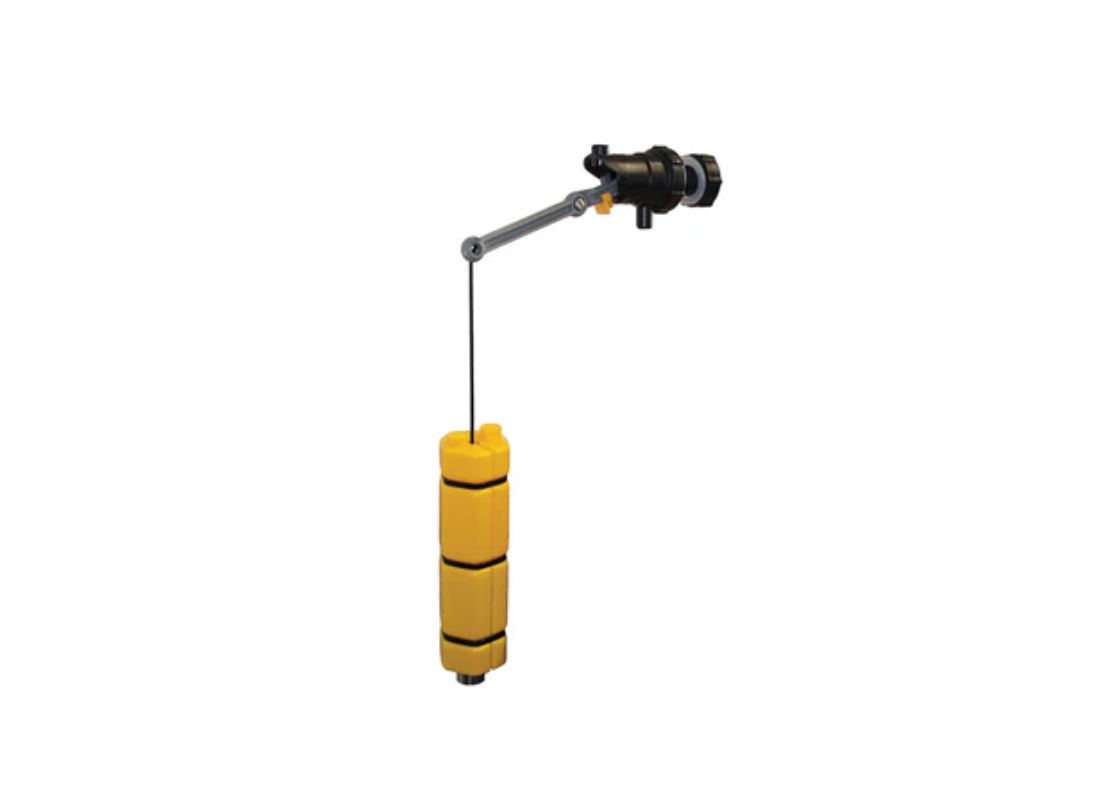

Jobe ROJO-PF Series Part Fill Float Valve – Rainwater Harvesting Valve

The Jobe ROJO-PF Series Part Fill Float Valve is a low-flow automatic valve designed specifically for rainwater harvesting tanks and storage systems. It maintains a minimum reserve water level by automatically refilling the tank during periods of low or no rainfall, ensuring essential services continue operating while preserving maximum storage capacity for future rain events.

Engineered for gravity-fed or low-pressure applications, the valve installs through the side wall of a tank above the overflow level to prevent backflow. A weighted float and cord mechanism activates the valve only when water drops below the preset level, then shuts off as the tank refills. Constructed from non-corrosive materials with an integrated non-return valve, the ROJO-PF provides reliable long-term operation with minimal maintenance.

Ideal for domestic rainwater systems, agricultural storage, and backup supply setups, this valve delivers dependable level control without requiring electrical power.

FEATURES

• Low-flow design for rainwater harvesting tanks

• Automatically maintains a minimum reserve water level

• Operates in gravity-fed and low-pressure systems

• Side-wall mounting above overflow level prevents backflow

• Weighted float with cord for reliable activation

• Built-in non-return valve for added protection

• Compact, non-corrosive construction

• Compatible with flow restrictors

• Manual lock-off switch for servicing or adjustments
