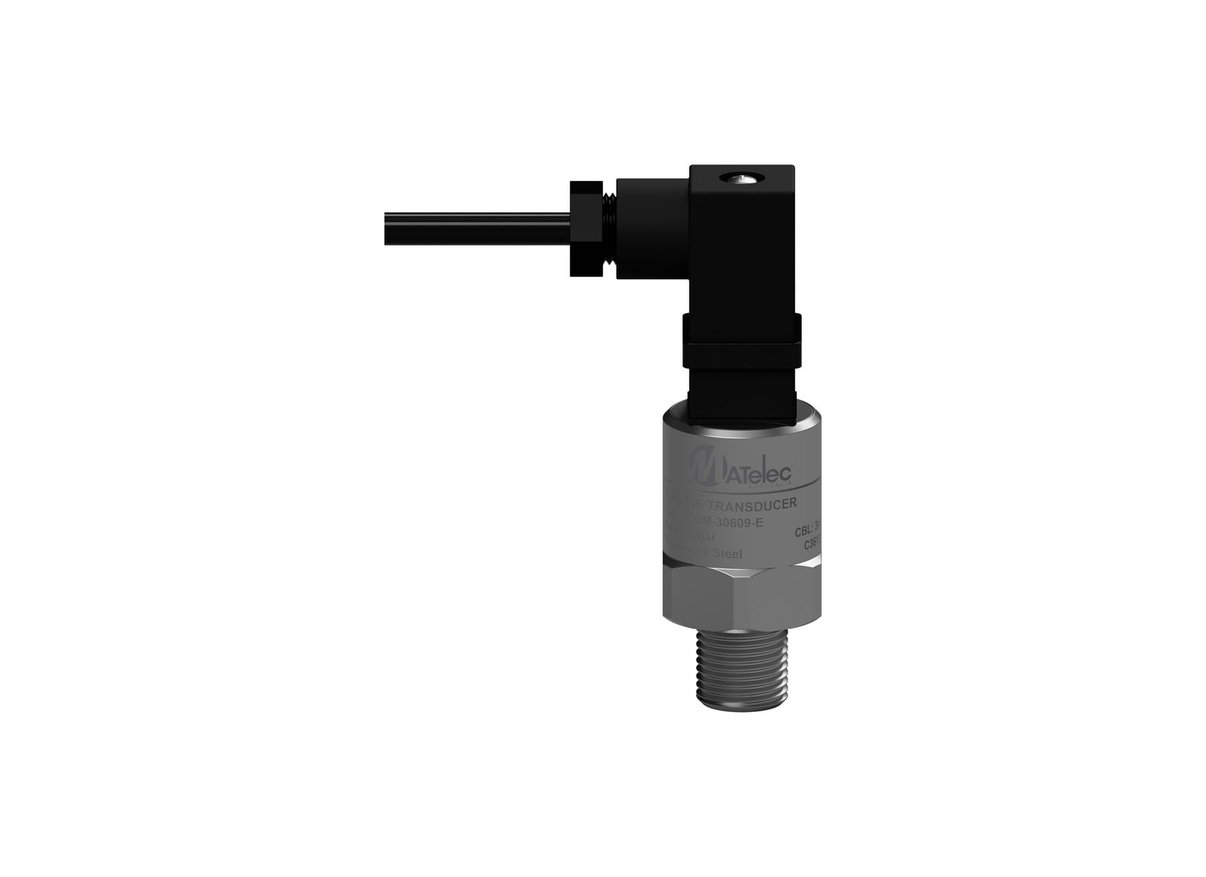

MATelec COM-30604-E-SE 316SS IP66 0-25bar Pressure Transducer

Pipe-mounted pressure measurement in water distribution and process systems requires a transducer that can withstand the hydraulic forces present in mains pressure applications, and the COM-30604-E-SE provides a 0-25 bar (0-2500 kPa) measurement range using a ceramic sensor element within a 316 stainless steel housing. The transducer is designed to be mounted directly in a pipe via the NPT 1/4 inch pressure connection, providing a 4-20 mA analogue output signal that interfaces with building management systems, pump controllers, or data logging instruments.

The ceramic sensor element delivers accuracy of plus or minus 1.0% of full scale, with an overload pressure rating of 1.5 times full scale to withstand transient pressure spikes without damage. Supply voltage is 12-30 Vdc loop powered, and the 4-20 mA output signal is proportional to the measured pressure across the 0-25 bar range. Response time is 10 ms, allowing the transducer to track rapid pressure changes in system conditions.

Construction uses a 316 stainless steel housing with an IP66 protection rating, measuring 24 mm in diameter by 46 mm in length with a 37 mm height. The electrical connection is a DIN 9.4 mm connector with a 3 m cable, and the pressure connection uses NPT 1/4 inch threads. Working temperature range spans from -20°C to 80°C, and the operating life exceeds one million pressure cycles, providing long-term service in continuous monitoring applications.

Features

• 0-25 bar (0-2500 kPa) measurement range with ceramic sensor element
• 4-20 mA analogue output signal loop powered at 12-30 Vdc
• 316 stainless steel housing with IP66 protection rating
• NPT 1/4 inch pressure connection for direct pipe mounting
• Accuracy of plus or minus 1.0% full scale with 10 ms response time
• Operating life exceeding one million pressure cycles
• 3 m cable with DIN 9.4 mm electrical connector
