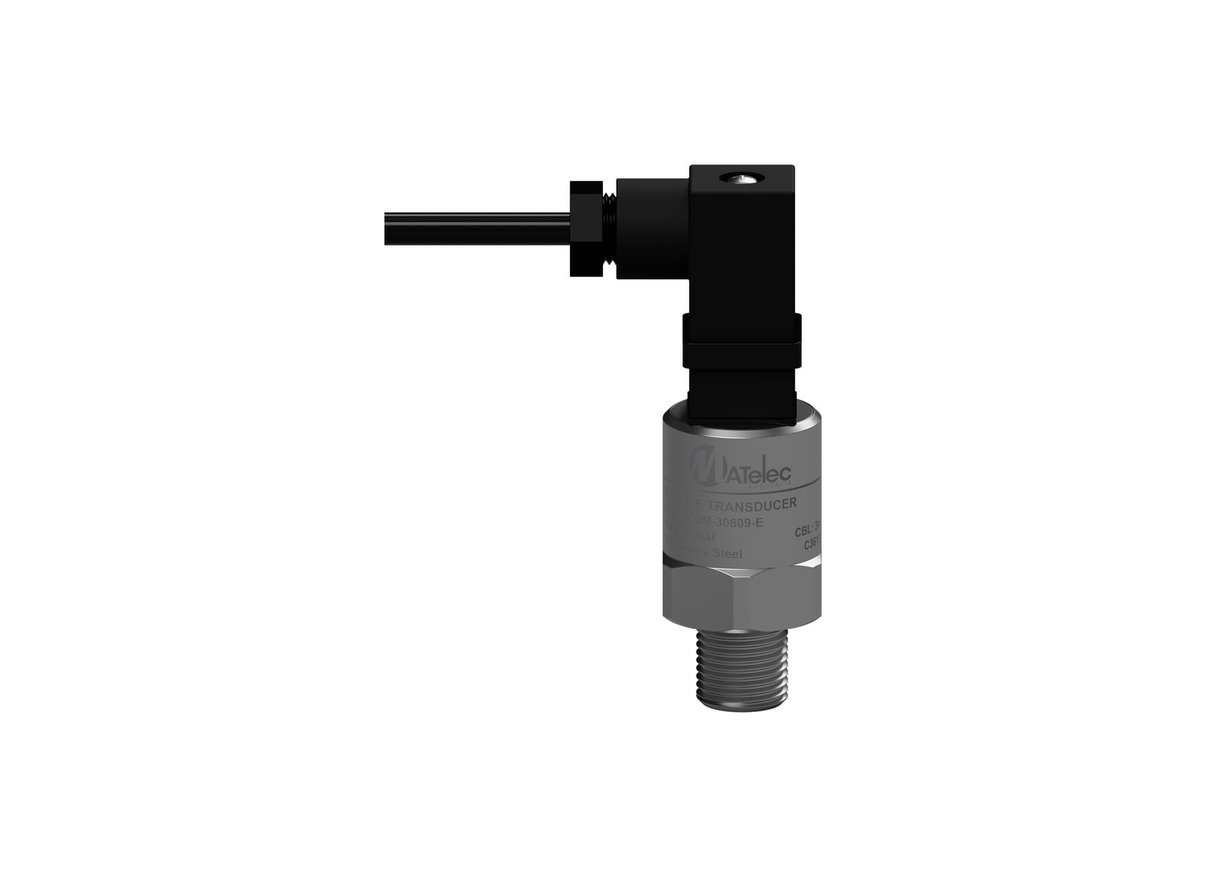

MATelec COM-30608-E-SE 316SS IP66 0-16bar Pressure Transducer

Medium range pressure measurement across water distribution networks and industrial process lines calls for a transducer with a measurement span that covers the operating pressures typical of these systems, and the COM-30608-E-SE provides a 0-16 bar (0-1600 kPa) range using a ceramic sensor element within a 316 stainless steel housing. The transducer is designed for pipe mounting via the NPT 1/4 inch pressure connection, and the 4-20 mA analogue output signal delivers a proportional pressure reading to connected controllers or instrumentation.

Accuracy is rated at plus or minus 1.0% of full scale across the 0-16 bar range, with an overload pressure rating of 1.5 times full scale to absorb transient pressure spikes without sensor damage. The ceramic sensor element provides measurement consistency with resistance to drift over the operating life, which exceeds one million pressure cycles. Supply voltage is 12-30 Vdc loop powered, and the response time of 10 ms enables real-time tracking of system pressure variations.

The 316 stainless steel housing carries an IP66 protection rating and measures 24 mm in diameter by 46 mm in length by 37 mm in height. A DIN 9.4 mm electrical connector with a 3 m cable provides the signal connection, and the NPT 1/4 inch pressure port accepts standard pipe fitting accessories. Working temperature range spans from -20°C to 80°C, covering the environmental conditions encountered in most water and process installations.

Features

• 0-16 bar (0-1600 kPa) measurement range with ceramic sensor element
• 4-20 mA analogue output signal loop powered at 12-30 Vdc
• 316 stainless steel housing with IP66 protection rating
• NPT 1/4 inch pressure connection for direct pipe mounting
• Accuracy of plus or minus 1.0% full scale with 10 ms response time
• Operating life exceeding one million pressure cycles
• 3 m cable with DIN 9.4 mm electrical connector
