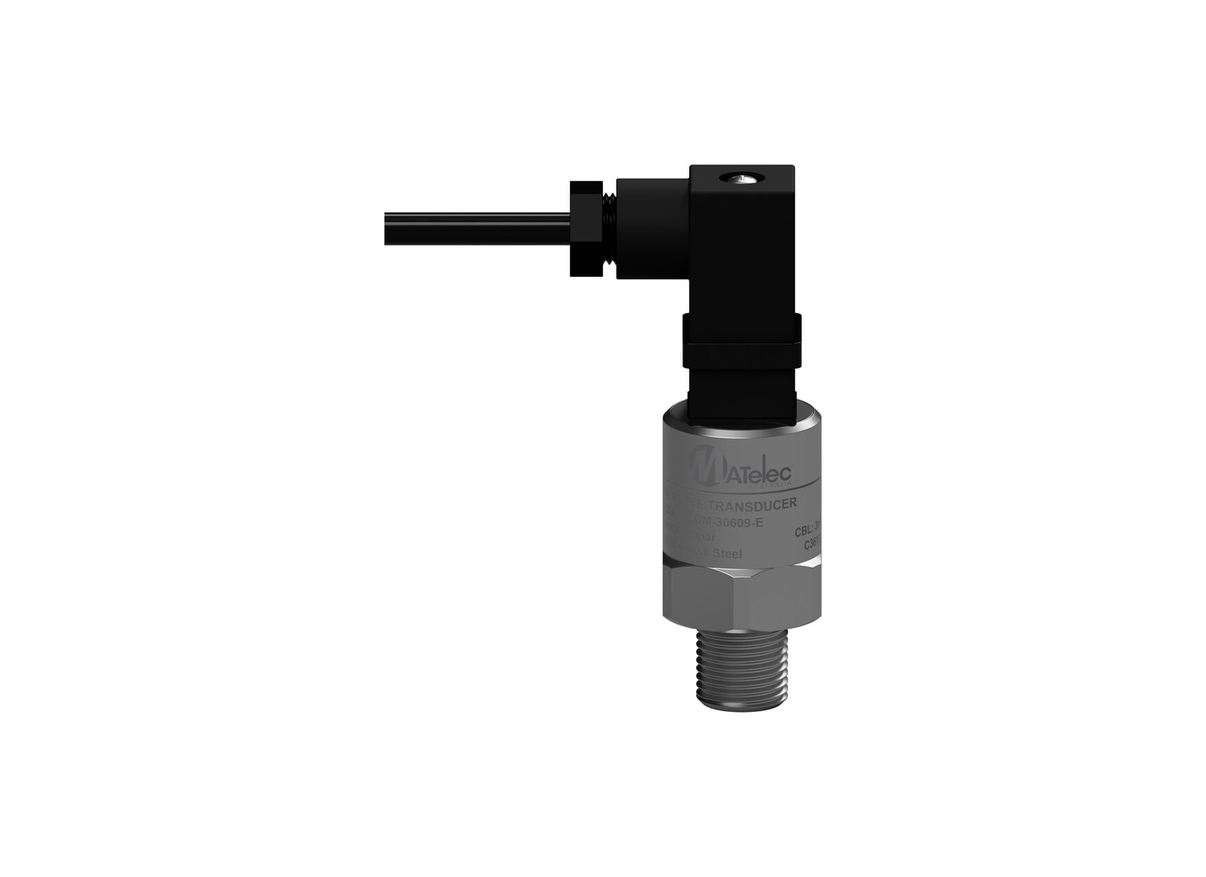

MATelec COM-30609-E-SE 316SS IP66 0-10bar Pressure Transducer

Pipe-mounted pressure measurement in systems operating within the 0-10 bar range is addressed by the COM-30609-E-SE, which uses a ceramic sensor element to deliver a 4-20 mA output signal proportional to the measured pressure across a 0-10 bar (0-1000 kPa) span. The 316 stainless steel housing mounts directly in a pipe through the NPT 1/4 inch pressure connection, and the transducer is powered by a 12-30 Vdc loop supply that also carries the analogue output signal to the connected instrumentation.

Accuracy is specified at plus or minus 1.0% of full scale, with an overload pressure rating of 1.5 times full scale to withstand transient pressure events without permanent sensor deformation. The ceramic sensor provides measurement consistency with resistance to drift, and the operating life exceeds one million pressure cycles. Response time is 10 ms, allowing the transducer to track pressure changes in real time across the 0-10 bar measurement range.

Construction uses a 316 stainless steel housing with IP66 protection, measuring 24 mm diameter by 46 mm length by 37 mm height. The electrical connection is a DIN 9.4 mm connector with a 3 m cable, and the pressure port uses NPT 1/4 inch threads. Working temperature range is -20°C to 80°C, and the housing material provides corrosion resistance in raw water, rain water, potable water, and ground water service conditions.

Features

• 0-10 bar (0-1000 kPa) measurement range with ceramic sensor element
• 4-20 mA analogue output signal loop powered at 12-30 Vdc
• 316 stainless steel housing with IP66 protection rating
• NPT 1/4 inch pressure connection for direct pipe mounting
• Accuracy of plus or minus 1.0% full scale with 10 ms response time
• Operating life exceeding one million pressure cycles
• 3 m cable with DIN 9.4 mm electrical connector
