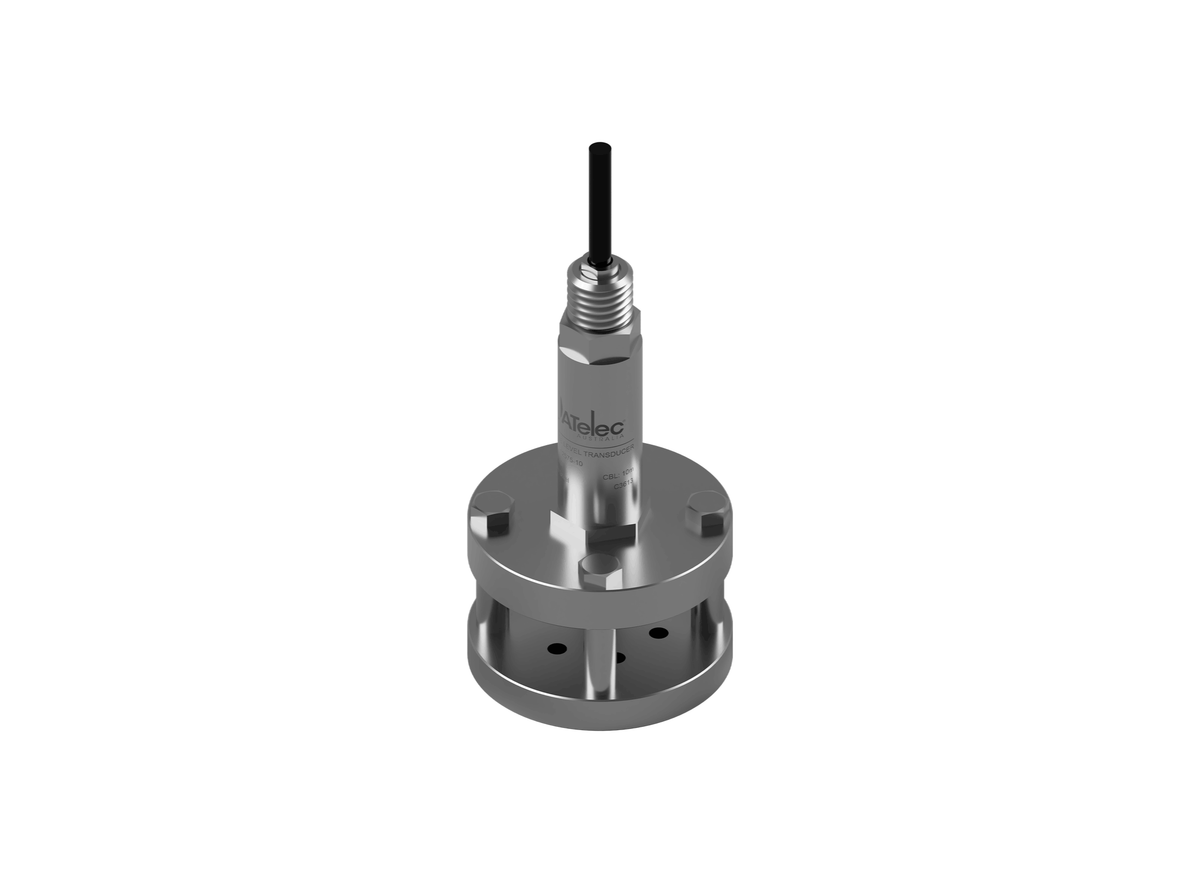

MATelec FPC-12570-50-SE Sewage 0-10m Depth 50m Cable Hydrostatic Level Transducer

The supplied MATelec sewage sheet defines the FPC-12570 series as a 0–10m hydrostatic level transducer range for sewage, wastewater and trade waste. It does not, however, list the FPC-12570-50-SE code in its model table, so the requested 50m cable configuration cannot be verified from the supplied sheet.

The technical specification published for the FPC-12570 sewage range uses a ceramic diaphragm and gives an accuracy of ±0.5% F.S. It also specifies an overload pressure of 1.5 times full scale for the range.

Electrical characteristics are stated as 12–30Vdc supply, 4–20mA DC output and 10ms response time. The connection is three-wire with a breather tube. The connection diagram identifies blue as -ve and also shows red and yellow wires, and cautions that the breather tube must not be kinked or obstructed.

The published construction uses a 316L stainless steel housing with IP68 protection, an operating range of -10°C to 70°C and vibration of 20g over 20–5000Hz. The cable specification for the range is Ø7.5mm OD PUR polyurethane, and operating life is greater than 1×10^8 pressure cycles. Excellent repeatability, long-term stability and anti-interference ability are also stated for the range, but the exact 50m cable length for FPC-12570-50-SE is not confirmed by the supplied model table. The dimensional drawing includes 160mm, Ø28mm, 10mm, 10mm, Ø10mm, 47mm and Ø99mm callouts, while the installation diagram specifies 100mm and 50mm minimum clearances at the sensing end.

Features

• FPC-12570 range specified for 0–10m depth.
• Ceramic diaphragm sensing element.
• 316L stainless steel housing.
• IP68 protection classification.
• Ø7.5mm OD PUR polyurethane cable specification for the range.
• 12–30Vdc supply with 4–20mA DC output.
• Three-wire connection with breather tube.
• Exact 50m cable configuration is not listed in the supplied model table.
