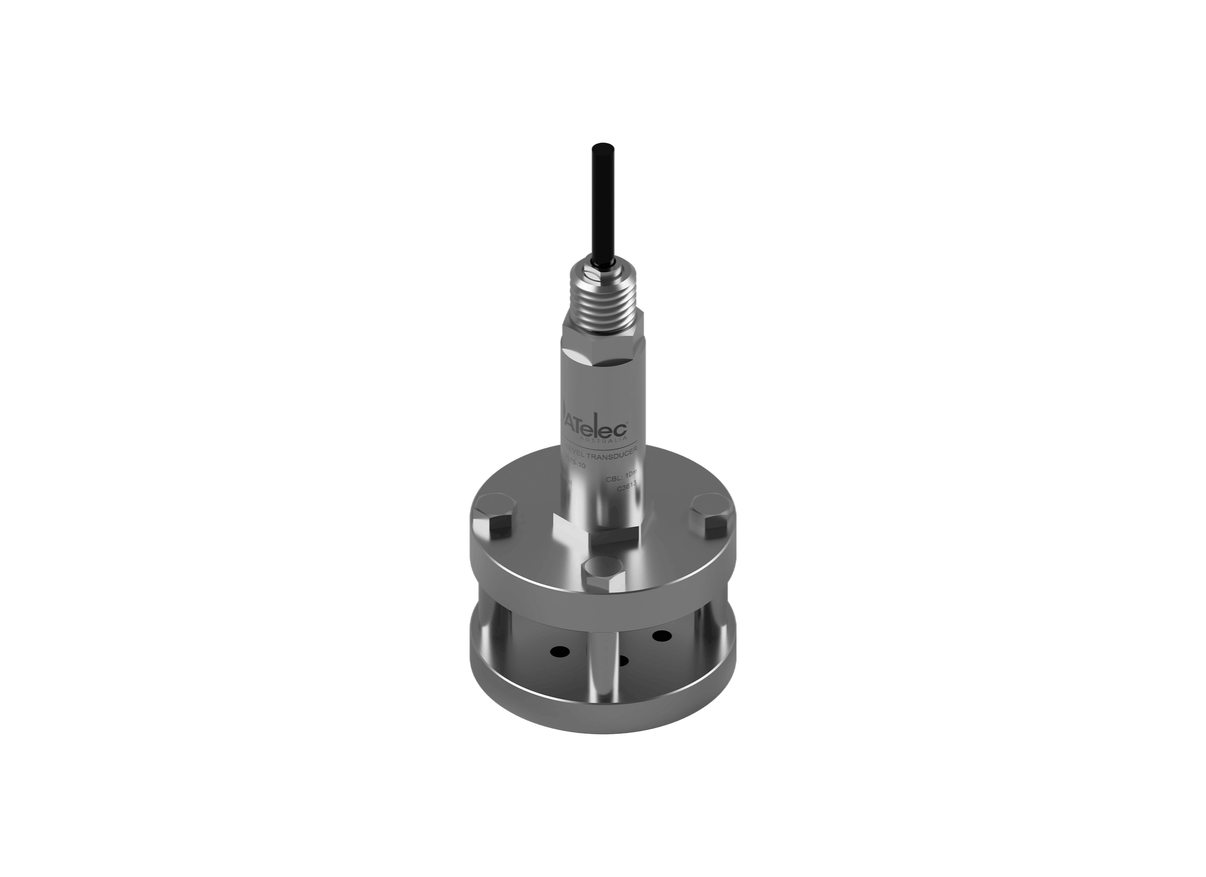

MATelec FPC-12575-10-SE Sewage 0-4m Depth 10m Cable Hydrostatic Level Transducer

Across a 0–4m sewage depth range, the MATelec FPC-12575-10-SE provides the 10m cable configuration listed in the supplied range table. The FPC-12575 series is specified for sewage, wastewater and trade waste level measurement.

Measurement is based on a ceramic diaphragm, with MATelec specifying ±0.5% F.S accuracy. The published overload pressure is 1.5 times full scale, adding a defined pressure limit to the sensing specification.

Signal output is 4–20mA DC and the required supply is 12–30Vdc, with a 10ms response time. A three-wire electrical connection is used with a breather tube, and the MATelec diagram indicates that the tube must not be kinked or obstructed.

The 316L stainless steel housing is protected to IP68, with an operating range of -10°C to 70°C and vibration specified at 20g over 20–5000Hz. The cable is Ø7.5mm OD PUR polyurethane, and operating life is specified at greater than 1×10^8 pressure cycles. MATelec also states excellent repeatability, long-term stability and anti-interference ability for the sewage range. The dimensional drawing includes 160mm, Ø28mm, 10mm, 10mm, Ø10mm, 47mm and Ø99mm callouts, while the installation diagram specifies 100mm and 50mm minimum clearances at the sensing end.

Features

• 0–4m sewage depth range with 10m cable.
• 316L stainless steel housing with IP68 protection.
• Ceramic diaphragm sensing element.
• Ø7.5mm OD PUR polyurethane cable.
• 20g vibration specification over 20–5000Hz.
• Operating life greater than 1×10^8 pressure cycles.
• Excellent repeatability and long-term stability stated for the range.
• Excellent anti-interference ability stated for the range.
