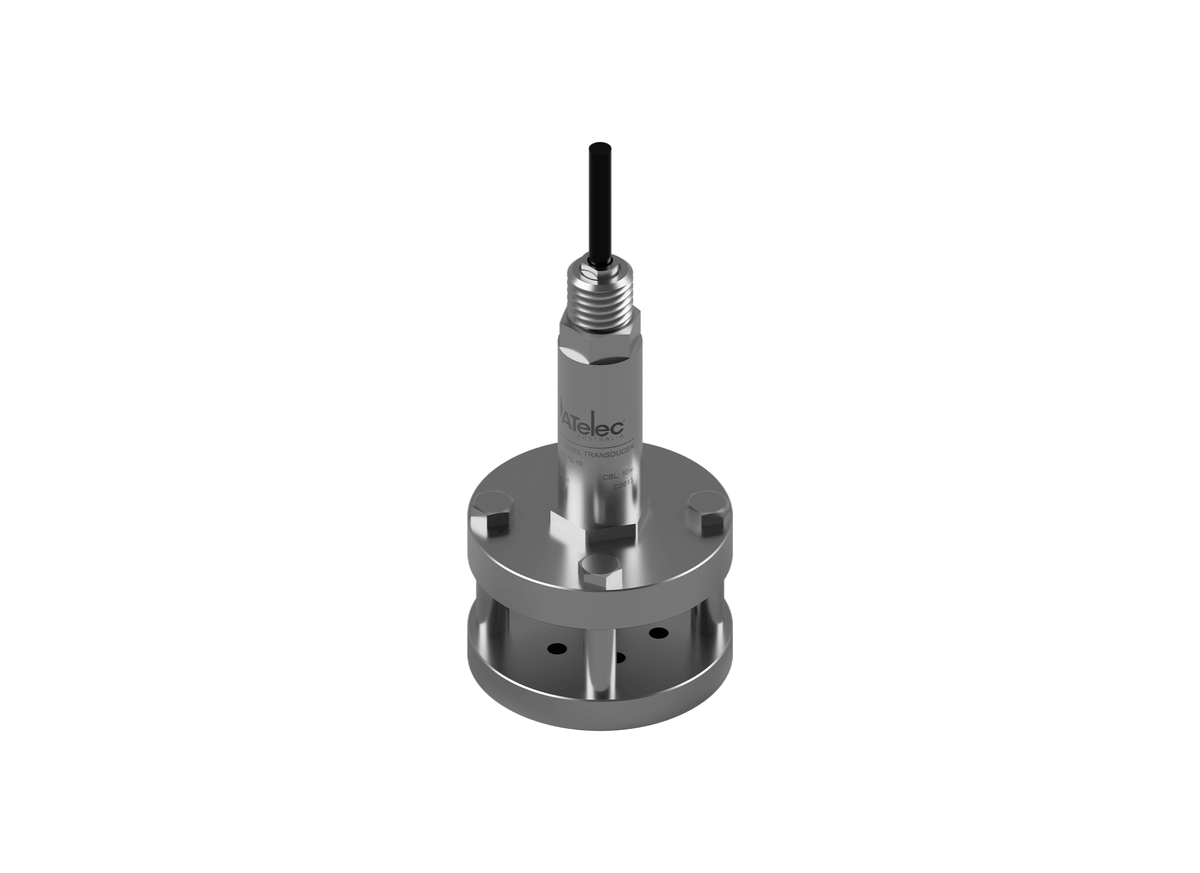

MATelec FPC-12575-E-SE Sewage 0-4m Depth 24m Cable Hydrostatic Level Transducer

The supplied MATelec sewage sheet establishes the FPC-12575 range at a 0–4m depth range for sewage, wastewater and trade waste level measurement. The exact code FPC-12575-E-SE is not included in the model table, so its individual cable configuration cannot be confirmed from the supplied source.

For the published FPC-12575 configurations, MATelec specifies a ceramic diaphragm with ±0.5% F.S accuracy and an overload pressure of 1.5 times full scale. These specifications apply to the documented sewage transducer range.

Electrical characteristics listed for the range are a 12–30Vdc supply, 4–20mA DC output and 10ms response time. The connection uses three wires with a breather tube, and the supplied diagram states that the breather tube must not be kinked or obstructed.

The documented construction includes a 316L stainless steel housing, IP68 protection, -10°C to 70°C operating temperature and vibration of 20g over 20–5000Hz. The cable specification is Ø7.5mm OD PUR polyurethane. The sheet lists FPC-12575-24-SE, rather than FPC-12575-E-SE, for the 24m configuration, so that association requires confirmation before publication. The dimensional drawing includes 160mm, Ø28mm, 10mm, 10mm, Ø10mm, 47mm and Ø99mm callouts, while the installation diagram specifies 100mm and 50mm minimum clearances at the sensing end.

Features

• FPC-12575 sewage range specified for 0–4m depth.
• Ceramic diaphragm sensing element.
• 316L stainless steel housing.
• IP68 protection classification.
• Ø7.5mm OD PUR polyurethane cable specification for the range.
• 12–30Vdc supply with 4–20mA DC output.
• Three-wire connection with breather tube.
• Exact cable configuration for FPC-12575-E-SE is not listed in the supplied model table.
