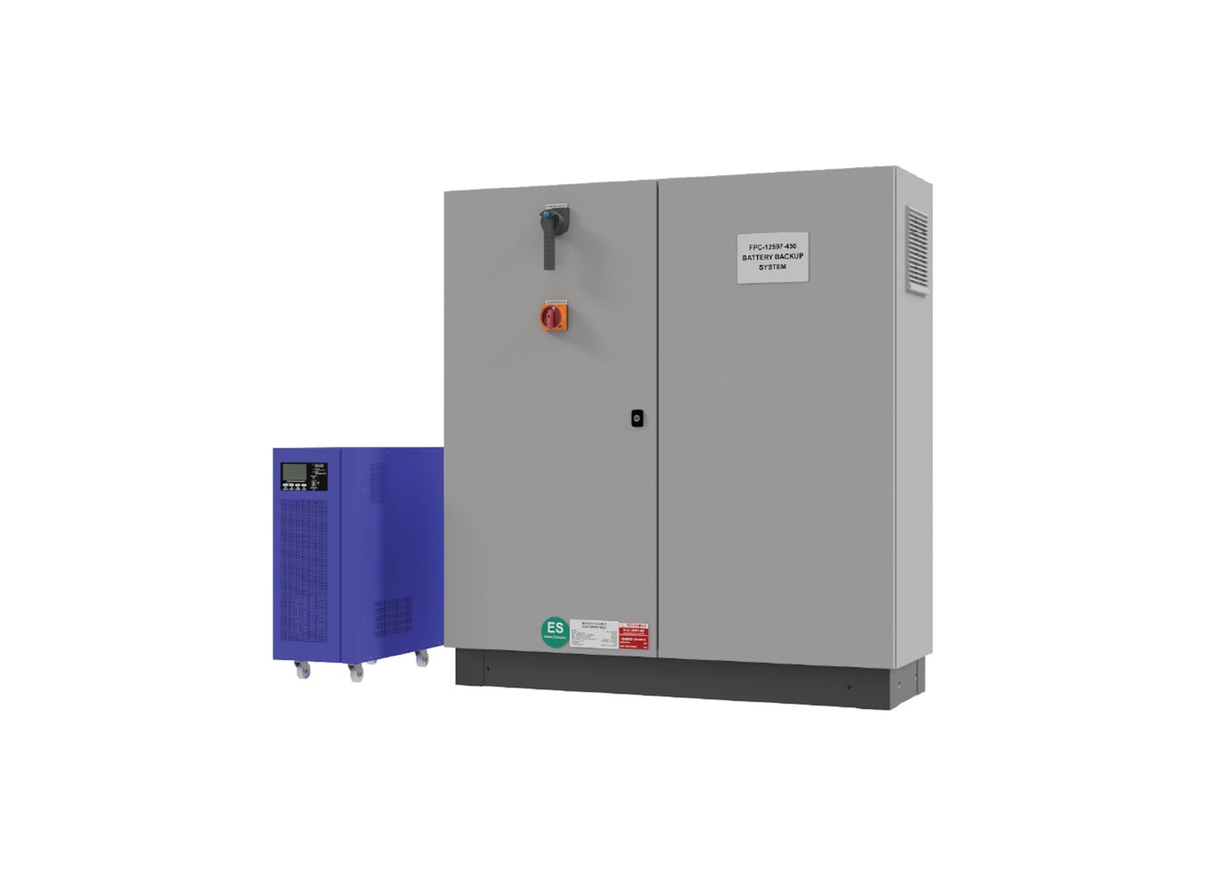

MATelec FPC-12597-450 Mild Steel IP44 1PH 8kVA Battery Back-up System

Where both high inverter capacity and extended battery runtime are essential, the FPC-12597-450 combines the 8kVA inverter platform with a 450 A/h battery bank to sustain loads over longer outage durations. The single phase 230Vac mains input feeds the inverter and charges the battery set, with automatic changeover to battery supply when mains failure is detected. The constant 230Vac output powers pump controllers, BMS panels, or other loads that require uninterrupted operation.

Sixteen 6V batteries connected in series produce the 48Vdc rail for the inverter, and the system accepts a maximum starting current of 70 Amps with a maximum run current of 35 Amps. The inverter unit is housed in its own enclosure measuring 650 x 250 x 505 mm, separate from the main battery and control cabinet. This configuration distributes the thermal load and simplifies service access to the power electronics and battery charger modules.

The main enclosure measures 1200 x 800 x 400 mm, constructed from powder coated mild steel with IP44 protection. A padlockable DC battery isolator switch and battery protection fuse provide isolation on the DC side, and din rail terminal blocks accept the AC supply and load conductors. The battery charger, power monitor, and control interface are located within the inverter enclosure, with the battery status readable on the inverter display at all times.

Features

• 8kVA inverter with 450 A/h battery bank for extended runtime during outages
• Sixteen 6V batteries in series providing 48Vdc supply to the inverter
• Separate inverter enclosure measuring 650 x 250 x 505 mm for service access
• IP44 rated powder coated mild steel main enclosure at 1200 x 800 x 400 mm
• Padlockable DC battery isolator switch with battery protection fuse
• Automatic changeover and recharge with intelligent over-current protection
• Battery low voltage protection guards against deep discharge of the battery cells
