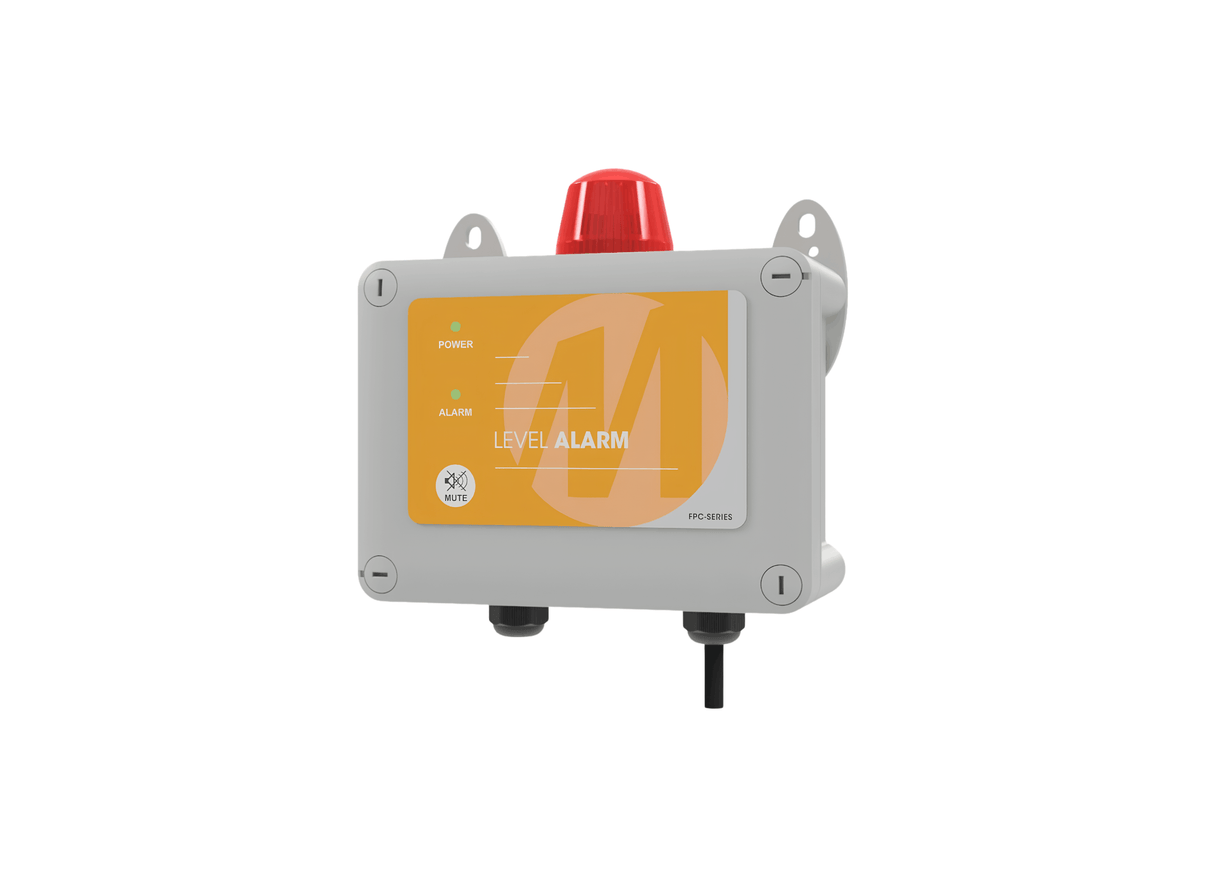

MATelec FPC-12651-QP Polycarbonate IP54 1PH Liquid Level Alarm with Quick Plug Float

A quick plug float switch connection sets the MATelec Australia FPC-12651-QP Liquid Level Alarm apart from standard models. The unit provides warning indication when a water storage tank reaches either empty or full condition. Housed in an IP54 rated polycarbonate enclosure with mounting brackets for wall installation, the system simplifies sensor installation.

When the set-point is reached, the alarm produces both visual strobe and audible buzzer indication. A keypad interface with status indicator lights and an alarm mute button provides local control. The auto-silencing feature silences the buzzer after five minutes if not muted, then sounds briefly every five minutes. This function can be disabled if continuous alarm is required.

The unit operates from a single phase 230Vac supply and accepts a digital 12Vdc input from a float switch. A BMS volt-free output provides a common fault signal with both normally open and normally closed contacts. Low voltage control and input circuitry ensures safe operation for the connected sensor. A 10 Amp 3 pin 1.5m power supply lead is included.

All electrical connections must be carried out by a suitably qualified and registered electrician in accordance with relevant electrical standards. The compact polycarbonate enclosure dimensions are 175x130x80mm.

FEATURES

• Quick plug float switch connection for simplified installation
• IP54 rated polycarbonate enclosure with mounting brackets
• Visual strobe and audible buzzer alarm indication
• Keypad interface with status indicator lights
• Alarm mute/reset/test button for local control
• Digital 12Vdc input for float switch
• BMS volt-free output with NO and NC contacts
• Auto-silencing alarm with optional continuous mode
