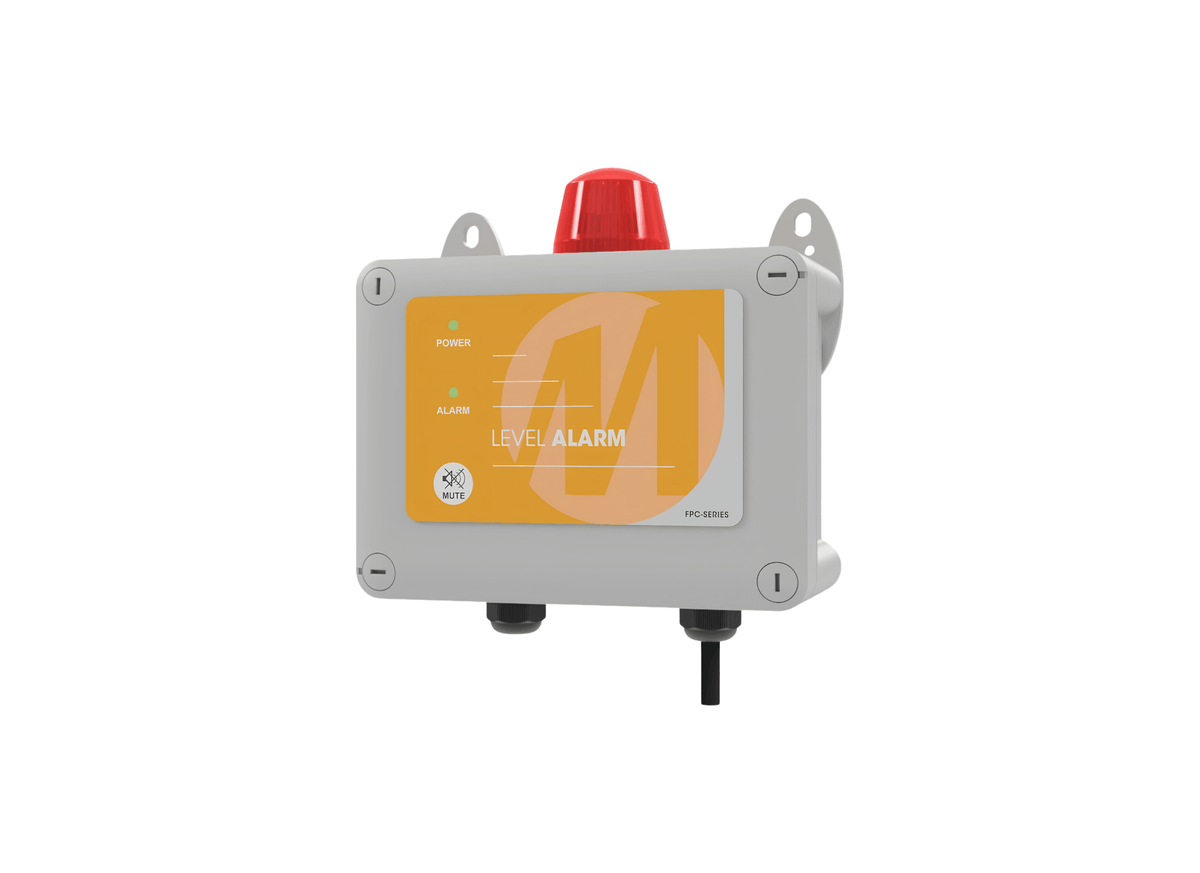

MATelec FPC-12654 IP54 1PH Liquid Level Alarm with Auto-Pump Connection

Auto-pump connection capability distinguishes the MATelec Australia FPC-12654 Liquid Level Alarm. This standard set-point alarm provides warning indication when a water storage tank reaches either empty or full condition. The unit operates from a single phase 230Vac supply and is housed in an IP54 rated enclosure measuring 200x160x95mm.

When the set-point is reached, the alarm provides visual strobe and audible buzzer indication. The auto-pump connection functionality allows the alarm to interface with pump control systems. A digital input accepts signals from a float switch for level detection. Low voltage control and input circuitry ensures safe operation for the connected sensors.

Status indicator lights display power on and alarm conditions. An alarm mute button provides local silencing. The auto-silencing feature silences the buzzer after five minutes if not muted, then sounds briefly every five minutes. This feature can be disabled if continuous alarm is required.

Installation requires a single phase 230Vac supply. Electrical connections must be carried out by a suitably qualified and registered electrician in accordance with relevant standards.

FEATURES

• Auto-pump connection for pump system interface
• Standard set-point alarm with strobe indication
• IP54 rated enclosure measuring 200x160x95mm
• Digital input for float switch
• Status indicator lights for system monitoring
• Alarm mute button for local silencing
• Auto-silencing alarm with optional continuous mode
• Low voltage control and input circuitry
