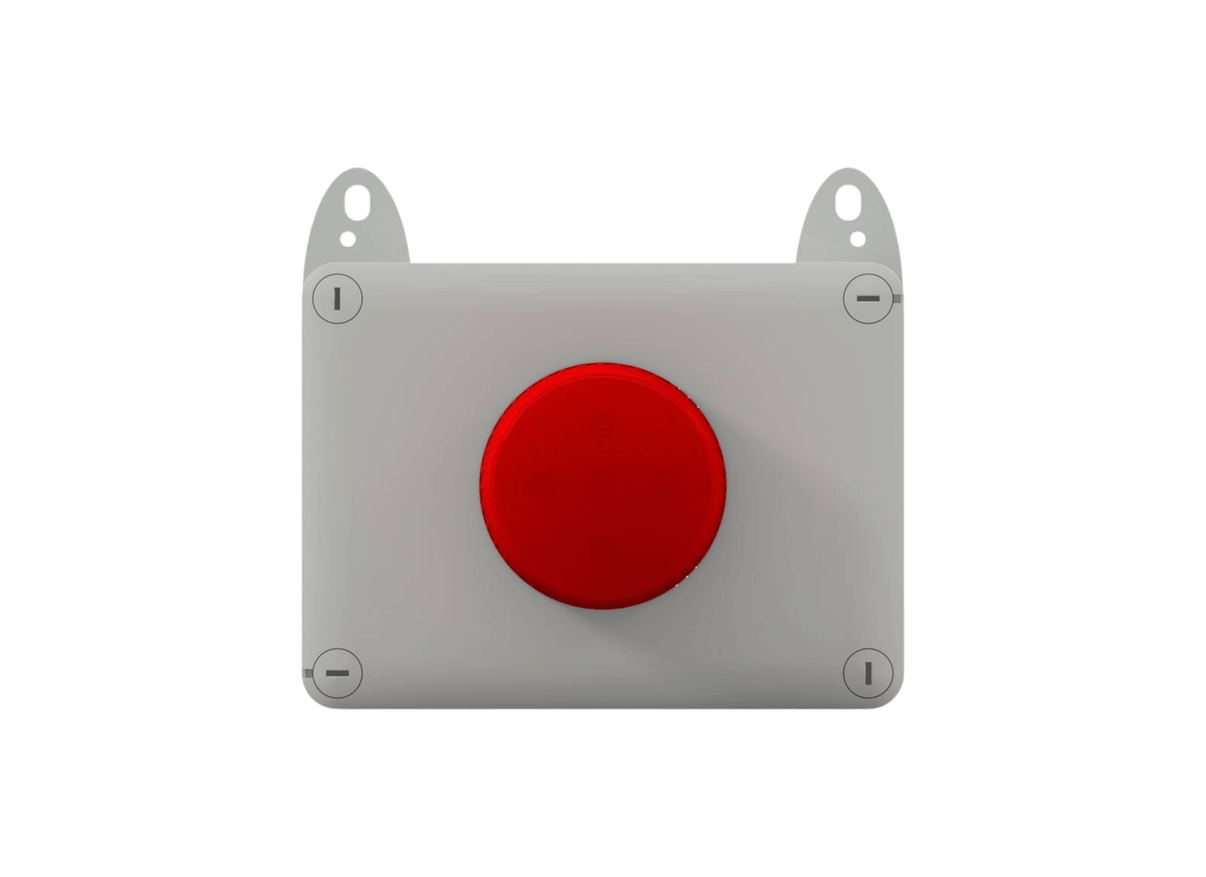

MATelec FPC-12655 12/24VDC Single Phase Liquid Level Alarm

Low voltage systems are the primary application for the MATelec Australia FPC-12655 Liquid Level Alarm. Operating from a 12/24Vdc supply, the unit provides warning indication when a water storage tank reaches either empty or full condition. The alarm is housed in a compact enclosure.

A digital input from a float switch activates the alarm, producing visual strobe and audible buzzer indication. Low voltage control and input circuitry provides safe operation for the connected sensor. Status indicator lights display power on and alarm conditions for system monitoring.

An alarm mute button provides local silencing. The auto-silencing feature silences the buzzer after five minutes if not muted, then sounds briefly every five minutes.

Installation requires connection to a 12/24Vdc supply. All electrical connections must be carried out by a suitably qualified and registered electrician in accordance with relevant electrical standards.

FEATURES

• Liquid level alarm with 12/24Vdc supply
• Digital input for float switch connection
• Visual strobe and audible buzzer alarms
• Alarm mute button for local silencing
• Auto-silencing alarm with brief periodic sounding
• Status indicator lights for power and alarm
• Low voltage control and input circuitry
