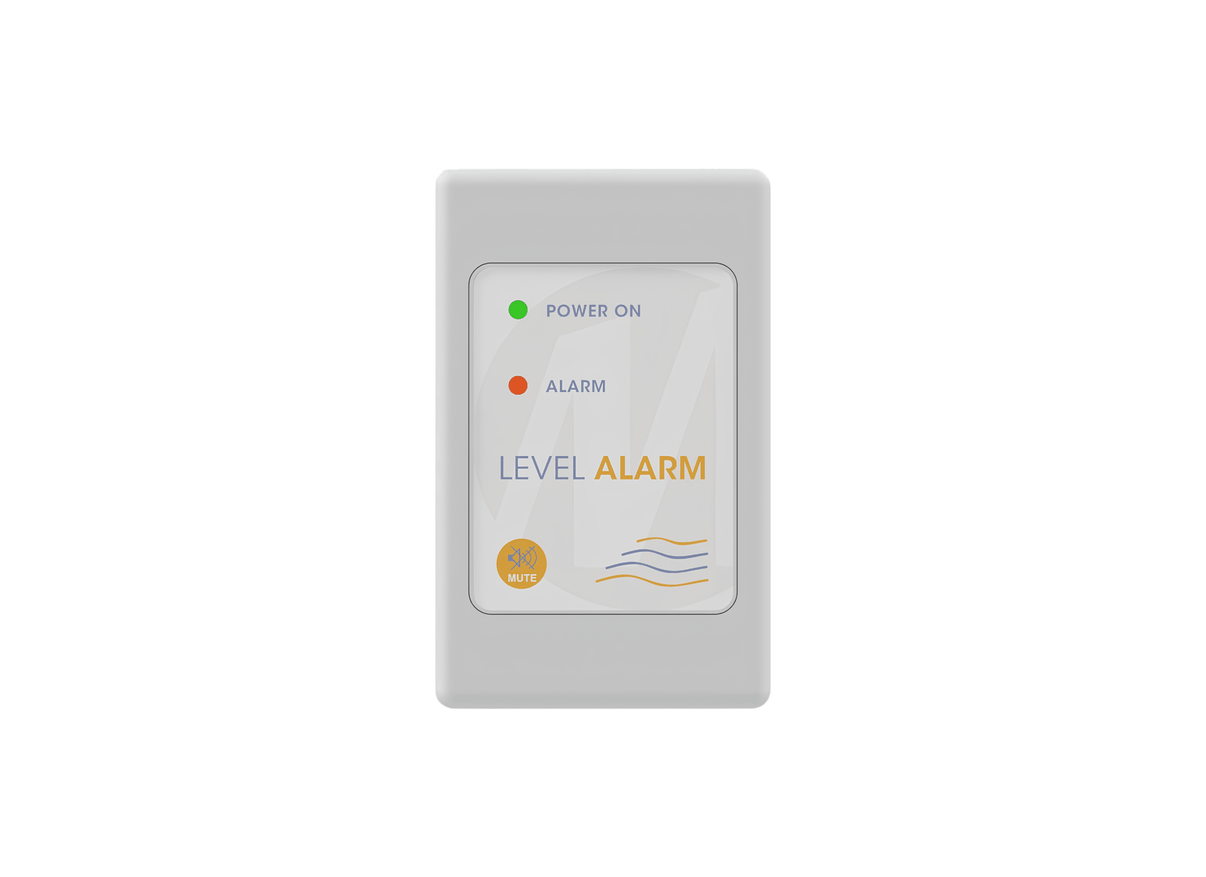

MATelec FPC-12656 Single Phase Liquid Level Alarm Flush Mount

Flush mounting capability makes the MATelec Australia FPC-12656 Liquid Level Alarm suitable for panel and wall installations. This wall plate style panel includes a C clip mounting bracket for secure installation. The unit provides warning indication when a water storage tank reaches either empty or full condition.

A keypad interface with status indicator lights and an alarm mute button provides local control. The alarm operates from a single phase 230Vac supply and accepts a digital 12Vdc input from a float switch. A DIP switch selects normally open or closed alarm configuration for installation flexibility.

An audible buzzer sounds when the alarm is activated, with an auto-silencing feature that silences the buzzer after five minutes if not muted, then sounds briefly every five minutes. A mute reset function automatically resets the mute after 12 hours, causing the buzzer to resume sounding if the alarm condition persists. Silent mode disables the buzzer for 12 hours if the input is constantly switching.

Installation requires a single phase 230Vac supply. The flush mount design suits panel or wall installations. Connections must be carried out by a suitably qualified and registered electrician in accordance with relevant electrical standards.

FEATURES

• Flush mount design with C clip mounting bracket
• Digital 12Vdc input for float switch connection
• DIP switch for NO or NC alarm configuration
• Audible buzzer with auto-silencing feature
• Mute reset after 12 hours of silencing
• Silent mode for constant input switching conditions
• Keypad interface with status indicator lights
• Alarm mute button for local silencing
