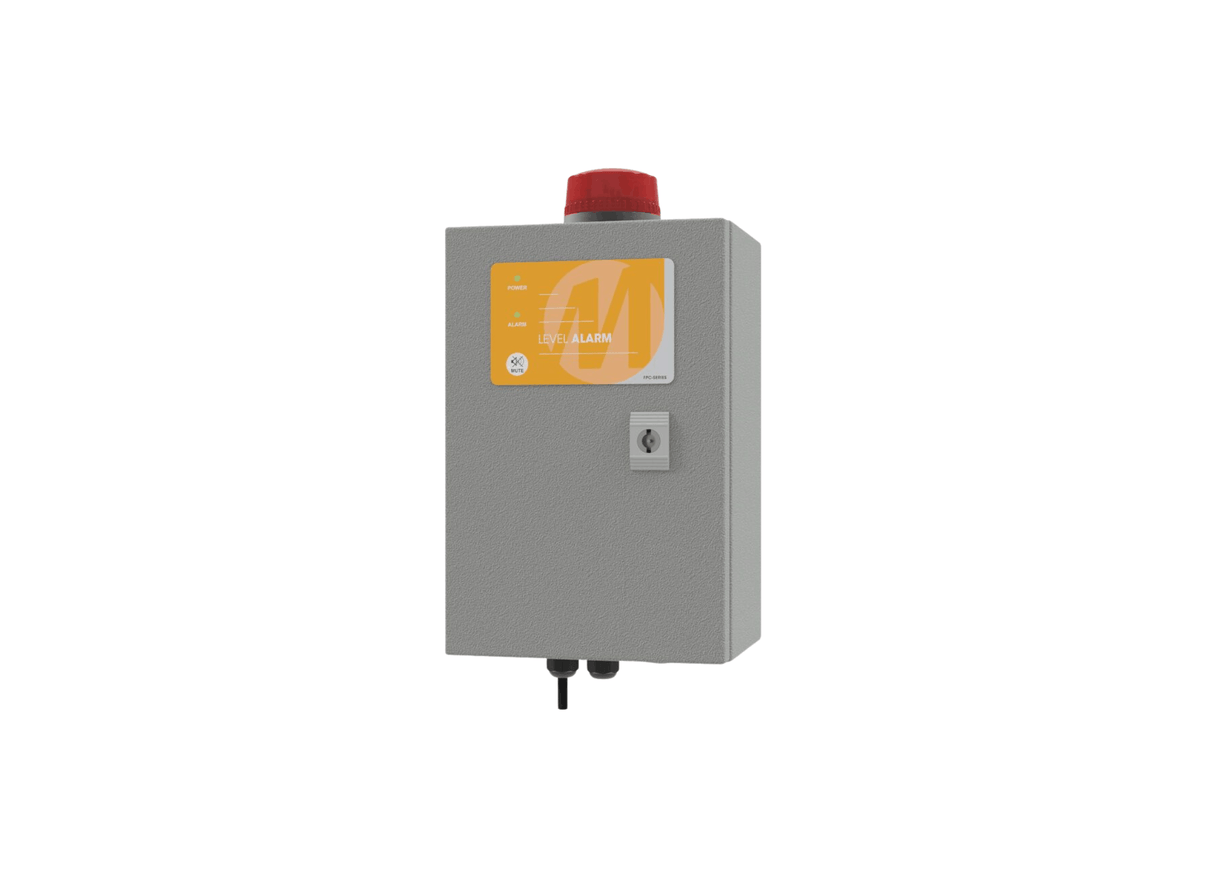

MATelec FPC-12658 IP54 Single Phase Liquid Level Alarm with Pre-Wired Float

A pre-wired float switch comes supplied with the MATelec Australia FPC-12658 Liquid Level Alarm. This standard set-point alarm provides warning indication when a water storage tank reaches either empty or full condition. The unit is housed in an IP54 rated enclosure with mounting brackets for wall installation.

Connecting the alarm is straightforward with the pre-wired float - no separate sensor cabling is required. The alarm operates from a single phase 230Vac supply. When the set-point is reached, visual strobe and audible buzzer alarms activate. Low voltage control and input circuitry ensures safe operation.

Status indicator lights display power on and alarm conditions. An alarm mute button provides local silencing. The auto-silencing feature silences the buzzer after five minutes if not muted, then sounds briefly every five minutes. This feature can be disabled if continuous alarm is required.

Installation requires a single phase 230Vac supply. Connections must be carried out by a suitably qualified and registered electrician in accordance with relevant standards.

FEATURES

• Pre-wired float switch included for level detection
• Standard set-point alarm with strobe indication
• IP54 rated enclosure with mounting brackets
• Visual strobe and audible buzzer alarms
• Status indicator lights for power and alarm
• Auto-silencing alarm with optional continuous mode
• Alarm mute button for local silencing
• Low voltage control and input circuitry
