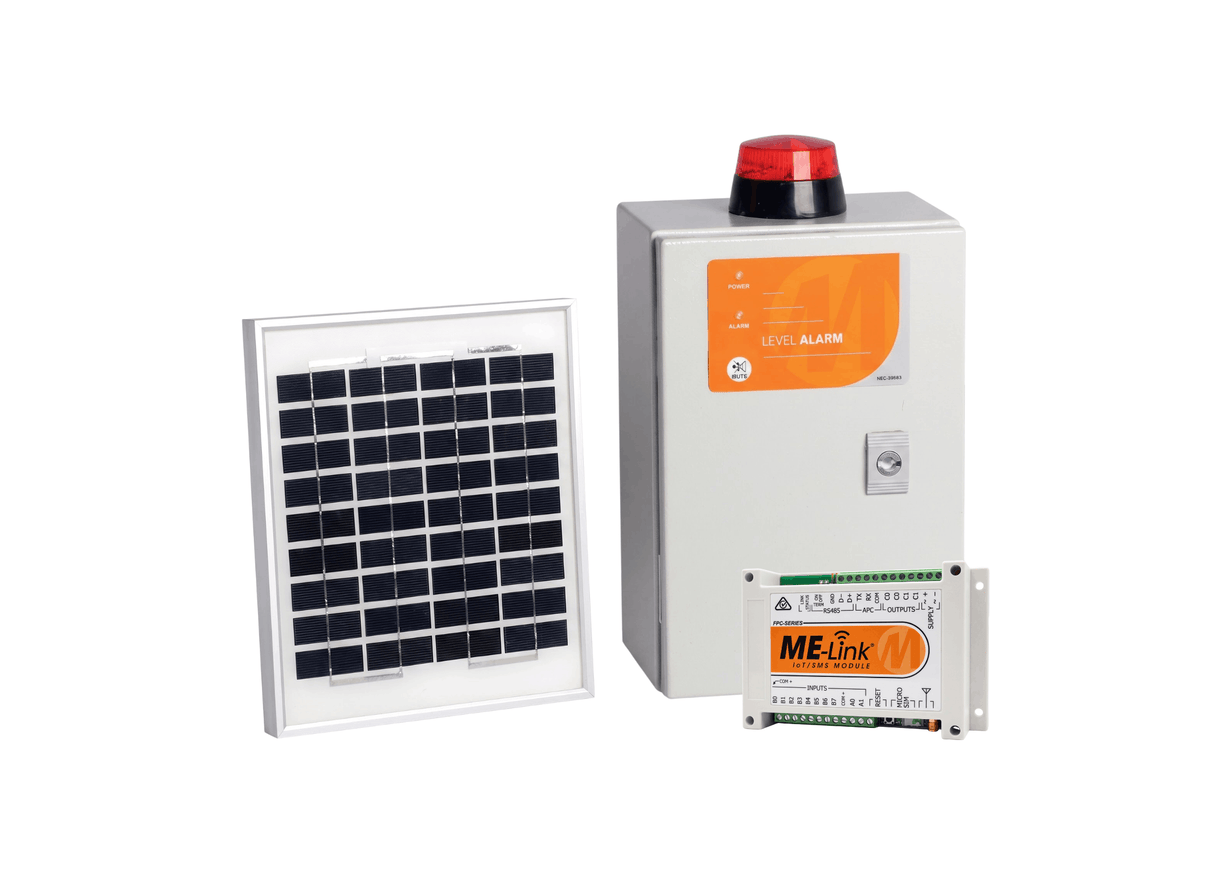

MATelec FPC-12658-SMS IP54 Single Phase Liquid Level Alarm with SMS and Pre-Wired Float

Remote SMS notifications and a pre-wired float switch are combined in the MATelec Australia FPC-12658-SMS Liquid Level Alarm. The ME-Link cellular CAT-M1 module sends SMS alarm messages when the set-point is reached. The unit is housed in an IP54 rated enclosure with removable gland plate. Solar charging capability provides extended operation in remote locations without mains power access.

A micro SIM card with CAT-M1 enabled is required for operation. SMS commands configure the alarm without additional software. Battery backup with solar charging maintains continuous operation during mains power failure and extends runtime in off-grid applications. The pre-wired float simplifies installation by providing a complete ready-to-use solution.

The level alarm provides visual strobe and audible buzzer indication for local annunciation. An auto-silencing feature silences the buzzer after five minutes if not muted, then sounds briefly every five minutes.

Installation requires a single phase 230Vac supply, a micro SIM card with CAT-M1 enabled, and solar panel connection for optimal performance. Electrical connections must be carried out by a suitably qualified and registered electrician.

• ME-Link cellular CAT-M1 remote monitoring module
• Pre-wired float switch included for level detection
• SMS alarm messaging for level alarm
• Battery backup with solar charging for extended operation
• Solar panel compatible for remote off-grid installations
• IP54 rated enclosure with removable gland plate
• Visual strobe and audible buzzer alarms
• Auto-silencing alarm with brief periodic sounding
