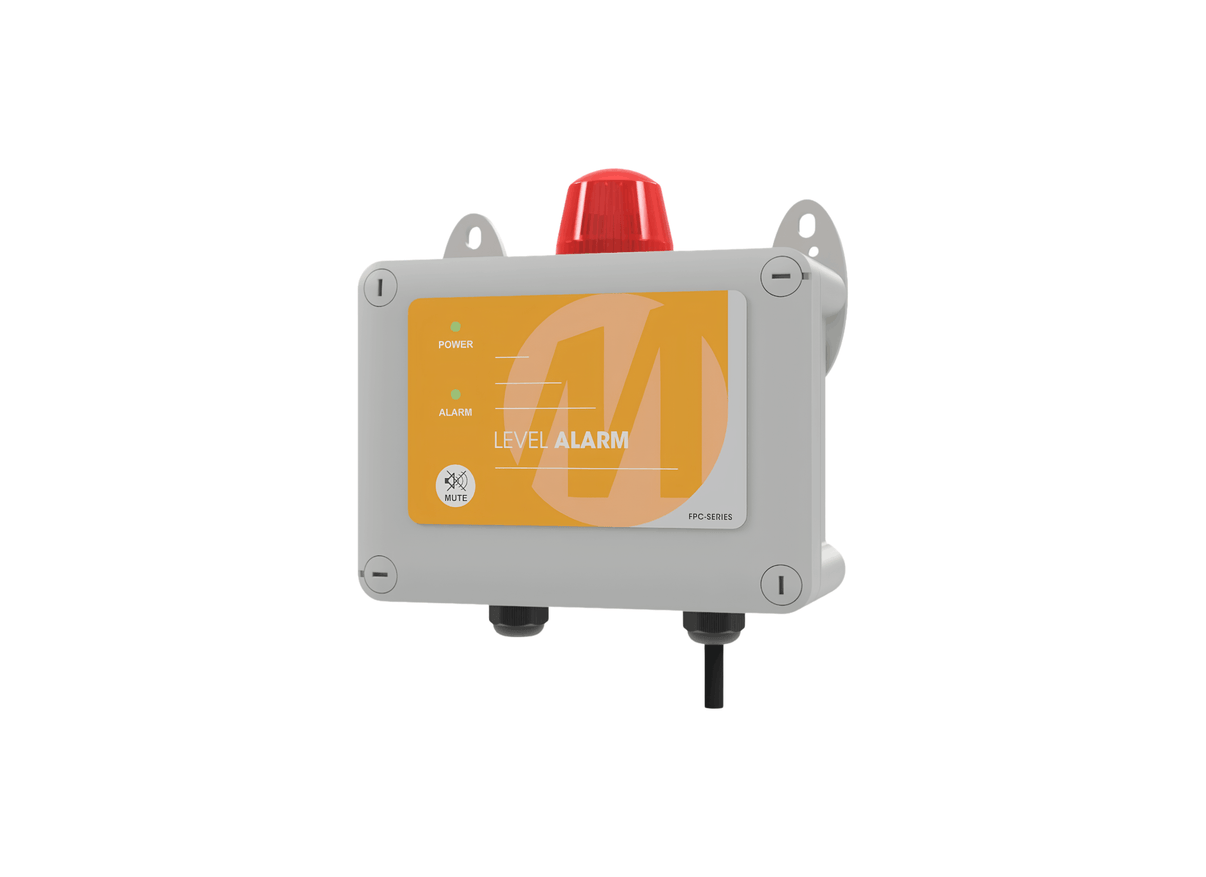

MATelec FPC-12663 IP54 12VDC Single Phase Liquid Level Alarm

Low voltage control systems integrate easily with the MATelec Australia FPC-12663 Liquid Level Alarm. Operating from a 12Vdc supply, this standard set-point alarm provides warning indication when a water storage tank reaches either empty or full condition. The unit is housed in an IP54 rated enclosure measuring 175x130x80mm.

A float switch connects to the digital input for level detection. Reaching the set-point activates visual strobe and audible buzzer alarms. The 12Vdc supply allows direct integration with existing low voltage infrastructure. Low voltage control and input circuitry ensures safe operation.

Status indicator lights display power on and alarm conditions. An alarm mute button provides local silencing. The auto-silencing feature silences the buzzer after five minutes if not muted, then sounds briefly every five minutes. This feature can be disabled if continuous alarm is required.

Installation requires a 12Vdc supply. Electrical connections must be carried out by a suitably qualified and registered electrician in accordance with relevant standards.

FEATURES

• 12Vdc supply for low voltage systems
• Standard set-point alarm with strobe indication
• IP54 rated enclosure measuring 175x130x80mm
• Digital input for float switch
• Status indicator lights for power and alarm
• Auto-silencing alarm with optional continuous mode
• Alarm mute button for local silencing
• Low voltage control and input circuitry
