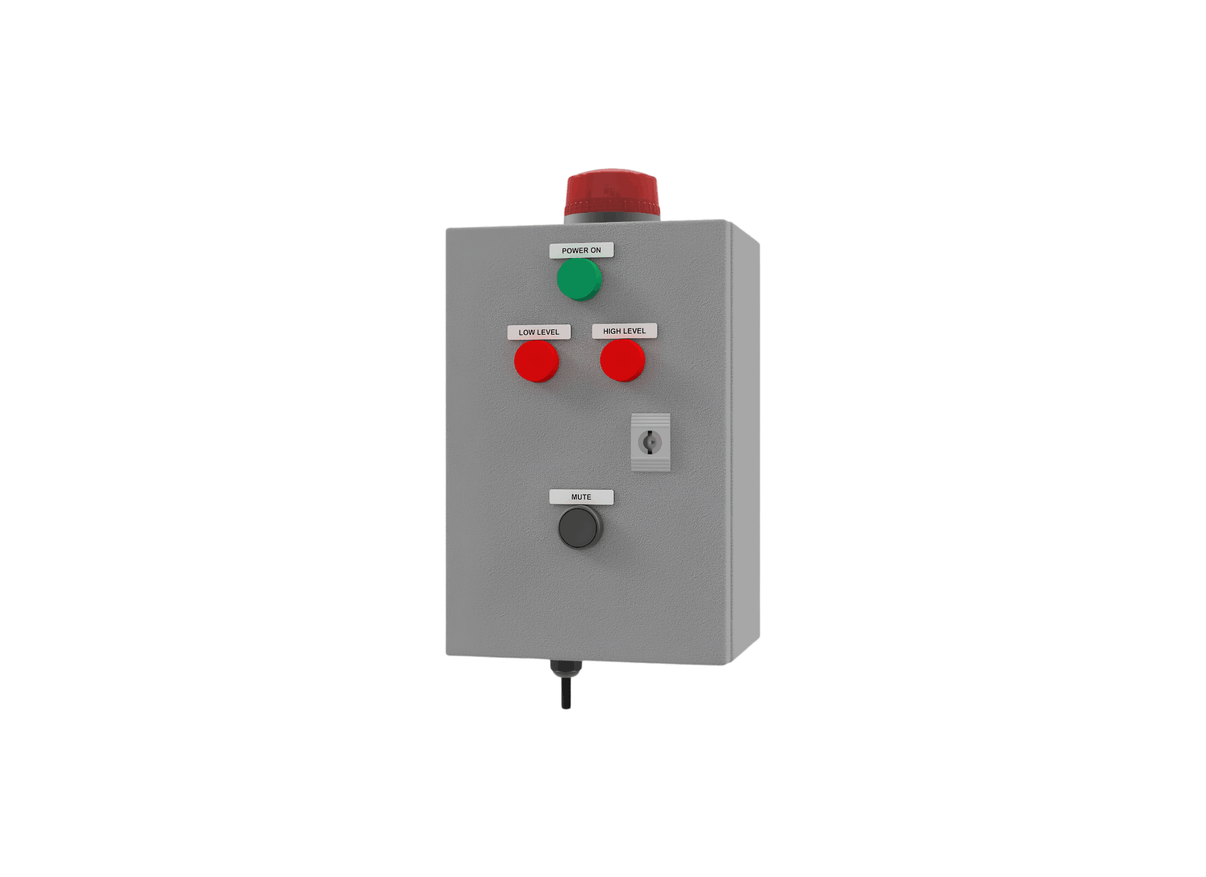

MATelec FPC-12664 Mild Steel IP54 Single Phase High & Low Level Alarm

Empty and full tank conditions are both monitored by the MATelec Australia FPC-12664 High- & Low-Level Alarm. The unit is housed in an IP54 rated powder-coated mild steel enclosure with removable gland plate measuring 300x200x150mm. Visual strobe and audible buzzer alarms provide local annunciation.

Two digital 12Vac inputs accept signals from high- and low-level float switches. Status indicator lights display power on, high level and low-level conditions. BMS volt-free outputs are provided for high- and low-level signals to building management systems. An alarm mute/reset/test button provides local control.

Low voltage control and input circuitry ensures safe operation. DIN rail mounted terminal connections simplify wiring. The auto-silencing feature silences the buzzer after five minutes if not muted, then sounds briefly every five minutes. This feature can be disabled if continuous alarm is required. A 10 Amp 3 pin 1.5m power supply lead is included.

Installation requires a single phase 230Vac supply. Electrical connections must be carried out by a suitably qualified and registered electrician in accordance with relevant standards.

FEATURES

• High and low level alarm for tank monitoring
• Two digital 12Vac inputs for float switches
• Visual strobe and audible buzzer alarms
• Status indicator lights for power and levels
• BMS volt-free outputs for high and low level
• Auto-silencing alarm with optional continuous mode
• Alarm mute/reset/test button for control
• IP54 powder-coated mild steel enclosure
• Removable gland plate for cable entry
