MATelec FPC-12676 High Level Alarm Controller with Dual Float Monitoring & 25mm 12Vdc Valve

In commercial ablution facilities and outfall sumps, continuing water usage during pump downtime can cause severe drainage overflows. The MATelec FPC-12676 High Level Alarm and Valve Shut-Off Controller provides two-stage liquid level monitoring and automatic mains water isolation housed within a powder-coated mild steel enclosure.

Fluid detection operates via two separate float switches suspended inside the drainage chamber. Tripping the primary float switch triggers a flashing visual strobe and an audible buzzer to alert plant operators. If liquid continues rising to the second float switch, the internal controller pulses closed a 25 mm 12Vdc latching solenoid valve, isolating the mains water feed and stopping further wastewater entry.

The controller connects to a single-phase 230Vac supply and converts sensor signaling to a 12Vdc low-voltage platform. Built into a 300 x 300 x 150 mm powder-coated mild steel enclosure with an IP54 weatherproof rating, the panel includes a volt-free BMS output contact for centralized facility telemetry.

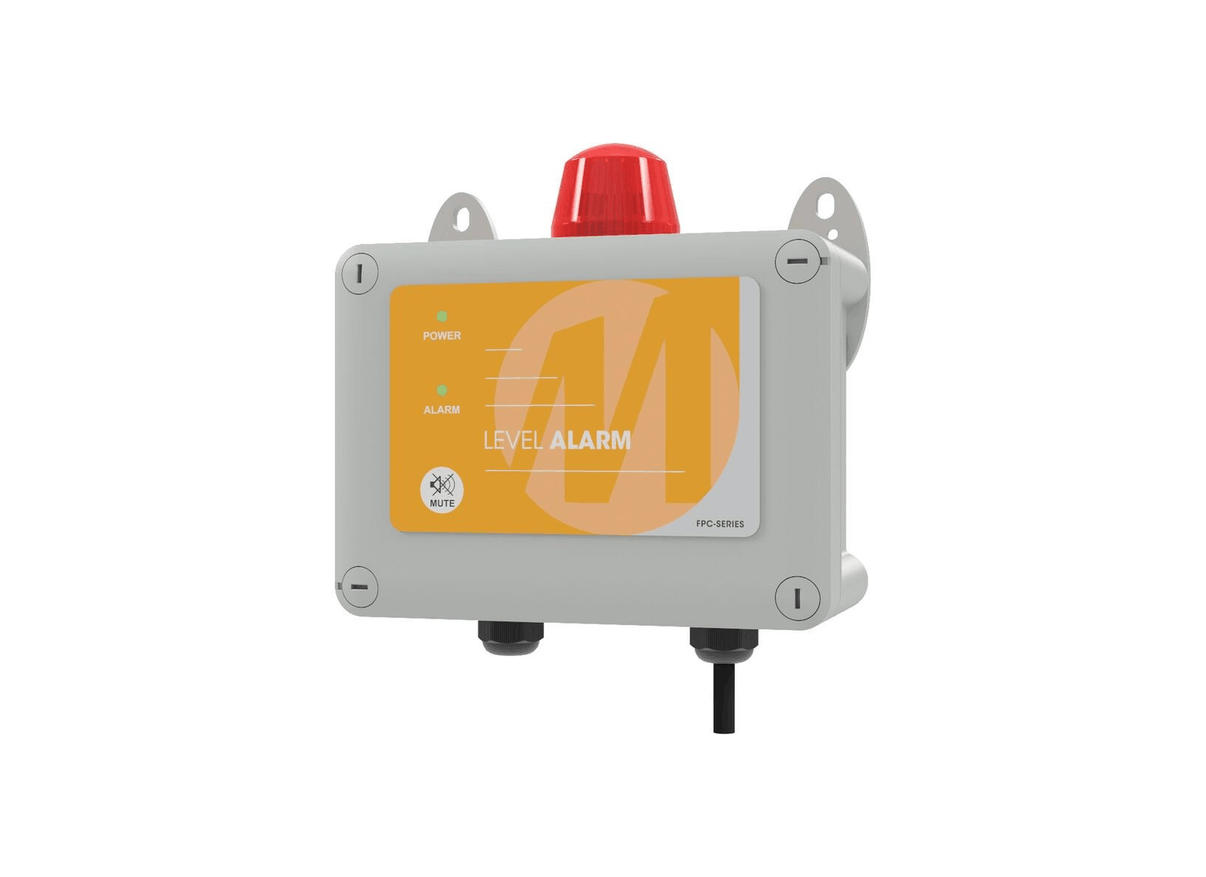

The front control fascia incorporates an electronic keypad with power on and alarm LEDs and a combined mute, reset, and test button. Factory-supplied components include two model 9006 float switches with 10 m leads, a 25 mm 12Vdc pulse latching solenoid valve, and a 1.5 m mains power cord.

Features

• Powder-coated mild steel enclosure measuring 300 x 300 x 150 mm with IP54 rating
• Integrated high-intensity visual strobe beacon paired with an audible warning buzzer
• Pulse latching 12Vdc solenoid output providing positive water shut-off upon high level
• Supplied complete with two 9006 level float switches with 10 m pre-terminated cables
• Includes a 25 mm female-threaded 12Vdc pulse latching water shut-off solenoid valve
• Volt-free building management system contact supporting both NO and NC connections
• Onboard dipswitch controls for selecting latching reset modes and alarm silencing
