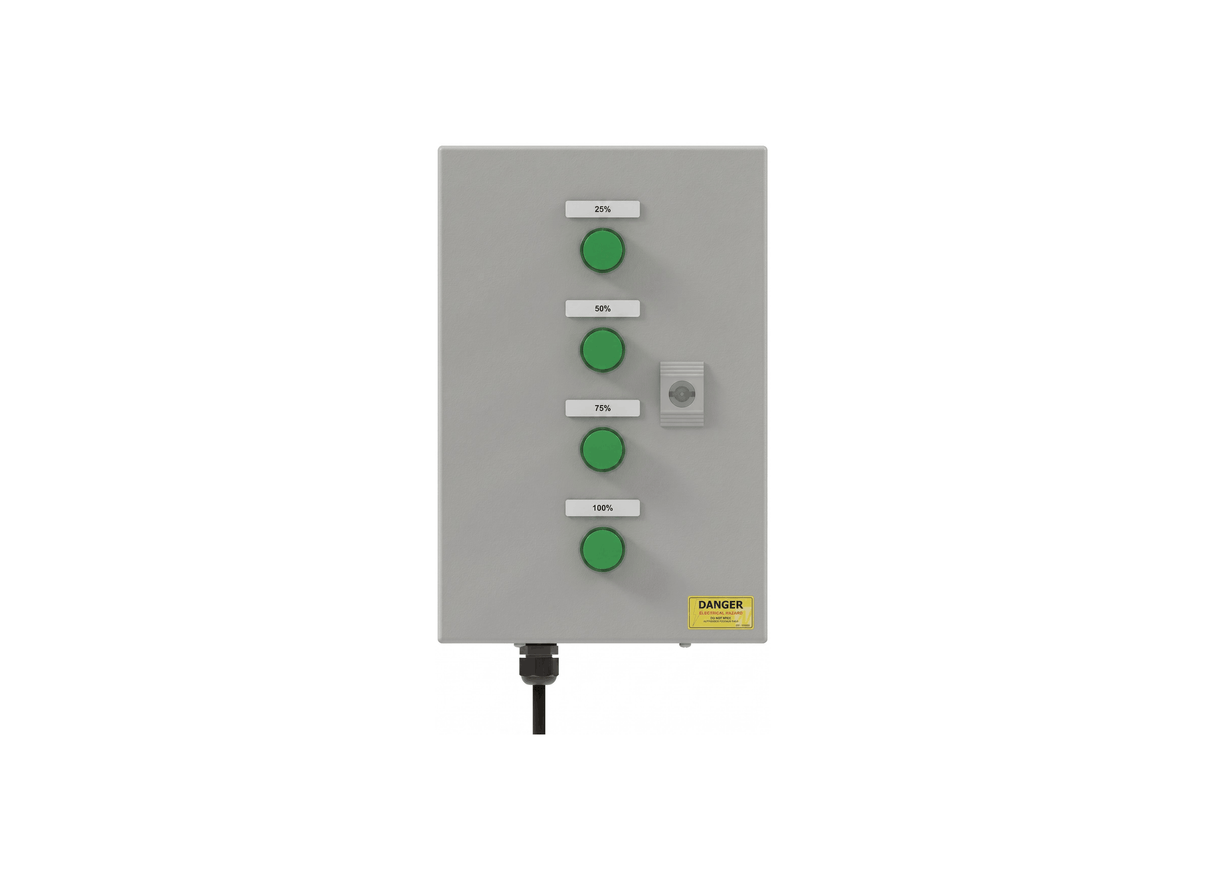

MATelec FPC-12703 4-Stage Tank Level Indicator with 25% to 100% LED Display & 4x Floats

Staged visual tracking of liquid inventory provides operators with a direct overview of tank capacity without complex setup. The MATelec FPC-12703 Tank Level Indicator displays four discrete volume intervals on a central panel for commercial, industrial, and agricultural water storage tanks.

Fluid level tracking is executed by four digital float switches suspended at calibrated depths within the storage vessel. As liquid rises or falls, individual float activations illuminate corresponding front-panel LED lamps representing 25%, 50%, 75%, and 100% capacity thresholds.

Housed in a powder-coated mild steel enclosure measuring 300 x 200 x 150 mm with an IP54 rating, the unit operates on a single-phase 230Vac supply. An internal transformer converts incoming power to a safe 24Vac low-voltage supply for the four float sensing channels.

Cable installation is facilitated by a removable bottom gland plate for multi-core lead entry. The indicator is supplied with four model 9004 weighted float switches featuring 10 m submersible leads and a pre-wired 10 Amp 3-pin 1.5 m power supply cord.

Features

• Powder-coated mild steel enclosure measuring 300 x 200 x 150 mm with IP54 rating
• Four front-panel status LED indicator lights displaying 25%, 50%, 75%, and 100% fill levels
• Operates on 230Vac single-phase mains supply with internal 24Vac low-voltage sensor lines
• Four independent digital inputs dedicated to discrete level float switch connections
• Supplied with four model 9004 weighted float switches complete with 10 m submersible cables
• Removable bottom gland plate for flexible conduit and multi-core cable entry
• Includes a pre-wired 1.5 m mains power supply cable with standard 10 Amp 3-pin plug
