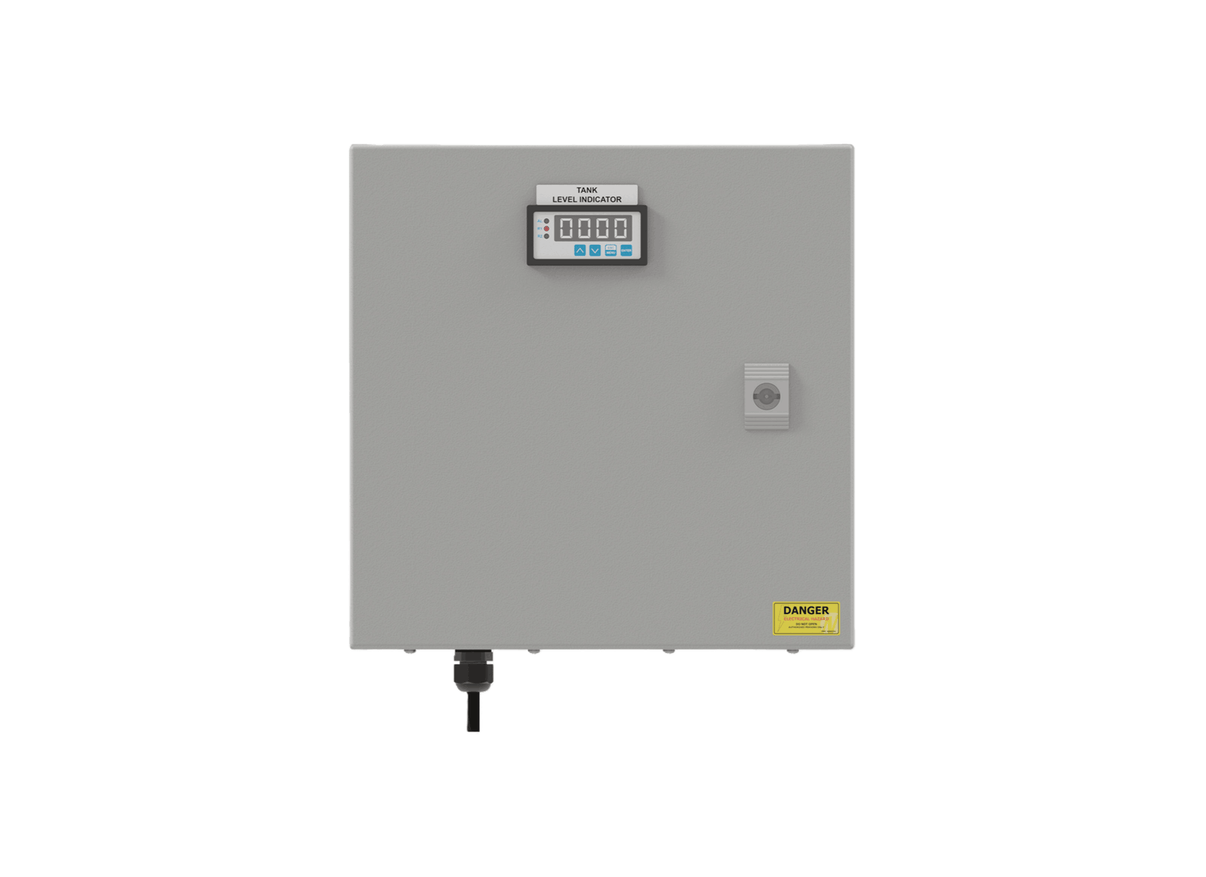

MATelec FPC-12705-BBU Digital Tank Level Indicator with Battery Backup & 4-20mA Hydrostatic Sensor

Maintaining continuous level visibility during mains electrical outages is critical for emergency storage and facility management. The MATelec FPC-12705-BBU Tank Level Indicator incorporates an internal 12V battery backup system that powers both the digital process display and hydrostatic transducer during power failures.

Level measurement utilizes a submerged 4-20mA hydrostatic pressure transducer that delivers real-time data to a front digital LED process meter. The display can be scaled to show depth in meters/millimeters, fill percentage, or volume in Litres. If mains power drops out, the internal 1.3Ah sealed battery and automatic charger keep the instrument operating for up to 10 hours.

Built into an IP44 powder-coated mild steel enclosure measuring 300 x 300 x 150 mm, the unit runs on a 230Vac single-phase supply under normal conditions. Low-voltage power circuits regulate sensor loop excitation and maintain battery charge levels.

The enclosure includes a removable gland plate for neat field cable routing. Standard hardware comprises a 316 stainless steel hydrostatic pressure transducer (0 to 4 m depth) with 24 m of vented submersible cable and a 10 Amp 3-pin 1.5 m mains lead.

Features

• IP44 rated powder-coated mild steel enclosure measuring 300 mm wide by 300 mm high by 150 mm deep
• Integrated 12V 1.3Ah rechargeable backup battery and automatic float charging circuitry
• Provides up to 10 hours of continuous display and transducer operation during power outages
• Configurable digital LED process meter displaying depth, percentage full, or volume in Litres
• Includes a potable water grade 316 stainless steel hydrostatic transducer with 0-4 m depth range
• Supplied with 24 m of vented submersible sensor cable incorporating atmospheric reference tube
• Removable bottom gland plate and factory-fitted 10 Amp 3-pin 1.5 m mains power supply cable
