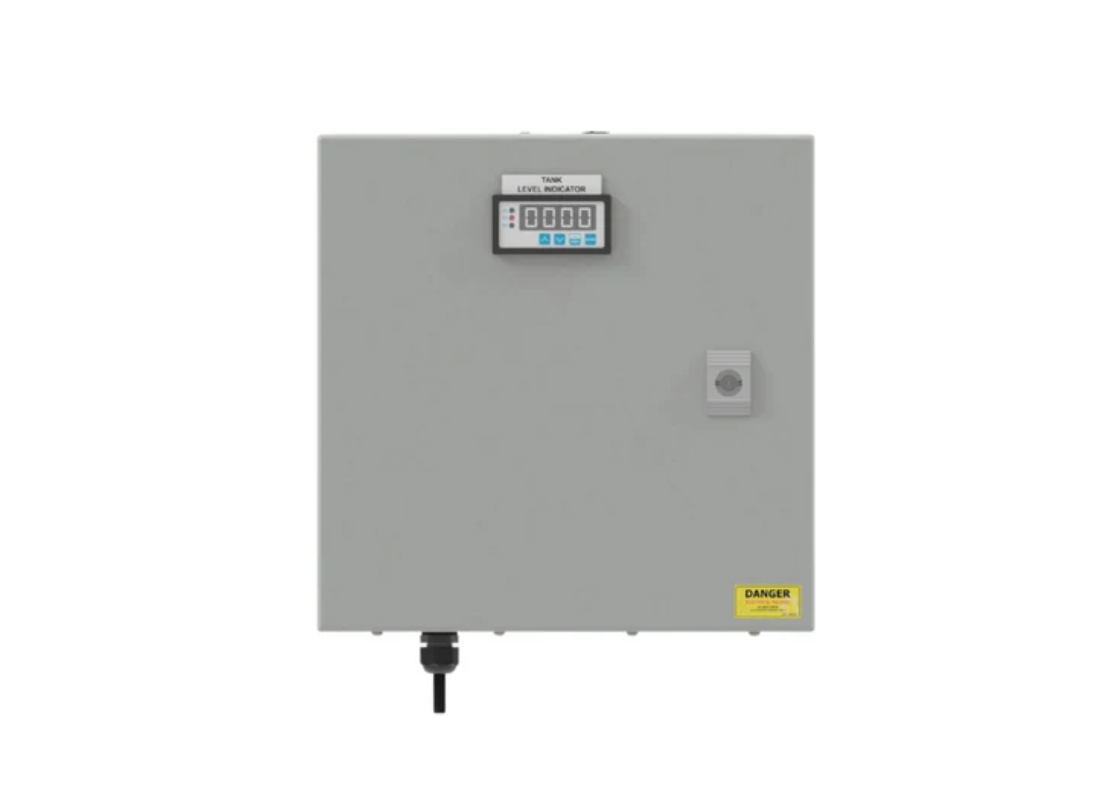

Matelec FPC-12705-MP IP44 Steel Indication Panel for Level and Flow Monitoring

The Matelec FPC-12705-MP is a professional-grade indication panel designed to provide accurate, real-time monitoring of liquid level, flow, pressure or other process variables in tanks and fluid systems. Commonly used in fire protection, water storage and industrial applications, the panel displays critical system data clearly for operators at a glance.

Housed in a durable IP44-rated powder-coated mild steel enclosure, the unit is engineered for long-term reliability in indoor or sheltered outdoor environments. It operates from a 230 V single-phase supply and uses low-voltage input circuitry for safety when interfacing with sensors.

The panel accepts a 4–20 mA analogue signal from a hydrostatic pressure transducer or similar sensor, converting it into a clear digital readout. Displays can be configured to show depth, percentage full, capacity in litres, pressure or flow rate, making the system highly versatile for different monitoring requirements.

The “MP” mimic version allows transmission of power and signal to a secondary panel up to approximately 150 m away, enabling remote duplication of readings — a requirement in many fire and infrastructure installations where tank status must be visible in multiple locations.

Supplied complete with hydrostatic pressure transducer and power lead, the FPC-12705-MP provides a robust plug-and-install solution for precise level and flow monitoring across municipal, commercial and industrial systems.

FEATURES

• Accurate digital indication of level, flow or pressure

• IP44 powder-coated mild steel enclosure

• 4–20 mA analogue input for transducers

• Configurable display for depth, %, litres, pressure or flow

• Mimic signal transmission up to 150 m

• Low-voltage control and input circuitry for safety

• Process meter LED display with relay outputs

• BMS volt-free outputs for tank full or empty signals

• Supplied with stainless steel hydrostatic pressure transducer

• Plug-and-play 3-pin power lead included

• Suitable for water storage, fire systems and industrial monitoring
