MATelec FPC-12708 Dual Channel Digital Tank Level Indicator with 2x Hydrostatic Transducers

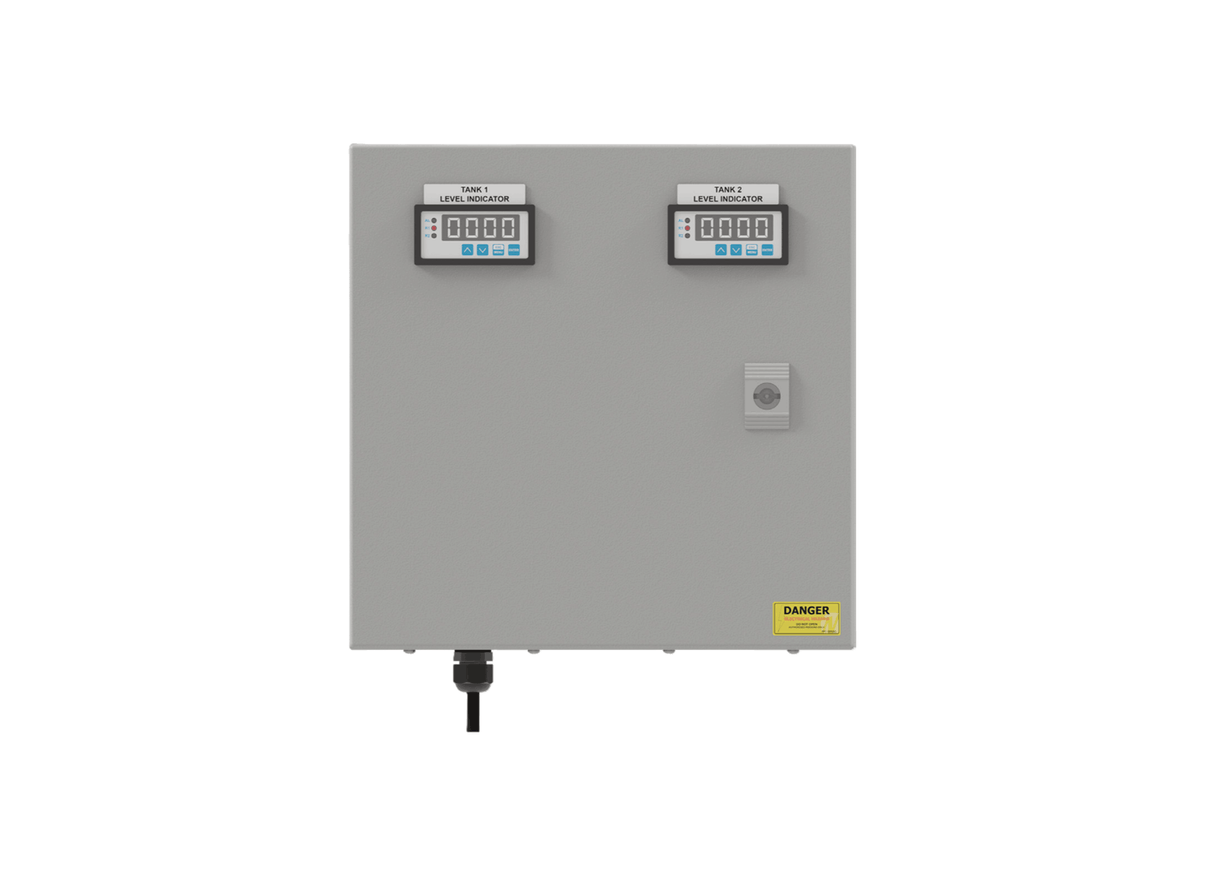

Monitoring two separate water storage reservoirs from a single location is common across commercial developments, rural properties, and industrial facilities. The MATelec FPC-12708 Tank Level Indicator provides dual-channel hydrostatic level monitoring with two independent digital process meters housed in a single panel.

Two submerged 316 stainless steel hydrostatic pressure transducers measure water head in Tank 1 and Tank 2, transmitting independent 4-20mA signals. The front fascia displays each tank's volume on separate digital LED process meters, each independently configurable for depth (m/mm), percentage full, or Litres.

Powered by a single-phase 230Vac electrical source, internal circuits provide isolated 24Vdc excitation to both transducer loops. The panel is constructed from powder-coated mild steel measuring 300 x 300 x 150 mm and carries an IP44 protection rating.

Conduit entry for both sensor cables is accommodated through a removable bottom gland plate. The unit comes complete with two 0 to 4 m 316 stainless steel hydrostatic transducers, two 24 m vented submersible cables, and a 10 Amp 1.5 m power supply lead.

Features

• Powder-coated mild steel enclosure measuring 300 x 300 x 150 mm with IP44 protection rating
• Dual independent digital LED process meter displays for simultaneous two-tank monitoring
• Each display independently configurable for depth units (m/mm), percentage (%), or Litres
• Two analogue 4-20mA input channels with isolated low-voltage transducer excitation
• Supplied with two 316 stainless steel potable water hydrostatic transducers (0-4 m range)
• Includes two 24 m coils of vented submersible sensor cable with atmospheric breathers
• Removable bottom gland plate and pre-wired 10 Amp 3-pin 1.5 m mains power supply lead
