MATelec FPC-12708-MP Dual Tank Level Indicator with Master Panel & Remote Mimic Display Set

Facility operations often require tank storage data to be monitored simultaneously from both the plant room and an operations office. The MATelec FPC-12708-MP Tank Level Indicator uses a paired Master Panel and Remote Mimic Panel configuration to display two independent tank levels from separate physical locations.

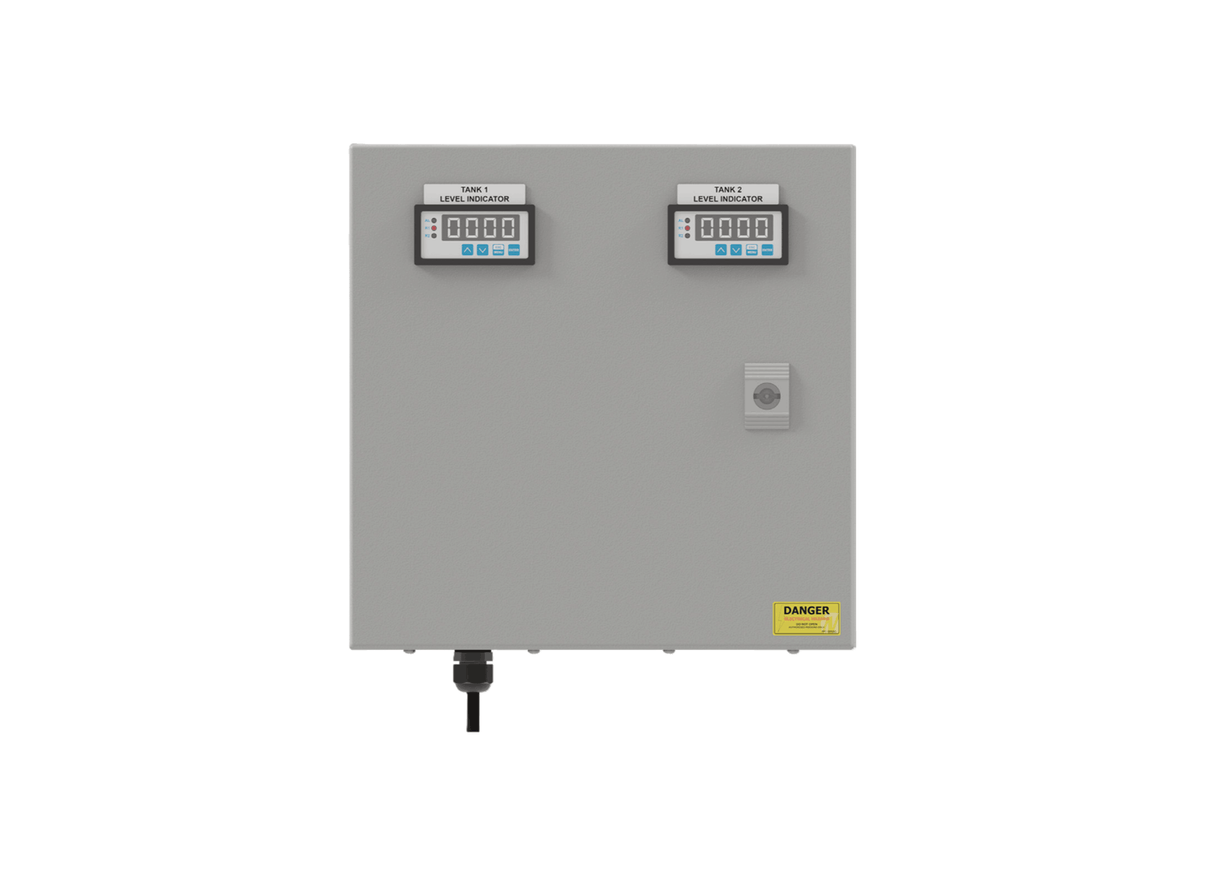

The master panel connects to two submerged 316 stainless steel hydrostatic transducers, displaying levels for Tank 1 and Tank 2 on two digital LED process meters while retransmitting data to the remote mimic panel. The mimic panel duplicates these readouts on two matching digital process meters, providing four displays in total.

Both enclosures are constructed from powder-coated mild steel measuring 300 x 300 x 150 mm each, rated at IP44 for weatherproof protection. The system runs on a 230Vac single-phase supply with internal low-voltage circuitry powering the sensors and inter-panel link.

Each panel features a removable bottom gland plate for straightforward field wiring. The complete package includes the master panel, remote mimic panel, two 316 stainless steel hydrostatic transducers (0 to 4 m calibration), two 24 m vented cables, and a 10 Amp 1.5 m power lead.

Features

• Includes two matched powder-coated mild steel enclosures measuring 300 x 300 x 150 mm each
• IP44 weatherproof protection rating across both master and remote mimic panel enclosures
• Four digital LED process meters total (two on master panel, two on remote mimic panel)
• Displays depth in meters or millimeters, percentage full, or volume in Litres at both locations
• Supplied with two 316 stainless steel potable water hydrostatic transducers with 0-4 m range
• Includes two 24 m coils of vented submersible sensor cable with atmospheric reference tubes
• Removable bottom gland plates on both panels and pre-wired 10 Amp 3-pin 1.5 m power lead
