MATelec FPC-12724-(AA-D) Mild Steel IP56 1PH 1.6-13A Rain Mains Controller

Selecting the right overload protection is the first decision you make with the FPC-12724-(AA-D). This single phase deluxe rain mains controller from MATelec is available with six overload settings from 1.6A to 13A, letting you match the panel perfectly to your pump motor.

Once installed, the controller takes over the daily changeover duty. While the tank holds rain water, the pump runs and the mains valve stays closed. When the rain water runs out, the pump faults or the power fails, the controller opens the valve and switches the supply over to mains water.

The front panel gives you full visibility of the system status through indicator lights for rain water, mains water and system fault conditions. An electronic keypad lets you interact with the controller, and the system test button checks both pump and valve function without needing any external equipment.

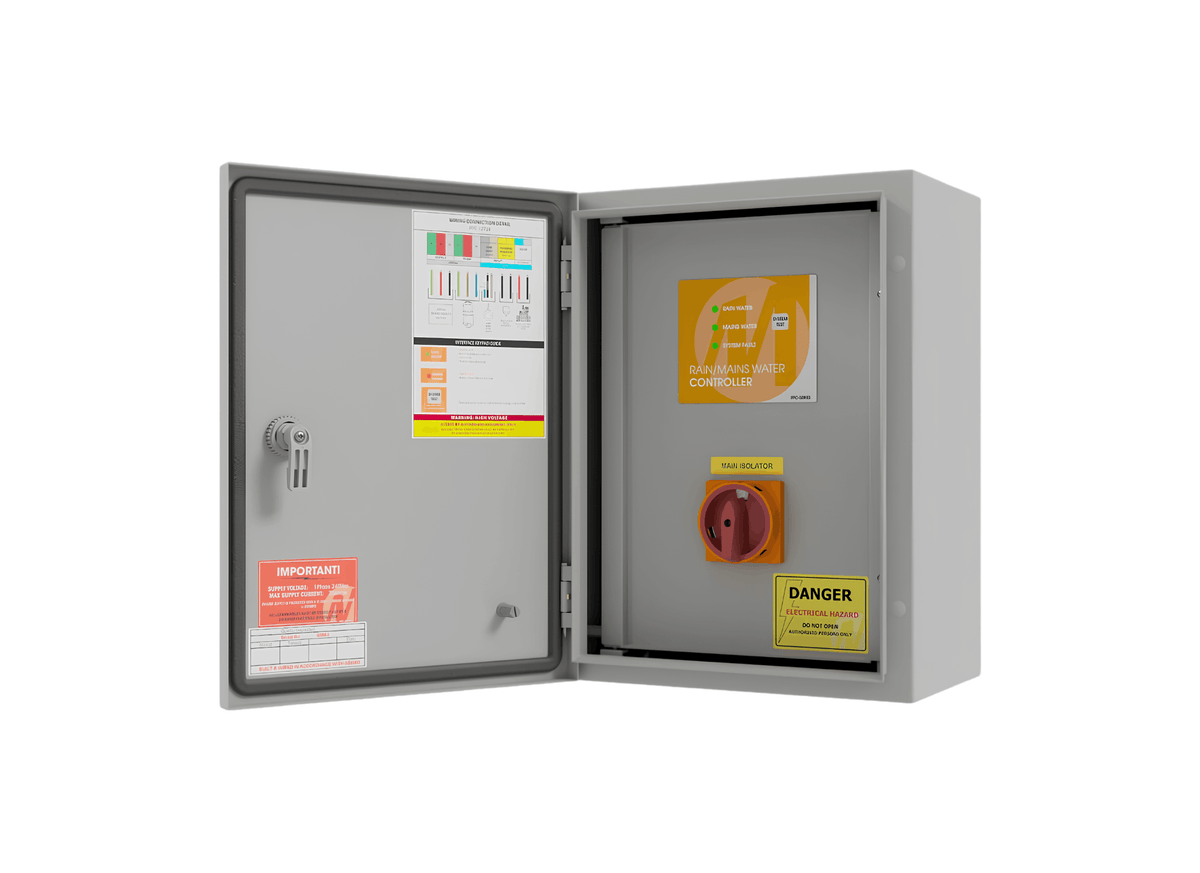

Construction is heavy duty - an IP56 powder coated mild steel enclosure measuring 400x300x200mm with an inner door and removable gland plate. A padlockable mains isolator, circuit breaker protected low voltage circuitry and contactor with thermal overload protection keep the installation safe and code compliant.

• Six overload selections: -AA (1.6-2.5A), -A (2.5-4A), -B (4-6A), -BB (5.5-8A), -C (7-10A), -D (9-13A).
• IP56 powder coated mild steel enclosure with inner door and removable gland plate.
• 400x300x200mm enclosure size.
• Single phase 230Vac supply.
• Two 12Vdc digital inputs for low-level float switch and working pressure switch.
• 12Vdc output for pulse latching solenoid valve.
• 25mm female/female 12Vdc pulse latching solenoid valve included.
• Electronic keypad with rain, mains and fault indicators plus system test button.
• Padlockable mains isolator, circuit breaker protection and contactor with thermal overload.
• Pump overload shut-down protection as fault response.
• 316 stainless steel enclosure and generator changeover available as optional modifications.
