MATelec FPC-12724-E Mild Steel IP56 1PH 12-18A Rain Mains Controller

For larger single phase pump loads where the standard 13A overload just won't cut it, the FPC-12724-E steps in with a fixed 12-18A thermal overload rating. This deluxe rain mains controller from MATelec handles the bigger motors while keeping the same rain-first, mains-backup logic.

The controller monitors the stored rain water level through the low-level float switch input and watches the system pressure via the working pressure switch input. When rain water is available, it pulse closes the mains valve and lets the pressure switch manage the pump. When the tank empties, the pump faults or power drops, the controller shuts the pump down and pulses the valve open for mains water.

At the front, an electronic keypad with indicator lights shows the current water source and system status at a glance. The system test button lets you verify pump and valve operation during commissioning or routine maintenance checks without needing to simulate fault conditions.

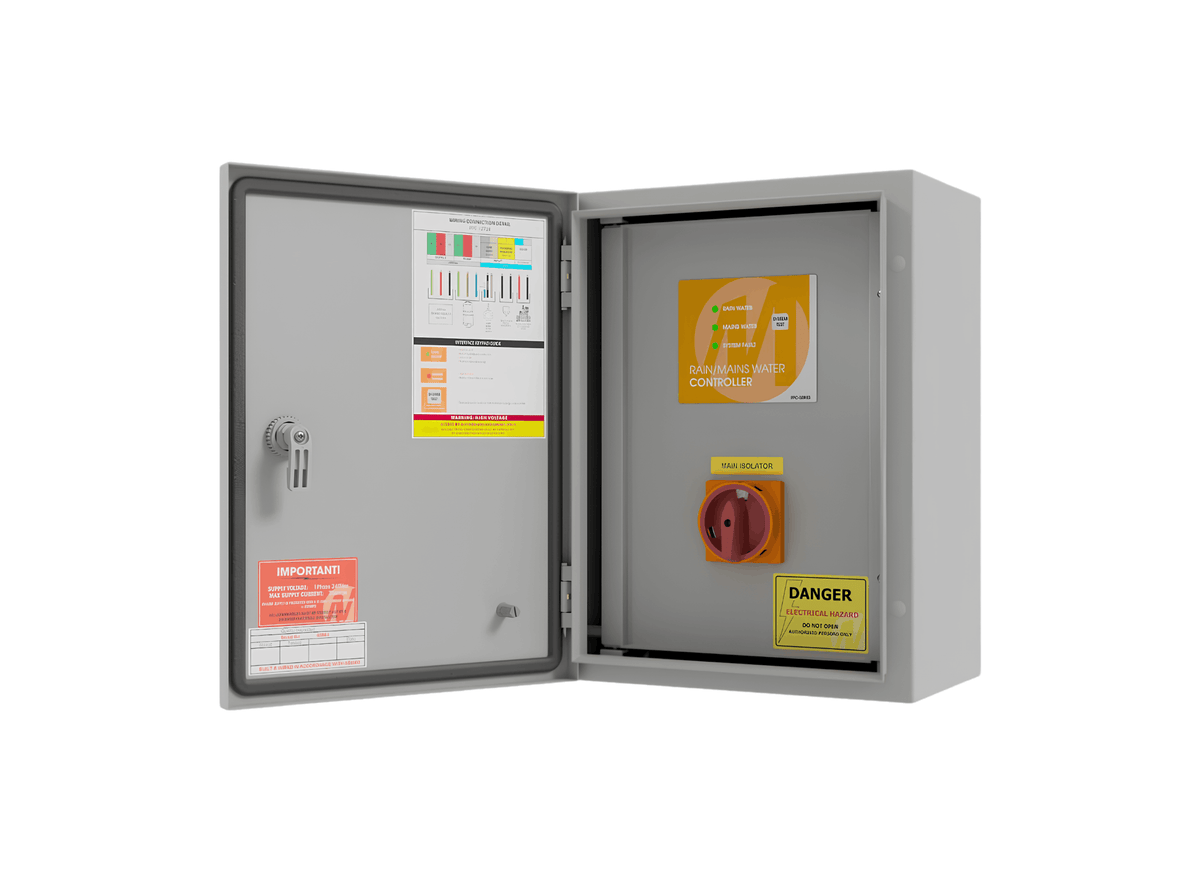

The enclosure is IP56 powder coated mild steel at 400x300x200mm with an inner door and removable gland plate. Protection includes a padlockable mains isolator, circuit breaker protected low voltage control and input circuitry, and a contactor with thermal overload that triggers a pump shutdown on overload.

• Fixed 12-18A thermal overload protection.
• IP56 powder coated mild steel enclosure with inner door and removable gland plate.
• 400x300x200mm enclosure size.
• Single phase 230Vac supply.
• Two 12Vdc digital inputs for low-level float switch and working pressure switch.
• 12Vdc output for pulse latching solenoid valve.
• 25mm female/female 12Vdc pulse latching solenoid valve included.
• Electronic keypad with rain, mains and fault indicators plus system test button.
• Padlockable mains isolator, circuit breaker protection and contactor with thermal overload.
• Pump overload shut-down protection as fault response.
• 316 stainless steel enclosure and generator changeover available as optional modifications.
