MATelec FPC-12725-(AA-D) Mild Steel IP56 3PH 1.6-13A Rain Mains Controller

Three phase pumps need three phase control, and the FPC-12725-(AA-D) delivers exactly that. This deluxe rain mains controller from MATelec handles 400Vac supply with six overload selections from 1.6A to 13A, letting you match the protection to your pump motor.

Rain water first, mains water as backup - that is the operating logic the controller follows. When the float switch confirms there is rain water in the tank, the controller pulse closes the mains water valve and the pressure switch takes over pump control. If the rain water depletes, the pump faults or the power fails, the pump shuts down and the valve pulses open for mains water supply.

The front interface is straightforward and informative. An electronic keypad gives you control access, while indicator lights for rain water, mains water and system fault show exactly what is happening. The system test button lets you check both pump and valve function quickly without needing external test equipment.

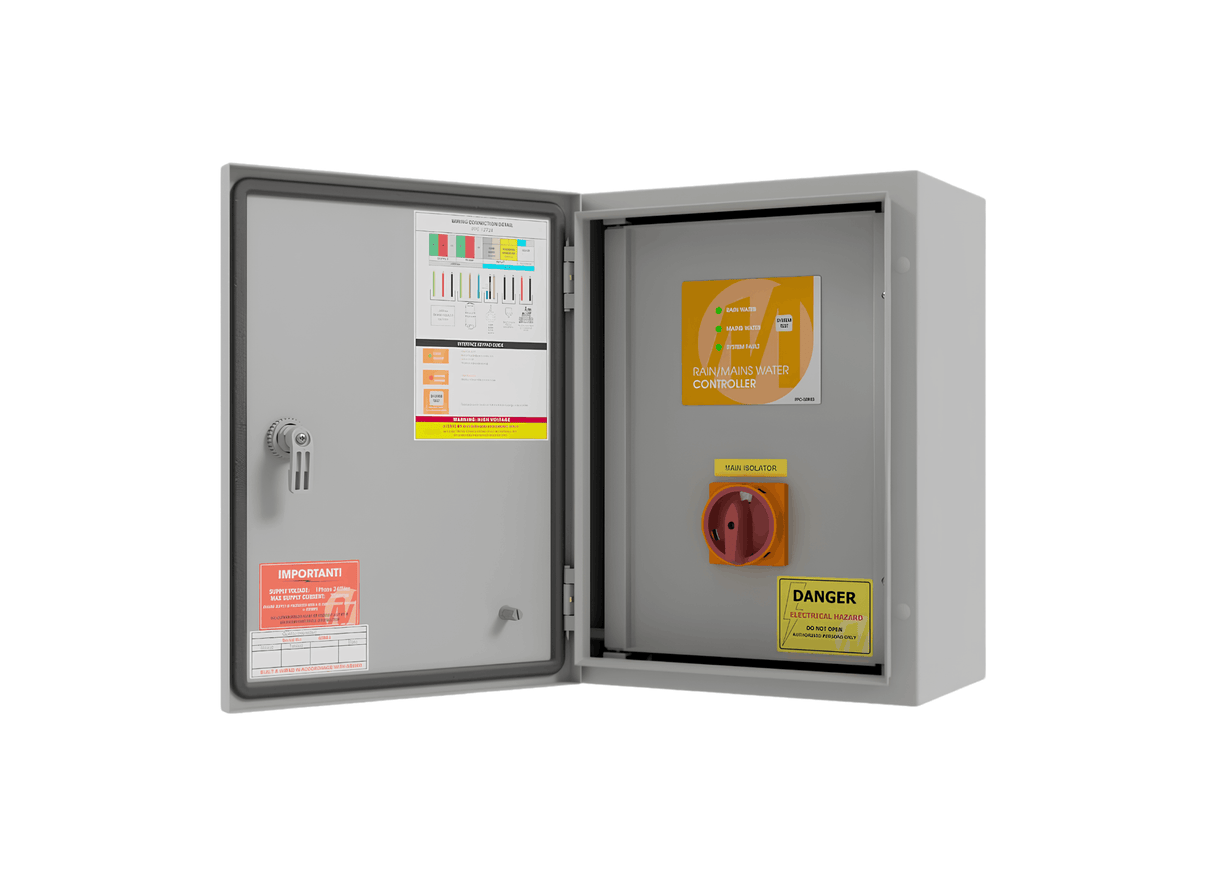

Built into an IP56 powder coated mild steel enclosure measuring 400x300x200mm, the panel includes an inner door and removable gland plate. Protection is layered with a padlockable mains isolator, circuit breaker protected low voltage control and input circuitry, and a contactor with thermal overload that shuts the pump down on overload.

• Six overload selections: -AA (1.6-2.5A), -A (2.5-4A), -B (4-6A), -BB (5.5-8A), -C (7-10A), -D (9-13A).
• IP56 powder coated mild steel enclosure with inner door and removable gland plate.
• 400x300x200mm enclosure size.
• Three phase 400Vac supply.
• Two 12Vdc digital inputs for low-level float and working pressure switch.
• 12Vdc output for pulse latching solenoid valve.
• 25mm female/female 12Vdc pulse latching solenoid valve included.
• Electronic keypad with status indicators and system test button.
• Padlockable mains isolator, circuit breaker protection and contactor with thermal overload.
• Pump overload shut-down protection as fault response.
• 316 stainless steel enclosure and generator changeover available as optional modifications.
