MATelec FPC-13096 Solar Wireless Transmitter with 12Vdc Solar Power & Digital Input (500m)

Operating wireless telemetry from remote liquid storage locations requires autonomous energy when electrical grid connections are unavailable. The MATelec FPC-13096 Remote Signal Communicator is a 12Vdc solar-powered radio transmitter system engineered to broadcast digital switch data wirelessly to a remote pump shed.

The solar station accepts digital 12Vdc inputs from external float or pressure switches at the remote reservoir, broadcasting radio signal bursts every 60 seconds across a 500-meter line-of-sight range. The receiving station decodes the signal and actuates switched relay contacts to automatically start or stop local pump equipment.

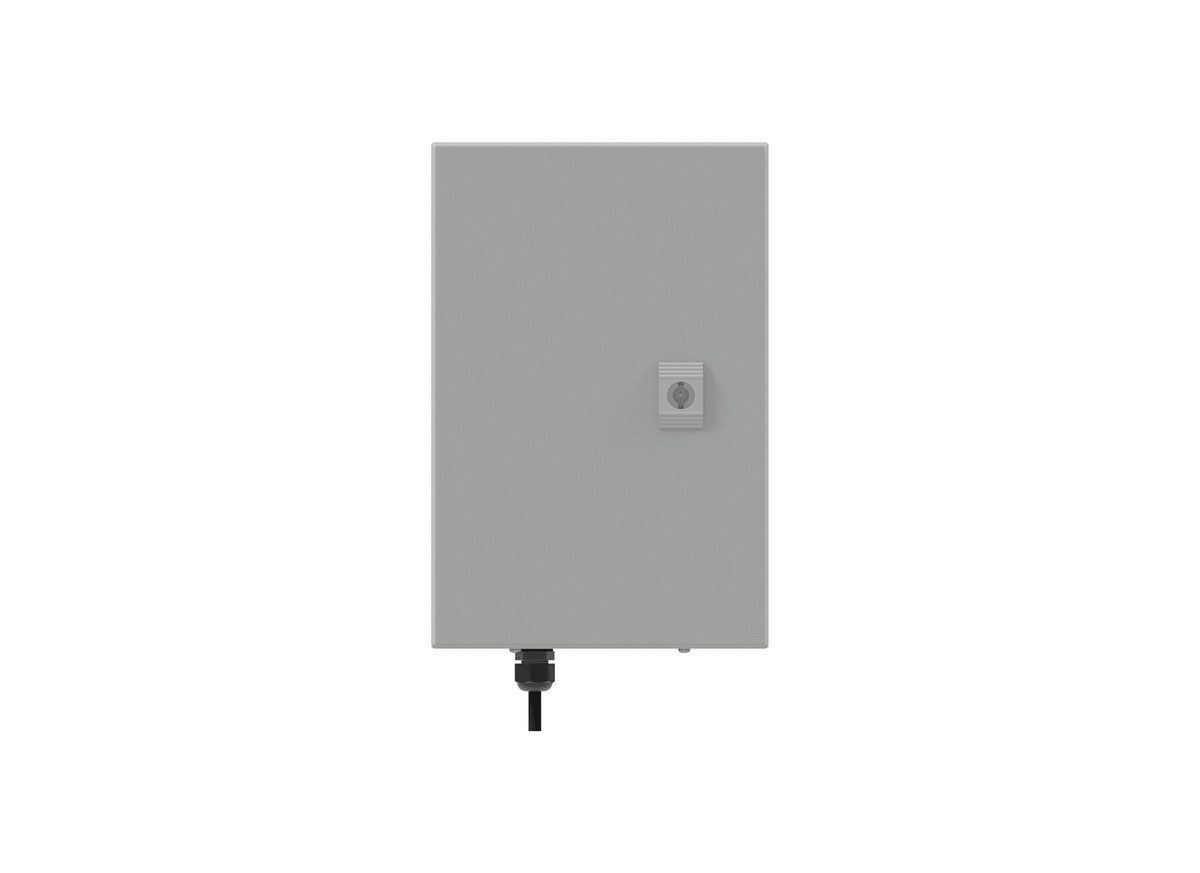

The unit is housed in a 300 x 200 x 150 mm powder-coated mild steel enclosure rated at IP55 for outdoor installations. Power is supplied by an integrated 12Vdc solar regulator and battery storage system connected to an external solar panel, removing the need for mains electrical cabling.

The enclosure includes a removable bottom gland plate for segregated conduit entry, an external antenna, and mounting hardware for straightforward surface installation in remote fields or rural properties.

Features

• Powder-coated mild steel enclosure measuring 300 x 200 x 150 mm with IP55 rating
• Autonomous 12Vdc solar power configuration with internal battery storage and solar regulator
• Transmits digital switch signals wirelessly across a line-of-sight operational range of 500 meters
• Broadcasts regular 60-second signal bursts for consistent remote monitoring
• Digital 12Vdc input terminals for direct float switch or pressure switch connection
• Removable bottom gland plate providing organized entry for sensor and solar wiring
• Supplied complete with an external antenna, solar panel mounting hardware, and brackets
