MATelec FPC-13099 Bidirectional 900MHz Radio Communicator with 2 Analogue & 6 Digital I/O (3km)

Industrial water transfer facilities often require multi-channel, two-way telemetry to exchange digital commands and analogue sensor data simultaneously. The MATelec FPC-13099 Remote Signal Communicator is a bidirectional 900MHz radio telemetry system providing high-capacity signal transmission across distances up to 3 km line-of-sight without field cables.

The system operates a wireless link via Modbus RS-485 I/O modules and 900MHz transceivers. Each panel accommodates two 4-20mA analogue inputs and six digital 24Vdc inputs, replicating them at the opposite panel as two 4-20mA passive analogue outputs, six digital volt-free relays, and a radio link healthy fault contact.

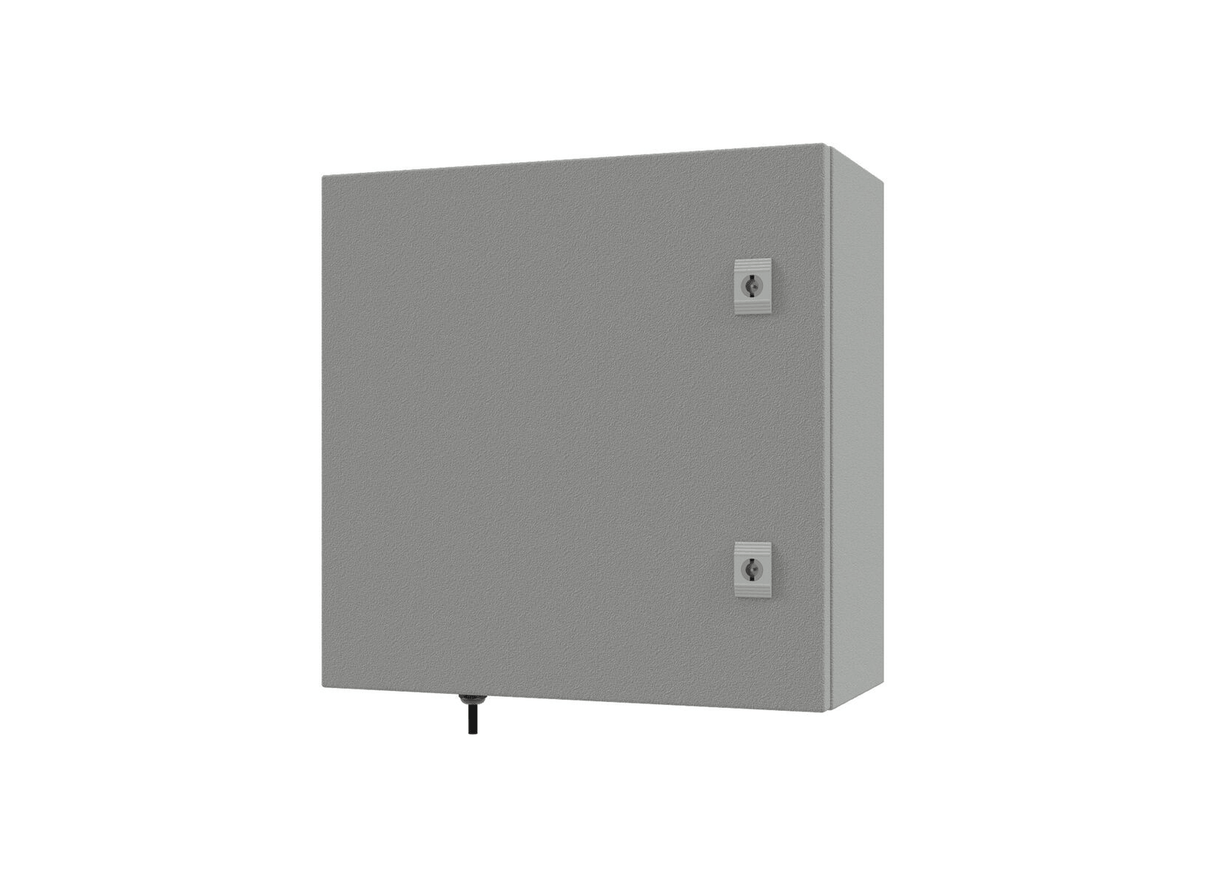

Both master and slave enclosures are built from powder-coated mild steel measuring 400 x 400 x 200 mm each, carrying an IP56 weatherproof protection rating. Both panels run on single-phase 230Vac mains supplies and feature front LED indicators displaying radio link status, signal strength, and fault diagnostics.

Removable bottom gland plates accommodate multi-cable entry on both panels. The complete package includes two IP56 enclosures, two 900MHz transceivers, two remote-mount high-gain antennas with 10 m cables, and two 1.5 m 10 Amp power leads.

Features

• Includes two matched powder-coated mild steel enclosures measuring 400 x 400 x 200 mm each
• IP56 weatherproof protection rating on both panels for demanding outdoor installations
• Bidirectional 900MHz radio telemetry transmitting 2 analogue and 6 digital signals both ways
• Long-range communication covering up to 3 km line-of-sight or 500 meters in urban settings
• Provides 2x 4-20mA passive outputs, 6x volt-free digital relays, and 1x radio link healthy relay
• Front door LED indicators displaying live radio link status, signal strength, and fault diagnostics
• Supplied with two remote-mount high-gain antennas with 10 m leads and two 1.5 m power cords
