MATelec FPC-15120 Fire Pump Remote Start/Stop Controller for 12V Single Pump

Dedicated manual operator stations allow fire service personnel to control and monitor a single pumping unit from a centralized facility location. The MATelec FPC-15120 Fire Pump Remote Start/Stop Controller provides single-pump manual command and running confirmation for installations utilizing 12V fire system electrical architectures.

Control signaling functions via volt-free start and stop contact outputs connected to the main fire pump starter panel. Operators activate pump running or stopping via industrial push buttons fitted with padlockable clear covers, while an incoming 12V digital input energizes a front-mounted LED lamp to confirm active motor operation.

The station is housed in a 200 x 160 x 95 mm polycarbonate enclosure rated at IP54 for weatherproof mounting in plant entries, security rooms, or fire control centers. Internal wiring and terminal connections are designed for low-voltage 12V fire signal circuits.

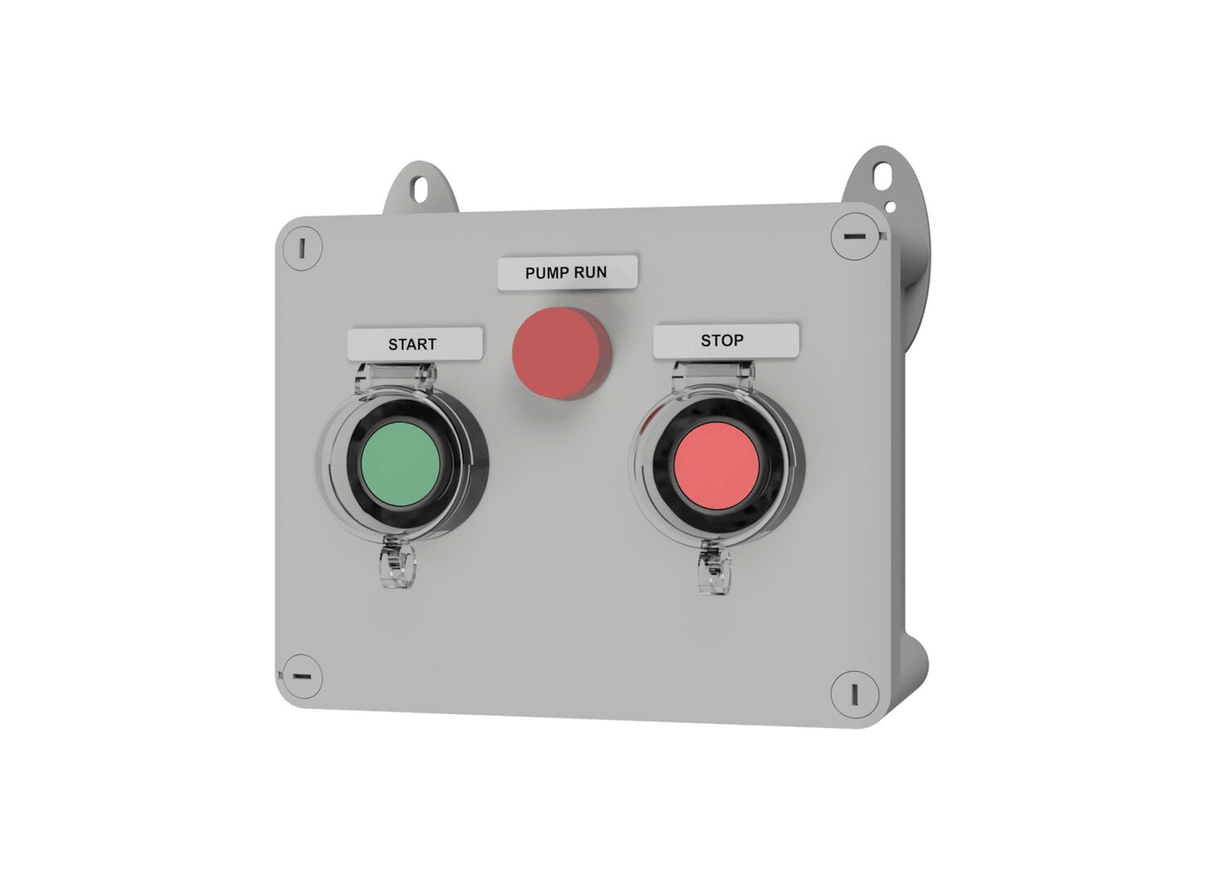

The front panel is laid out with labeled start and stop push buttons and a high-visibility running indicator light. Internal DIN-rail mounted terminals provide clear segregation for field control cables, and external mounting brackets enable straightforward surface wall installation.

Features

• Polycarbonate enclosure measuring 200 x 160 x 95 mm carrying an IP54 weatherproof rating
• Dedicated remote manual start and stop push buttons with padlockable clear covers for one pump
• High-visibility front-mounted indicator light confirming active single-pump run status
• Volt-free contact outputs for remote start and stop command signaling to main starter panels
• Digital 12V input circuitry for receiving pump operational run confirmation signals
• Low-voltage internal control design compatible with 12V fire system electrical architectures
• Molded external mounting brackets and DIN-rail terminals for straightforward installation
