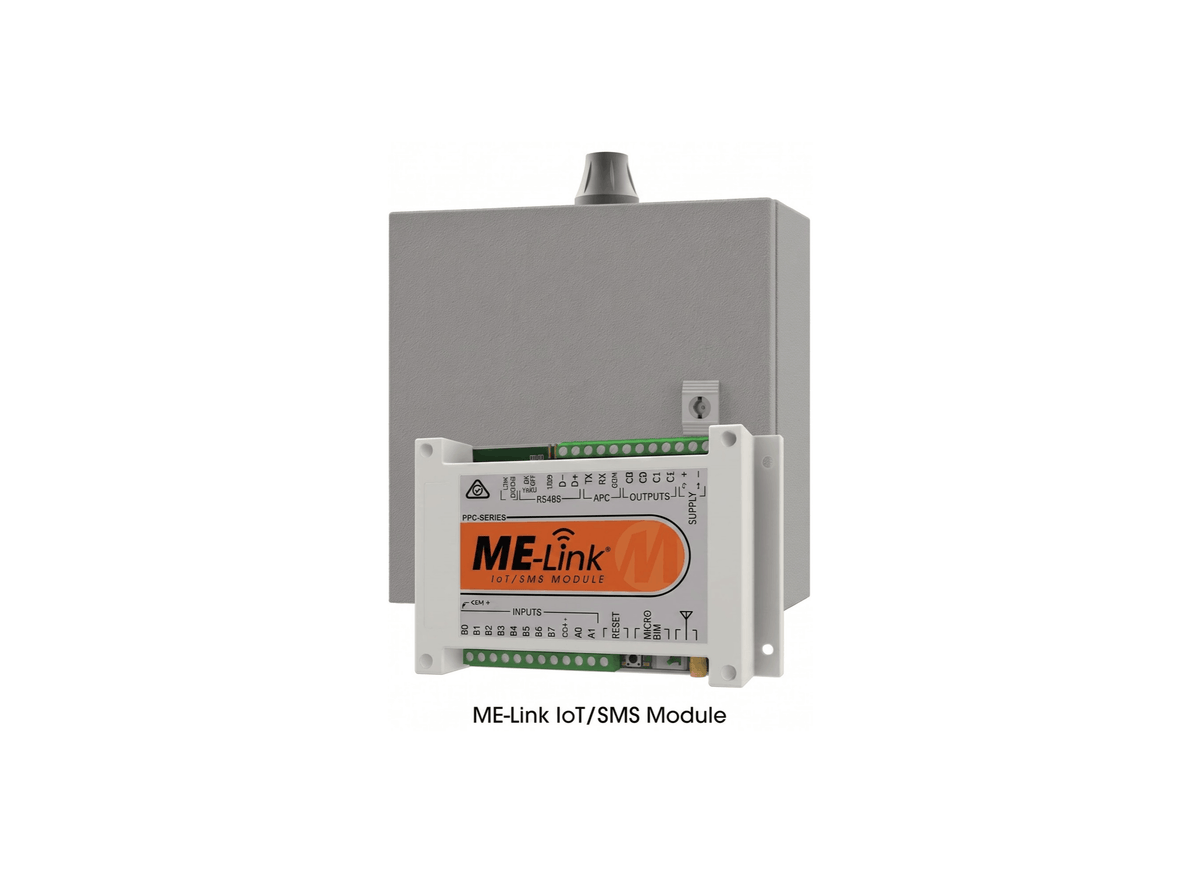

MATelec FPC-30121-IOT SMS & Cloud Communicator with CAT-M1 Propitect IoT, 6 Inputs & 2 Relays

Combining direct cellular SMS texting with browser-based cloud dashboards provides comprehensive visibility for critical water assets. The MATelec FPC-30121-IOT SMS Alarm and Status Communicator connects pump stations directly to the Propitect IoT platform while providing instant SMS messaging to mobile phones.

The unit monitors 6 digital 12Vdc inputs for pump run signals, fault trips, and level switches, streaming real-time telemetry to the Propitect cloud and sending SMS text alerts to up to 10 phonebook numbers during alarm events. Two onboard relay outputs allow operators to trigger remote equipment start/stop or system resets via cloud commands or SMS messages.

Built into a 300 x 300 x 150 mm powder-coated mild steel enclosure with an IP54 rating, the unit connects to a 230Vac single-phase power supply. An internal rechargeable battery backup system provides live telemetry transmission and power failure alerting during electrical outages.

The panel features DIN-rail mounted terminal connections, a removable bottom gland plate, a low-profile vandal-resistant antenna, and a factory-fitted 10 Amp 3-pin 1.5 m power lead.

Features

• IP54 rated powder-coated mild steel enclosure with dimensions of 300 x 300 x 150 mm
• ME-Link IoT CAT-M1 cellular modem connected to the Propitect cloud monitoring platform
• Six digital 12Vdc inputs for comprehensive control panel fault and water level monitoring
• Dispatches real-time SMS alarm notifications to up to 10 authorized mobile phone numbers
• Two remote-controllable relay outputs operable via cloud dashboard interface or SMS commands
• Integrated battery backup system providing alerting during mains power failure
• Supplied with a vandal-resistant antenna, DIN-rail wiring terminals, and a 1.5 m 10 Amp power lead
