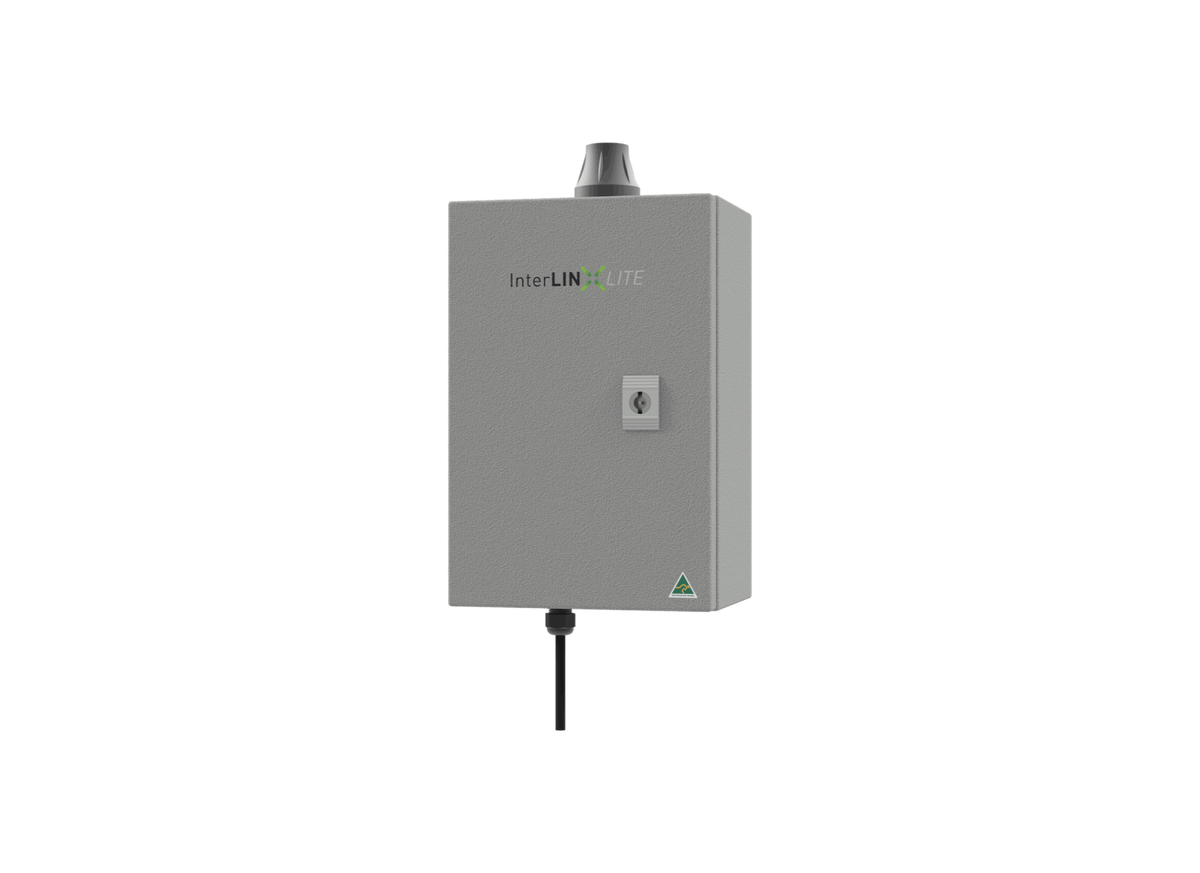

MATelec FPC-30126-ME InterLINX WiFi IoT Communicator with RS-485 Modbus & 5A Relay (IP65 Metal)

Outdoor pump installations located within local Wi-Fi coverage can stream operational diagnostics to cloud dashboards without ongoing cellular SIM subscriptions. The MATelec FPC-30126-ME InterLINX WiFi IoT Communicator connects commercial pump controllers to the Propitect cloud platform over 2.4GHz Wi-Fi within a metal enclosure.

The unit features a Modbus RTU RS-485 port pre-mapped for MATelec pump controllers, retrieving multi-pump run hours, start counts, and active fault codes. In addition, two digital inputs (B0 and B1) support high-speed pulse counting for flowrate calculation, and a 250Vac 5A changeover relay allows remote equipment switching via the Propitect dashboard.

Powered by a 230Vac single-phase supply via an attached 1.5 m cable with a 10A plug, the communicator is housed in a 200 mm W x 300 mm H x 150 mm D powder-coated mild steel enclosure rated at IP65 for outdoor weatherproof installations.

The panel features a top-mounted, sealed vandal and weather-resistant antenna connected via an SMA port. Configuration is managed wirelessly via an internal Wi-Fi hotspot and web browser interface without requiring specialized software.

Features

• Powder-coated mild steel enclosure measuring 200 mm W x 300 mm H x 150 mm D with IP65 rating
• Connects to local 2.4GHz Wi-Fi networks for direct integration with the Propitect IoT platform
• Modbus RTU RS-485 interface with pre-configured registers for MATelec pump controller telemetry
• Two digital inputs configurable as high-speed pulse counters for flow calculation and volume alarms
• One 250Vac 5A changeover relay output controllable remotely through the Propitect cloud dashboard
• Supplied with a top-mounted low-profile sealed vandal and weather-resistant external antenna
• Includes a pre-fitted 1.5 m power supply cable with standard 10 Amp 3-pin Australian plug
